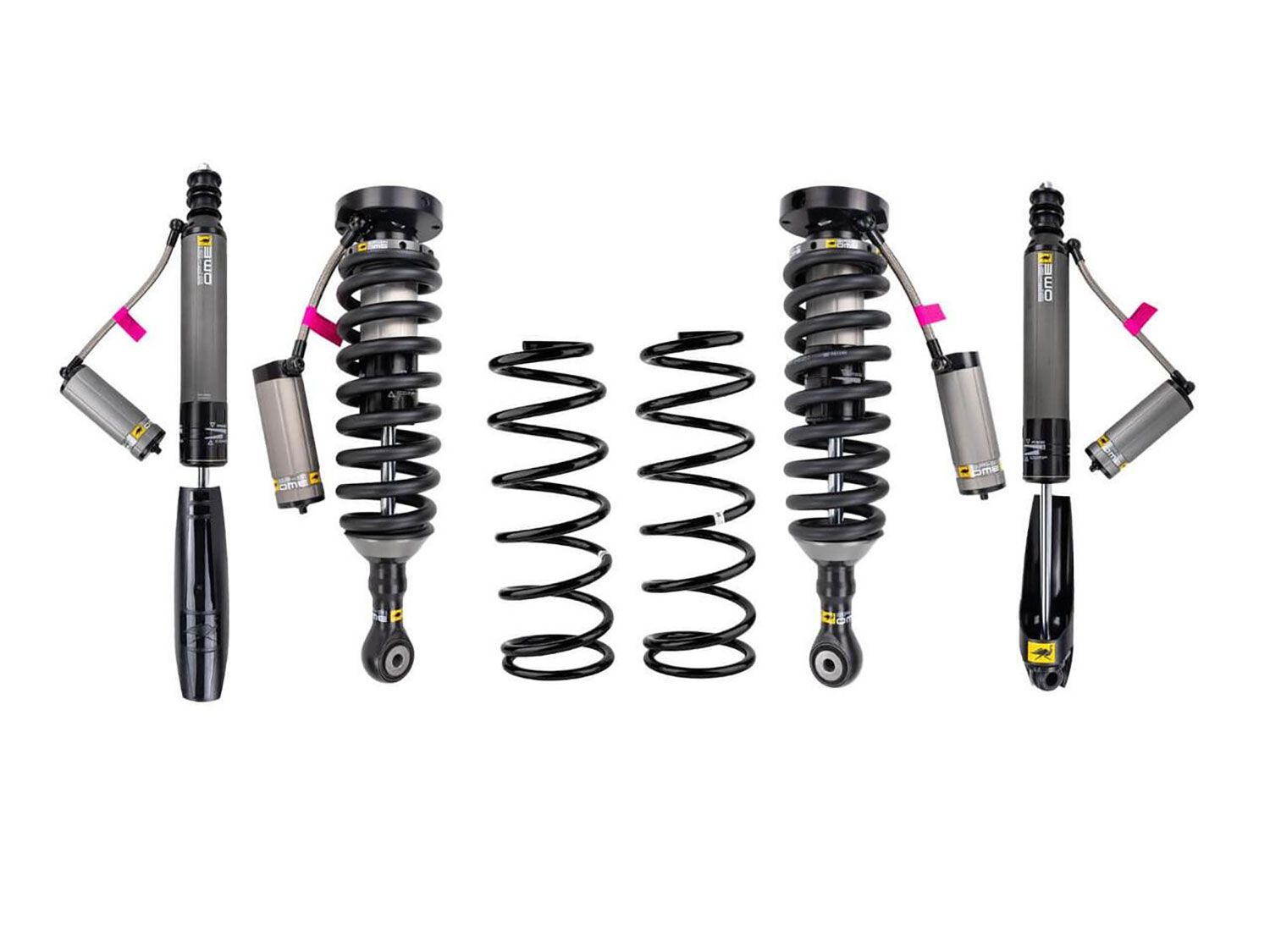

3" 2022-2026 Toyota Tundra Lift Kit w/BP-51 Coilovers & Rear BP-51 Shocks by Old Man Emu

The Old Man Emu 3203K / 3204K 3" Lift Kit for the Toyota Tundra is a fully engineered, vehicle-specific suspension upgrade designed to deliver exceptional ride quality, control, and durability—both on the road and across demanding off-road terrain. Tuned for Tundras equipped with 0–330 lbs of additional front weight, this system provides approximately 3 inches of front lift and 2 inches of rear lift, improving stance, clearance, and overall capability.

At the heart of this kit are the premium Old Man Emu BP-51 shocks—high-performance, user-adjustable internal bypass dampers that offer class-leading suspension control. With 10 levels of compression adjustment and 10 levels of rebound adjustment, the BP-51 system allows precise on-vehicle tuning to perfectly match your driving style, road conditions, or added load.

The BP-51’s internal bypass design offers position-sensitive damping, ensuring a smooth, controlled ride during normal driving while delivering increased damping force through the ends of the shock stroke to manage large impacts and rough terrain with ease. Built from 6061-grade aluminum with a Type III hard-anodized finish, the dampers provide superior heat dissipation, corrosion resistance, and long-term durability. Remote-mounted oil reservoirs increase oil volume for improved cooling and consistent performance during extended off-road use. Designed as a direct replacement for OE and aftermarket suspension components, the Old Man Emu 3203K kit installs cleanly and transforms the Tundra’s ride quality, stability, and off-road performance. Whether you’re carrying extra gear, exploring rugged trails, or simply upgrading your daily ride, this suspension system delivers premium control and comfort in every condition.

BP-51 Shock Absorbers:

The heart of this suspension system is the Old Man Emu BP-51 shock absorber—ARB’s premium internal bypass shock engineered for exceptional comfort, control, and adjustability. Designed in-house and tuned for each vehicle, the BP-51 installs using factory mounting points with no modifications required. Unlike most adjustable shocks, it offers on-vehicle, independent compression and rebound tuning, allowing you to tailor ride quality for any terrain or load. The BP-51’s position-sensitive bypass design provides a smooth, compliant ride during everyday driving while delivering increased damping and bottom-out control in rough terrain. Bypass passages allow fluid to move around the piston during normal travel, then automatically increase resistance as the shock nears full compression or extension—preventing harsh impacts and improving off-road stability.

Built from 6061-grade aluminum with a Type III hard-anodized finish, the BP-51 dissipates heat efficiently and resists corrosion. A remote reservoir boosts oil capacity for better cooling, while high-temperature Teflon hoses and large Teflon-lined spherical bearings ensure durability and smooth articulation. Every component—from the X5K coil spring to the hard-chromed piston shaft—is engineered for long life and high performance.

Features and Benefits:

• Provides approximately 3" of front lift for Tundras carrying 0–330 lbs of added weight
• Delivers 2" of rear lift for improved stance and ground clearance
• Includes Old Man Emu BP-51 internal bypass coilovers and shocks
• Offers 10 levels of compression and 10 levels of rebound adjustment
• Internal bypass design provides position-sensitive damping for smoother control on and off-road
• Remote-mounted reservoirs increase oil volume for improved cooling and consistent performance
• 6061-grade aluminum shock bodies with Type III hard-anodized finish for enhanced heat dissipation and corrosion resistance
• Direct replacement for OE or aftermarket suspension components
• Tuned specifically for the Toyota Tundra to enhance ride comfort, stability, and off-road capability
• Engineered for long-term durability and reliable performance in demanding conditions

Included In This Kit:
