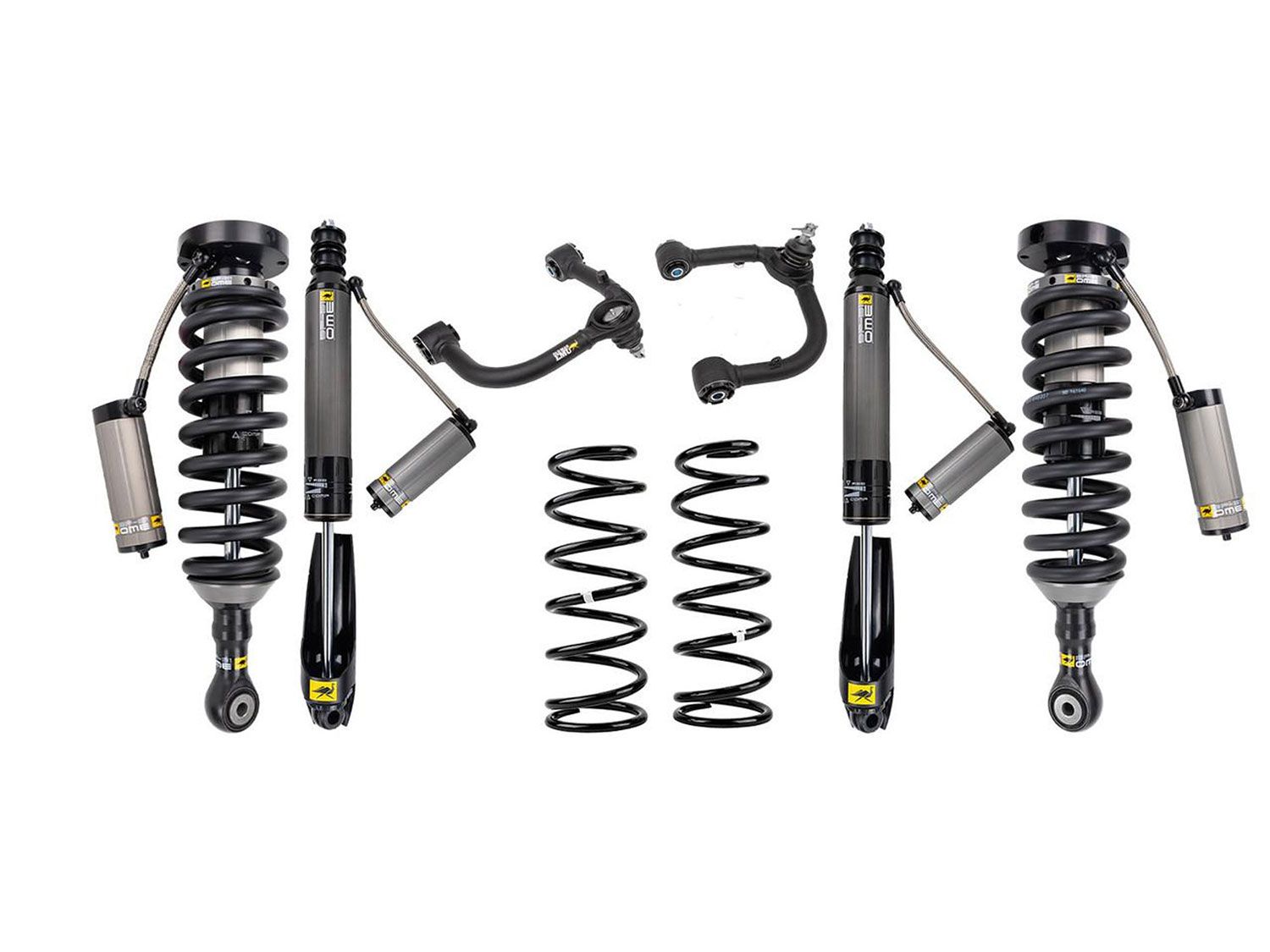

3" 2022-2026 Toyota Tundra - Lift Kit w/BP-51 Coilovers & Upper Control Arms by Old Man Emu

Old Man Emu's 3206K / 3207K is designed specifically for the Toyota Tundra. This suspension lift kit is tuned and matched specifically to support 0–330 lbs of added front weight and 0 to 440 lbs of rear load, providing approximately 3 inches of lift in the front and 2 inches in the rear. The kit includes upgraded upper control arms and features Old Man Emu’s premium BP-51 shocks—a user-adjustable internal bypass shock absorber designed with the latest off-road technology.

BP-51 shocks offer 10 levels of compression adjustment and 10 levels of rebound adjustment, allowing precise on-vehicle tuning for different terrains or loads. Their internal bypass architecture delivers position-sensitive damping for exceptional ride quality on the road and maximum control off-road. A remote-mounted reservoir increases oil capacity for improved cooling and sustained performance during extended off-road use, while the 6061-grade aluminum shock body with Type III hard anodizing ensures superior durability, heat dissipation, and corrosion resistance. For Tundra owners seeking a true performance suspension solution—not just a lift kit—this Old Man Emu kit provides unmatched tuning capability, improved load handling, and a more refined driving experience over any terrain.

BP-51 Shock Absorbers:

The heart of this suspension system is the Old Man Emu BP-51 shock absorber—ARB’s premium internal bypass shock engineered for exceptional comfort, control, and adjustability. Designed in-house and tuned for each vehicle, the BP-51 installs using factory mounting points with no modifications required. Unlike most adjustable shocks, it offers on-vehicle, independent compression and rebound tuning, allowing you to tailor ride quality for any terrain or load. The BP-51’s position-sensitive bypass design provides a smooth, compliant ride during everyday driving while delivering increased damping and bottom-out control in rough terrain. Bypass passages allow fluid to move around the piston during normal travel, then automatically increase resistance as the shock nears full compression or extension—preventing harsh impacts and improving off-road stability.

Built from 6061-grade aluminum with a Type III hard-anodized finish, the BP-51 dissipates heat efficiently and resists corrosion. A remote reservoir boosts oil capacity for better cooling, while high-temperature Teflon hoses and large Teflon-lined spherical bearings ensure durability and smooth articulation. Every component—from the X5K coil spring to the hard-chromed piston shaft—is engineered for long life and high performance.

Features and Benefits:

• Tuned and matched suspension system designed specifically for the Toyota Tundra
• Provides approximately 3" front lift (0–330 lbs accessory weight) and 2" rear lift (0 to 440 lbs load)
• Includes upgraded upper control arms for improved geometry and durability
• Old Man Emu BP-51 coilovers and shocks for premium performance
• User-adjustable internal bypass shocks with 10 compression and 10 rebound settings
• Position-sensitive damping for superior comfort on-road and enhanced control off-road
• Remote-mounted reservoirs increase oil capacity for improved cooling and sustained performance
• 6061-grade aluminum shock body with Type III hard anodized finish for heat dissipation and corrosion resistance
• Engineered to prevent suspension sag when adding heavy aftermarket accessories
• Direct replacement for factory and aftermarket suspension systems

Included In This Kit:
