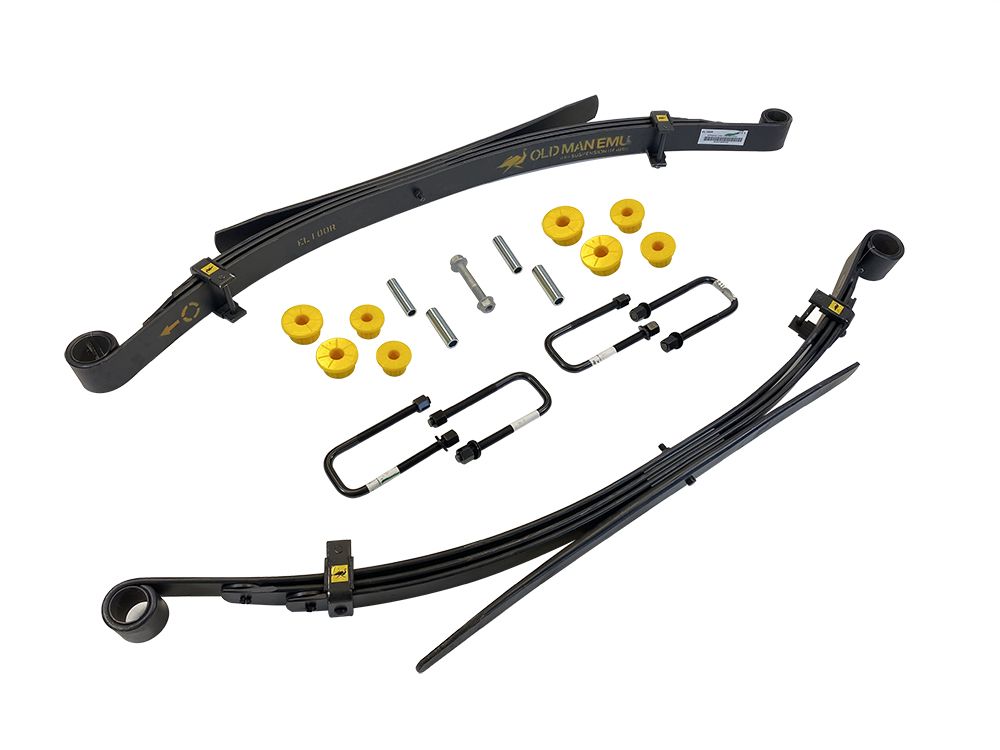

Chevy 2015-2020 Colorado 4WD - Rear 1" Lift Leaf Spring Set by Old Man Emu

$568.36

Brand: Old Man Emu | SKU: EL100R-001



free shipping truck  TRUCK FREIGHT ITEM
shipping charges apply, why we ship this via truck



- +
paypal
expert
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
icon
icon
icon
icon
icon
icon
Product Overview
More Information
Description

This complete set of Old Man Emu EL100R Emu Dakar rear leaf springs for the Chevy Colorado includes driver side and passenger side leaf springs, polyurethane bushings and rear u-bolts. These springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature packed, a set of Emu Dakar leaf springs will deliver vastly improved ride, handling and load carrying capability.

Top Features

  • LIft Amounts: 1 inch rear lift
  • Load: Designed for medium load
  • Bushings: Polyurethane
  • Draw tapered and diamond cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
  • Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
  • Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set' which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
  • Military wrap: Designed to provide added safety.
  • Anti friction pads: Greasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
  • Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
  • Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
  • Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

Items Included

  • (2) EL100R Old Man Emu Rear Springs
  • (2) OMESB116 Old Man Emu Rear Bushings Kits (8 total bushings, 4 sleeves)
  • (1) OMEFK91 Old Man Emu Fixed Spring Eye Bolt (Driver side front)
  • (4) U4039 Zone Rear Ubolts w/hardare

Installation Instructions

EL100R Instructions / Info Sheet

Important Notes Note: A bolt to replace the front driver side spring eye bolt is included. Because of clearance issues related to the fuel tank it is recommended to cut the factory bolt. It is much quicker and easier to cut off the original bolt and fit the FK91 bolt rather than removing the fuel tank.
Manufacturer Old Man Emu
Manufacturer Part Number EL100R-001
Item Number ome_el100r-001
Make Chevy
Model Colorado
Year Spans 2015,2016,2017,2018,2019,2020
Lift Height 1 inch
2WD/4WD 4WD
Product Type Leaf Spring
Front/Rear Rear
