Canyon 2015-2022 GMC 4WD - Rear 1" Lift Dakar Leaf Spring Set by Old Man Emu

Brand: Old Man Emu | SKU: EL100R-001
$703.95

Canyon 2015-2022 GMC 4WD - Rear 1" Lift Dakar Leaf Spring Set by Old Man Emu

Brand: Old Man Emu | SKU: EL100R-001
$703.95


free shipping truck PREMIUM FREIGHT ITEM
A $99.95 freight and processing fee applies, what is premium freight

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This complete set of EL100R Old Man Emu Dakar rear leaf springs for the GMC Canyon includes driver side and passenger side leaf springs, polyurethane bushings and rear u-bolts. These springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature packed, a set of Emu Dakar leaf springs will deliver vastly improved ride, handling and load carrying capability.

Top Features

  • LIft Amounts: 1 inch rear lift
  • Load: Designed for medium load
  • Bushings: Polyurethane
  • Draw tapered and diamond cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
  • Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
  • Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set' which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
  • Military wrap: Designed to provide added safety.
  • Anti friction pads: Greasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
  • Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
  • Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
  • Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

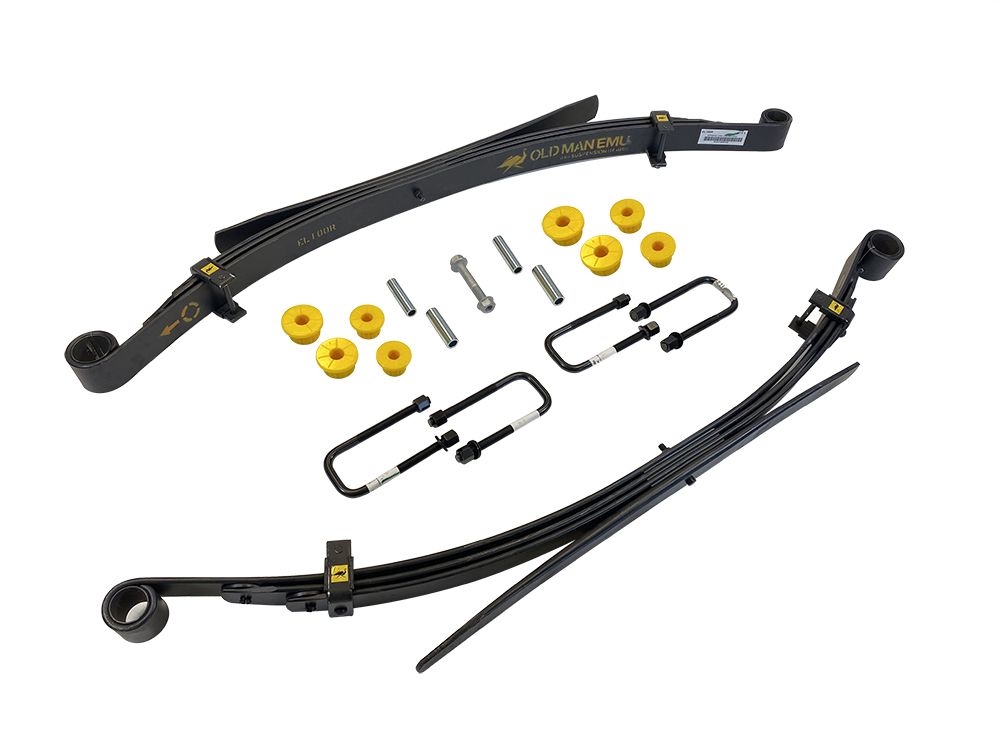

Items Included

  • (2) EL100R Old Man Emu Rear Springs
  • (2) OMESB116 Old Man Emu Rear Bushings Kits (8 total bushings, 4 sleeves)
  • (1) OMEFK91 Old Man Emu Fixed Spring Eye Bolt
  • (4) U4039 Zone Rear Ubolts w/hardare

Installation Instructions

EL100R Instructions / Info Sheet

Product Highlights

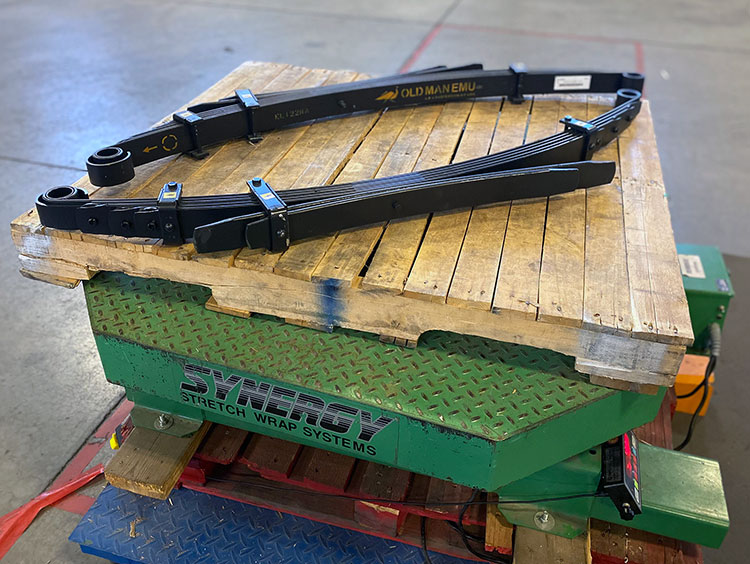

Most Competitors Springs on Arrival
Most companies selling leaf springs will not use a box for shipping. They apply a label and hope for the best. Sure, you can spray paint your damaged springs, but the powder coating that is applied to most leaf springs from the manufacturer is designed for lasting durability, the spray paint from the local auto store is not.

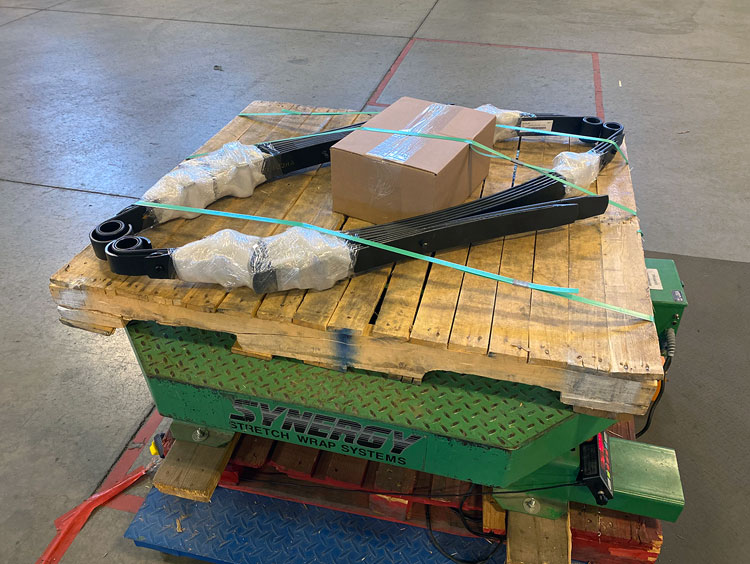

Jack-it Premium Freight Box
At Jack-it we have engineered a premium freight shipping system that utilizes a specially designed heavy gauge box, multiple straps to secure the springs within the box, along with high-density foam pads that keep the springs stable and protected.

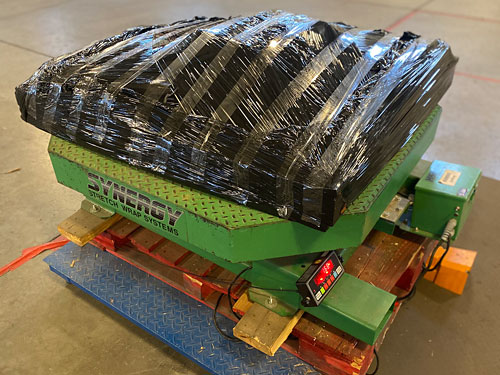

Jack-it Premium Ready to Ship
The Jack-it Premium Freight boxes ready to ship. We strongly feel that our customers would prefer their products to arrive in good condition instead of something that looks like they were dropped from a 2 story building.
Important NotesNote: A bolt to replace the front driver side spring eye bolt is included. Because of clearance issues related to the fuel tank it is recommended to cut the factory bolt. It is much quicker and easier to cut off the original bolt and fit the FK91 bolt rather than removing the fuel tank.
Vehicle Fitment
MakeGMC
ModelCanyon
Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerOld Man Emu
Manufacturer Part NumberEL100R-001
Item Numberome_el100r-001
Product LineLeaf Spring Set
Lift Height1 inch
Front/RearRear
