Ranger 2019-2020 Ford 4WD - Rear 1.5" Lift Leaf Spring Set by Old Man Emu


Brand: Old Man Emu | SKU: EL120-001


free shipping truck  TRUCK FREIGHT ITEM
shipping charges apply, why we ship this via truck


- +
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Product Overview
More Information

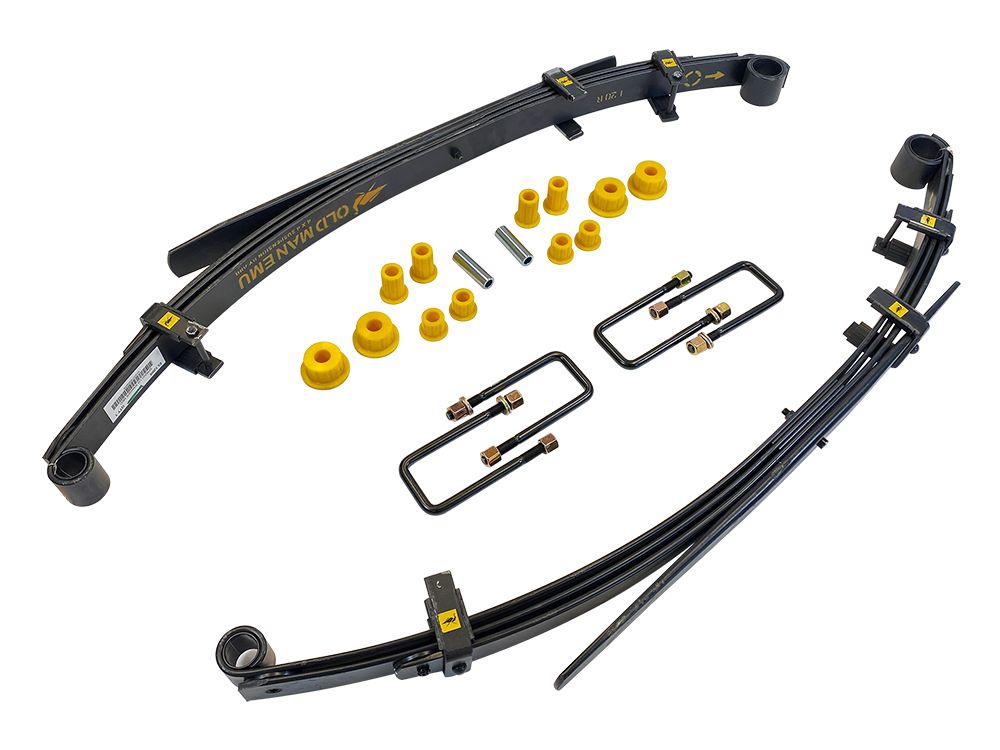

This complete set of Old Man Emu EL120R-001 Emu Dakar rear leaf springs for the Ford Ranger includes driver side and passenger side leaf springs, polyurethane bushings and rear u-bolts. These springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature packed, a set of Emu Dakar leaf springs will deliver vastly improved ride, handling and load carrying capability.

Top Features

  • LIft Amounts: 1.5 inch lift
  • Load: Designed for medium load
  • Bushings: Polyurethane
  • Draw tapered and diamond cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
  • Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
  • Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set' which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
  • Military wrap: Designed to provide added safety.
  • Anti friction pads: Greasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
  • Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
  • Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
  • Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

Items Included

  • (2) EL120R Old Man Emu Rear Springs
  • (2) SB117 Old Man Emu Rear Bushings Kits (8 total bushings, 2 sleeves)
  • (4) U81 Old Man Emu Rear Ubolts w/hardare
Manufacturer Old Man Emu
Manufacturer Part Number EL120R-001
Item Number ome_el120r-001
Make Ford
Model Ranger
Year Spans 2019,2020
Lift Height 1 inch
Product Type Leaf Spring
Front/Rear Rear
