Tacoma 1998-2004 Toyota 4WD Xtra Cab & Double Cab - Rear 2.25" Lift Dakar Leaf Spring Set by Old Man Emu Brand: Old Man Emu | SKU: EL122RA-RB
$577.95
- +
577.95

Tacoma 1998-2004 Toyota 4WD Xtra Cab & Double Cab - Rear 2.25" Lift Dakar Leaf Spring Set by Old Man Emu

Brand: Old Man Emu | SKU: EL122RA-RB
$577.95



free shipping truck PREMIUM FREIGHT ITEM
A $99.95 freight and processing fee applies, why we ship this via truck

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

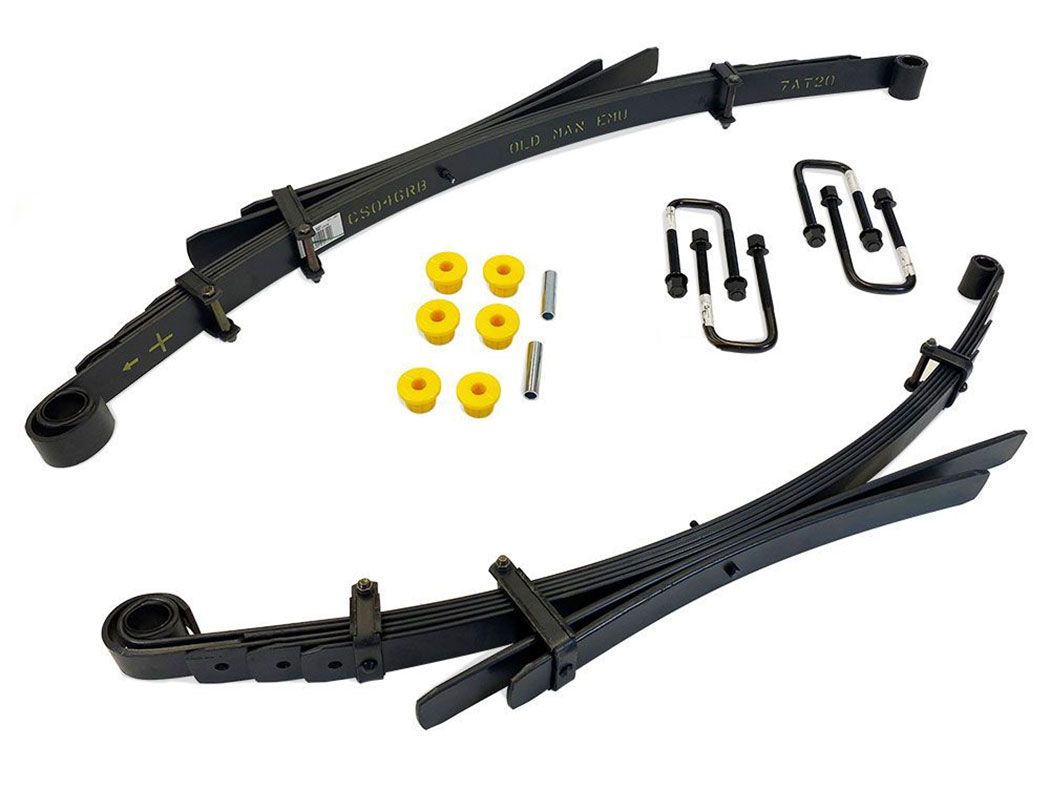

This complete set of Old Man Emu EL122RA-RB Emu Dakar rear leaf springs for the Toyota Tacoma includes driver side and passenger side leaf springs, polyurethane bushings and rear u-bolts. These springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Feature packed, a set of Emu Dakar leaf springs will deliver vastly improved ride, handling and load carrying capability.

Top Features

  • LIft Amounts: 2.25 inch lift
  • Load: Designed for medium load
  • Draw tapered and diamond cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
  • Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
  • Fully scragged and load tested: Scragging ensures the spring takes a permanent 'set' which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
  • Military wrap: Designed to provide added safety.
  • Anti friction pads: Grazeable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
  • Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
  • Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
  • Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

Items Included

  • (1) EL122RB Old Man Emu Rear Spring (Right Side)
  • (1) EL122RA Old Man Emu Rear Spring (Left Side)
  • (2) OMESB121 Old Man Emu Rear Bushings Kits (4 total bushings, 2 sleeves)
  • (4) Rear Ubolts w/hardware

Note: Bushings and sleeves come pre-pressed into one end of leaf springs.  Replaces old part # CS046RA-RB.

Product Highlights

Premium Freight - Step 1
Wood pallets are used for a solid base to easily load and move the product.
Premium Freight - Step 2
Products are banded to the pallet to insure all items are secured into place.
Premium Freight - Step 3
Pallet is fully shrink wrapped to protect items while being transported to customers.
Important Notes- Tail pipe relocation is usually required or strongly recommended. Part # OME FK21 (see related products below).

- Premium Truck Freight Advantages - We ship this leaf spring set via truck freight to insure your order arrives in the best possible condition. Nearly all competitors will ship leaf springs with no box or packaging via a standard courier like Fedex or UPS. Products will usually arrive in poor condition. At Jack-it we prefer to pallet, band and wrap most of our larger shippments, including leaf springs. While we cannot offer this service for free we feel the saying "you get what you pay for" certainly applies.

Vehicle Fitment
MakeToyota
ModelTacoma
Year Fitment2004, 2003, 2002, 2001, 2000, 1999, 1998
2WD/4WD4WD
Tech Specs
ManufacturerOld Man Emu
Manufacturer Part NumberEL122RA-RB
Item Numberome_el122ra-rb
Product LineLeaf Spring Set
Lift Height2 inch
Front/RearRear
