4" 2015-2021 Toyota Tundra TRD Pro Lift Kit by ReadyLift

Brand: ReadyLift | SKU: 44-5640

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Quick Overview:

  • TRD Pro Plus 4" Lift Kit System.
  • Tundra TRD PRO Only
  • 2wd/4wd.
  • Made in USA.
  • Allows for up to 35" tall tires.
  • Retains use of both front and rear factory Bilstein shocks
  • Install time: approx 6-10 hours.
  • Retain stock turning radius.
  • Allows for use of stock wheels.

TRD Pro Plus 4 Complete Lift Kit! ReadyLIFT 4" Lift Kit Available For 2015-21 Toyota Tundra TRD Pro Trucks! ReadyLIFT delivers a great Pro Plus 4 lift kit that will provide 4" of front lift to TRD Pro Tundra trucks that come factory with 2" of front lift. That equals the same height as our 6" lift kit on a standard Tundra. And even better, this kit allows you to retain use of the factory Bilstein coil-overs and reservoir rear shocks! That's right, this great new system retains use of ALL of the factory TRD Pro suspension components.

The 44-5640 Pro Plus 4 inch lift kit for Tundra TRD Pro trucks is packed full of the same great features found in our standard Tundra 6" lift kit! Starting with our ultra strong laser cut, CNC bent, welded and boxed sub frame drop assemblies that not only keep your suspension geometry where it is suppose to be, but also increase your ground clearance 2 inches over the competition! Our unique and precision-designed iron knuckles feature CNC machining to guarantee precise fit while allowing for retention of the factory tie rods. That means no cutting or replacing your tie rods - ever! The 4 inches of lift is created by our innovative and industry-leading offset top mount spacer design. These strong steel spacers attach to the factory Bilstein coilover/strut - resulting in a factory ride - while positioning the suspension in such a way as to not increase track width. What does that mean? It means your front tires won't stick out further than your rear tires like with other kits. AND it means you can run your stock wheels with stock tires and use your spare tire if needed. That is some serious added value for you!

Our sub assembly design features a truly innovative approach to dropping the differential. Our diff drop kit is engineered for easy installation - easiest on the market - and correctly positions the differential to maintain great CV axle and driveline angles. This kit has been engineered around developing and offering a top quality lift solution for Tundra TRD Pro owners. We sought to correct so many of the issues that exist with other Tundra lift kits on the market. With our 44-5640 Pro Plus 4" lift kit you can rest assured you will not be wearing out those tires. Our system is built around maintaining correct alignment and geometry specifications. That is something both you and your installer will love! For the rear this kit includes our time-tested OEM-style cast iron rear lift blocks and longer u-bolts with hardware. Additionally, we also include bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory position. And to keep you driving on those high-quality Bilstein reservoir shocks, we include our popular shock stem extensions that extend the installed length of the shock without altering the compressed and extended length. All of this contributes to an excellent driving and handling suspension system that truly compliments your Tundra TRD Pro truck!

How big of a tire can you run? We recommend 35" as the maximum on a 9" wheel with a +25 offset for the least chance of rubbing. (Front mud flaps may need to be removed depending on the tread design of the tire.)

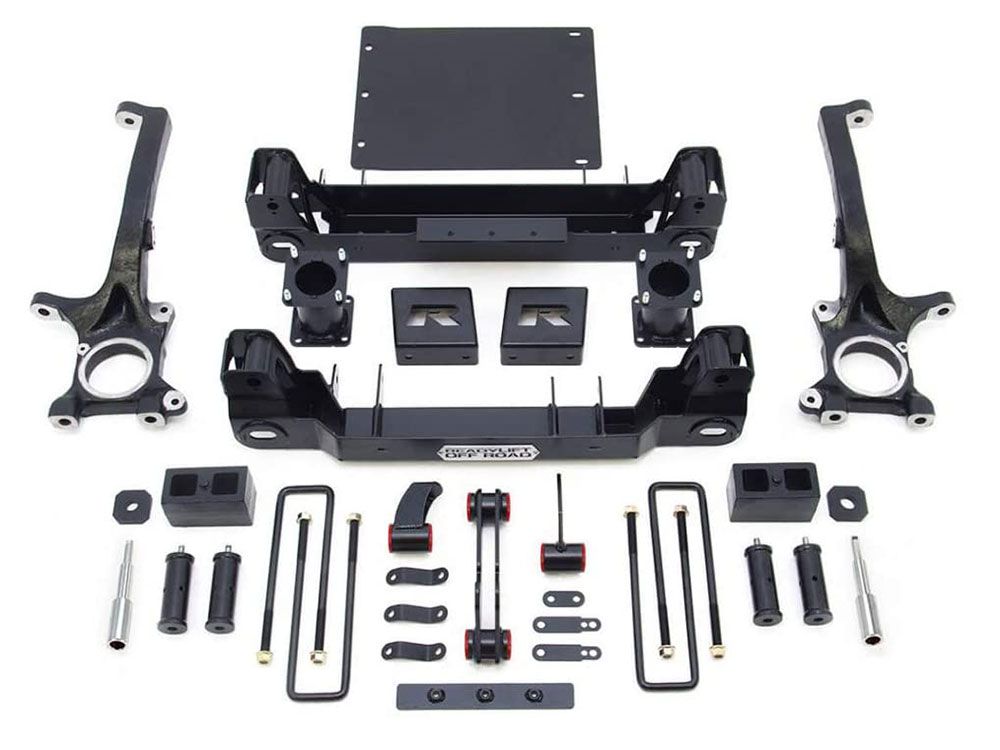

Kit Components:

  • (2) Iron Ductile Knuckles engineered to allow for use of the factory tie rods.
  • (2) top mount strut extensions
  • (2) laser cut and boxed steel dropped crossmembers
  • (2) sway bar drop spacers
  • (4) bump stop extensions
  • OEM style cast iron rear lift blocks with new u-bolts
  • Complete easy-to-install differential drop mount system
  • Skid Plate
  • (2) rear Bilstein shock stem extensions
Important NotesFor use only on Tundra TRD Pro w/ Bilstein/Fox coilover shocks
Will not work with the TRD rear swar bar option.
Factory Wheels - This system will only work with factory 20" wheels - Will not work with factory 18" wheels. Properly sized aftermarket wheels okay.
Vehicle Fitment
Year Fitment2021, 2020, 2019, 2018, 2017, 2016, 2015
Tech Specs
Manufacturer Part Number44-5640
Item Numberrlp_44-5640
Product LineLift Kits
Lift Height4 inch
