Ford F250 / F350 SuperDuty 2005-2012.5 High Steer Knuckle (driver side) by Reid Racing

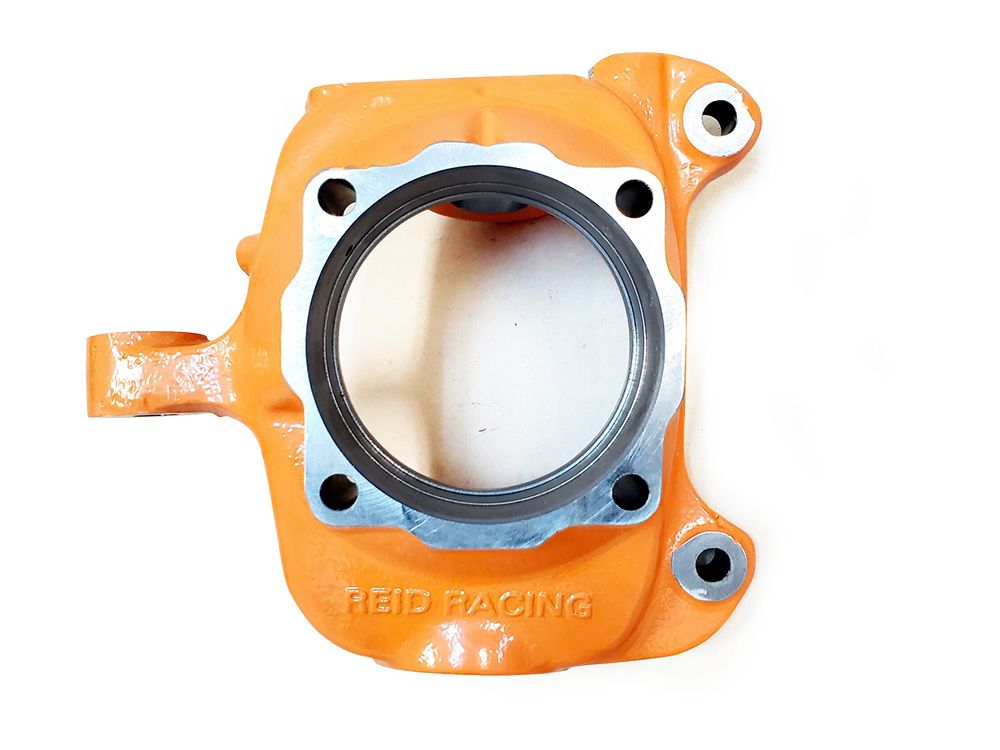

This Reid Racing D60002FL steering knuckle is ideal for Ford SuperDuty high steer / crossover steering setups.  Reid Racing heavy duty knuckles are made from high strength ductule iron using extra material and ribbing.

Top Features & Benefits

• Premium knuckles for high steer / crossover steering setups
• For use with OEM 2005-2012½ SuperDuty ball joints, unit bearing, caliper, rotor, lockout hub, stub shaft, and U-joint
• Flat-top pad measures 4.5 inches higher than the cast-in steering arm’s top surface, and aftermarket steering arms of various heights can accommodate a wide range of suspension lifts
• Easy bolt-on installation with no machining required
• Antilock Brakes, Traction Control, Vacuum Hubs, and Electronic Stability Control systems are retained
• Cast from high-strength ductile iron and beefed up with extra material and ribbing
• Powdercoated orange for long-lasting corrosion resistance
• Does not fit “Super 60” 10-lug axles (F450 & F550)
• Cast-in steering arm is tapered from the top and bottom so the OEM steering linkage may be re-installed
• Dealer inquiries welcome.
• Knuckles for off road use only
• There is no warranty on this product

Installation Instructions

D60002F Instructions.pdf
