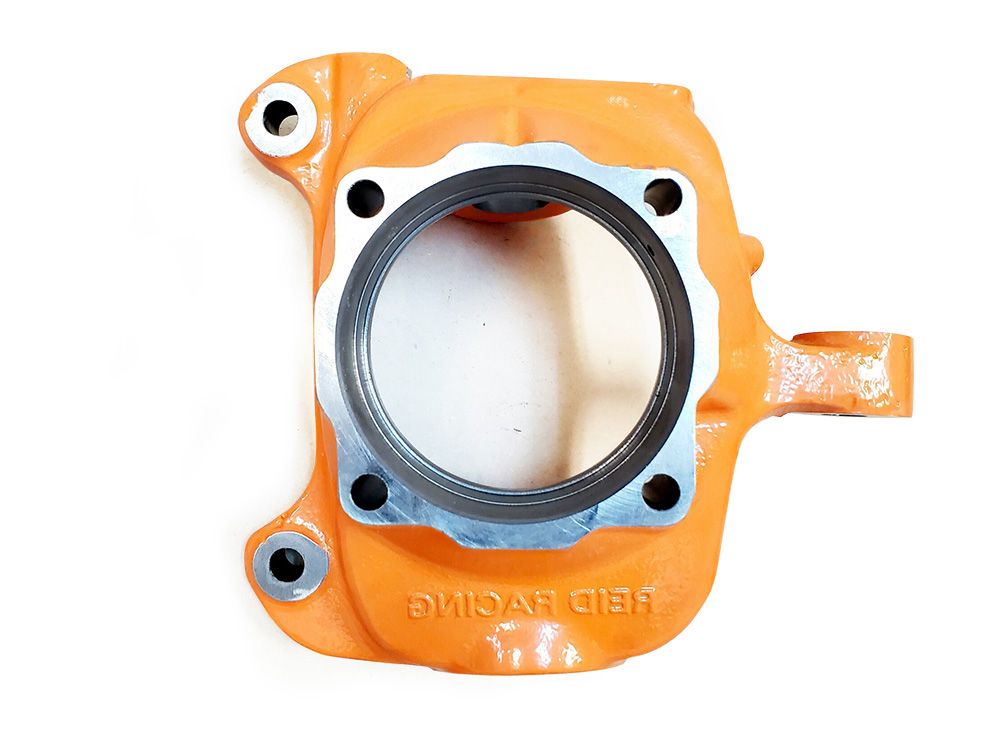

This Reid Racing D60002FR steering knuckle is ideal for Ford SuperDuty high steer / crossover steering setups. Reid Racing heavy duty knuckles are made from high strength ductule iron using extra material and ribbing.
Top Features & Benefits
Premium knuckles for high steer / crossover steering setups
For use with OEM 2005-2012½ SuperDuty ball joints, unit bearing, caliper, rotor, lockout hub, stub shaft, and U-joint
Flat-top pad measures 4.5 inches higher than the cast-in steering arm’s top surface, and aftermarket steering arms of various heights can accommodate a wide range of suspension lifts
Easy bolt-on installation with no machining required
Antilock Brakes, Traction Control, Vacuum Hubs, and Electronic Stability Control systems are retained
Cast from high-strength ductile iron and beefed up with extra material and ribbing
Powdercoated orange for long-lasting corrosion resistance
Does not fit “Super 60” 10-lug axles (F450 & F550)
Cast-in steering arm is tapered from the top and bottom so the OEM steering linkage may be re-installed
Important Notes1. Sold individually. Driver and Passenger sides are required for complete setup.
2. Ford changed the brakes on 2012½ and later SuperDuties so newer trucks must use Reid Racing D60003FL and D60003FR. 2005 to 2012.5 models use D60002FL annd D60002RL
