3.5-4" 2019-2024 GMC Sierra 1500 Lift Kit by Skyjacker

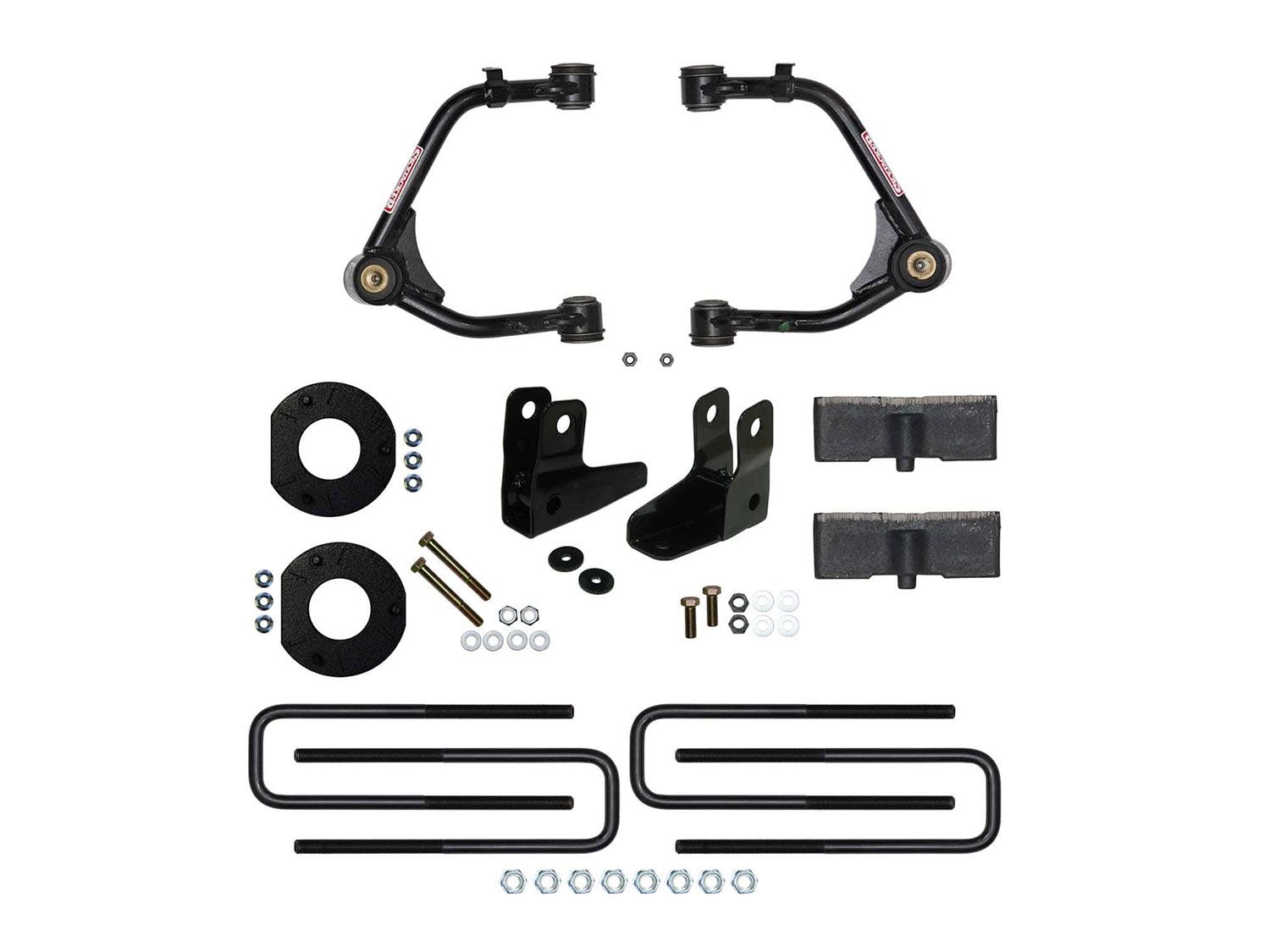

The Skyjacker C19350 3.5-Inch Suspension Lift Kit for 2019-2024 GMC Sierra 1500 trucks increases ride height, improves front suspension geometry, and adds clearance while retaining the factory front strut assemblies. Available for trucks equipped with either multi-leaf rear springs or mono-leaf single rear springs, this system combines heavy-duty upper control arms, one-piece front strut spacers, differential lowering spacers, 2-inch rear lift blocks, application-specific U-bolts, and supporting hardware. Multiple rear shock configurations are also available, allowing you to tailor the suspension package to ride quality, damping performance, and budget.

Heavy-duty Skyjacker replacement upper control arms are constructed from thick-wall DOM steel tubing and reinforced with welded gussets to increase rigidity in high-load areas. Precision-machined bushing eyelets and ball joint cups provide accurate component fitment, while steel-encased OEM-style rubber bushings help maintain controlled suspension movement with reduced noise and vibration. Greaseable ball joints improve serviceability and articulation, and built-in camber correction helps maintain proper front suspension geometry at the increased ride height. The upper control arms arrive preassembled and finished with a durable powder coating for added corrosion resistance.

One-piece top-mount strut spacers provide the front lift while allowing the factory struts to remain assembled. Their interlocking tab-and-slot construction creates a rigid mounting structure, while four differential lowering spacers reposition the front differential to improve CV axle and driveshaft operating angles after lifting. At the rear, 2-inch lift blocks raise the suspension to complement the front lift, with separate hardware configurations available for multi-leaf and mono-leaf rear spring trucks. This allows the C19350 system to accommodate both factory rear leaf-spring designs while maintaining the intended lifted stance.

Rear damping can be configured with Skyjacker ADX 2.0 Aluminum Remote Reservoir shocks, BlackMAX shocks, Hydro 7000 shocks, M95 shocks, Nitro 8000 shocks, or rear shock extension brackets. ADX 2.0 shocks use a 200 PSI gas-charged aluminum monotube design with an internal floating piston and remote reservoir for increased fluid capacity and consistent performance. M95 shocks also use a 200 PSI monotube IFP design, while Nitro 8000 shocks provide 150 PSI gas-charged damping. BlackMAX shocks feature a foam-cell hydraulic design, and Hydro 7000 shocks use velocity-sensitive hydraulic damping for smooth suspension control. With two rear leaf-spring configurations and six rear shock options, the C19350 can be configured to match a wide range of Silverado 1500 suspension and performance needs.

Features & Benefits

• Provides 3.5 inches of suspension lift for increased ground clearance and a more aggressive stance
• Designed for 2019-2024 GMC Sierra 1500 trucks
• Available for multi-leaf rear spring applications
• Available for mono-leaf single rear spring applications
• Heavy-duty replacement upper control arms constructed from thick-wall DOM steel tubing
• Welded control arm gussets increase strength and rigidity in high-load areas
• Built-in camber correction helps maintain proper suspension geometry at the increased ride height
• Precision-machined bushing eyelets and ball joint cups promote accurate component fitment
• Steel-encased OEM-style rubber bushings help maintain quiet and controlled suspension operation
• Greaseable upper control arm ball joints provide smooth articulation and improved serviceability
• Upper control arms arrive preassembled for easier installation
• Durable powder-coated finish provides added corrosion resistance
• One-piece top-mount strut spacers provide lift while retaining the factory front strut assemblies
• Front strut spacers install without requiring factory strut disassembly
• Interlocking tab-and-slot strut spacer construction provides a rigid mounting structure
• Four differential lowering spacers help improve CV axle and driveshaft operating angles
• 2-inch rear lift blocks complement the increased front ride height
• Application-specific rear U-bolts accommodate multi-leaf and mono-leaf rear suspension configurations
• Available with Skyjacker ADX 2.0 Aluminum Remote Reservoir shocks
• ADX 2.0 shocks feature a 200 PSI gas-charged aluminum monotube IFP design with remote reservoirs
• Available with Skyjacker BlackMAX foam-cell hydraulic shocks
• Available with Skyjacker Hydro 7000 velocity-sensitive hydraulic shocks
• Available with Skyjacker M95 200 PSI gas-charged monotube IFP shocks
• Available with Skyjacker Nitro 8000 150 PSI gas-charged shocks
• Available with rear shock extension brackets
• Multiple rear shock configurations allow the suspension package to be matched to different ride and performance preferences
