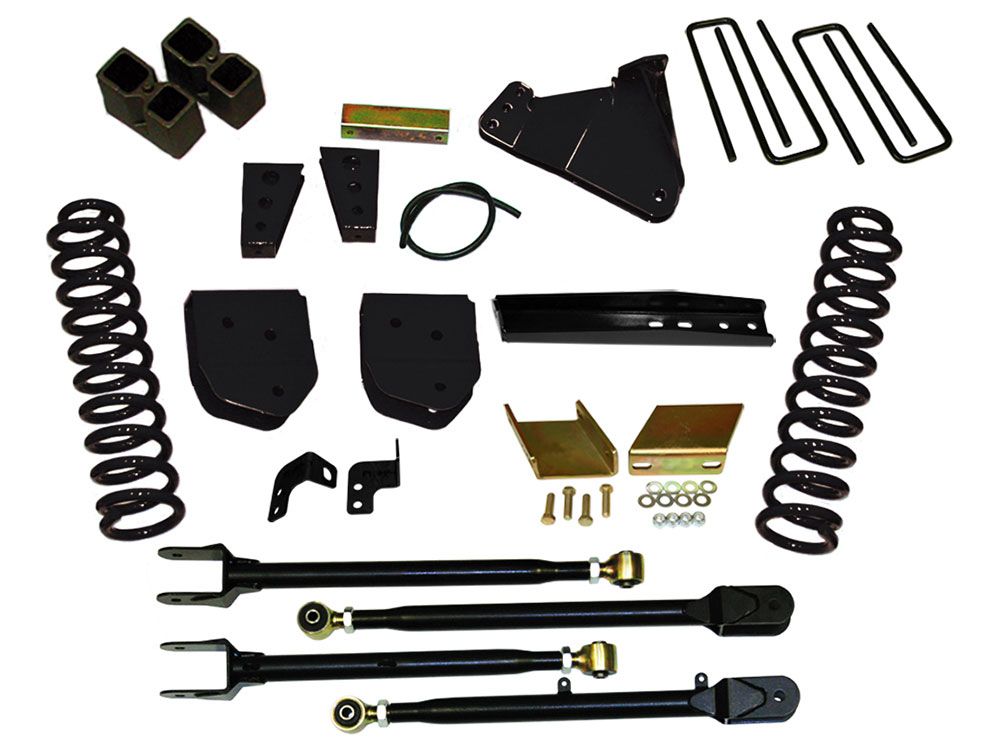

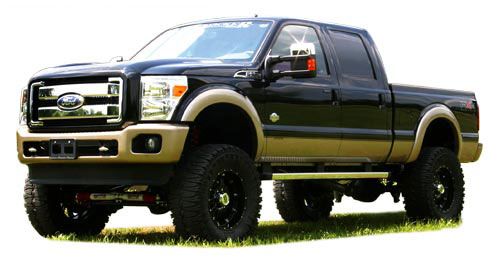

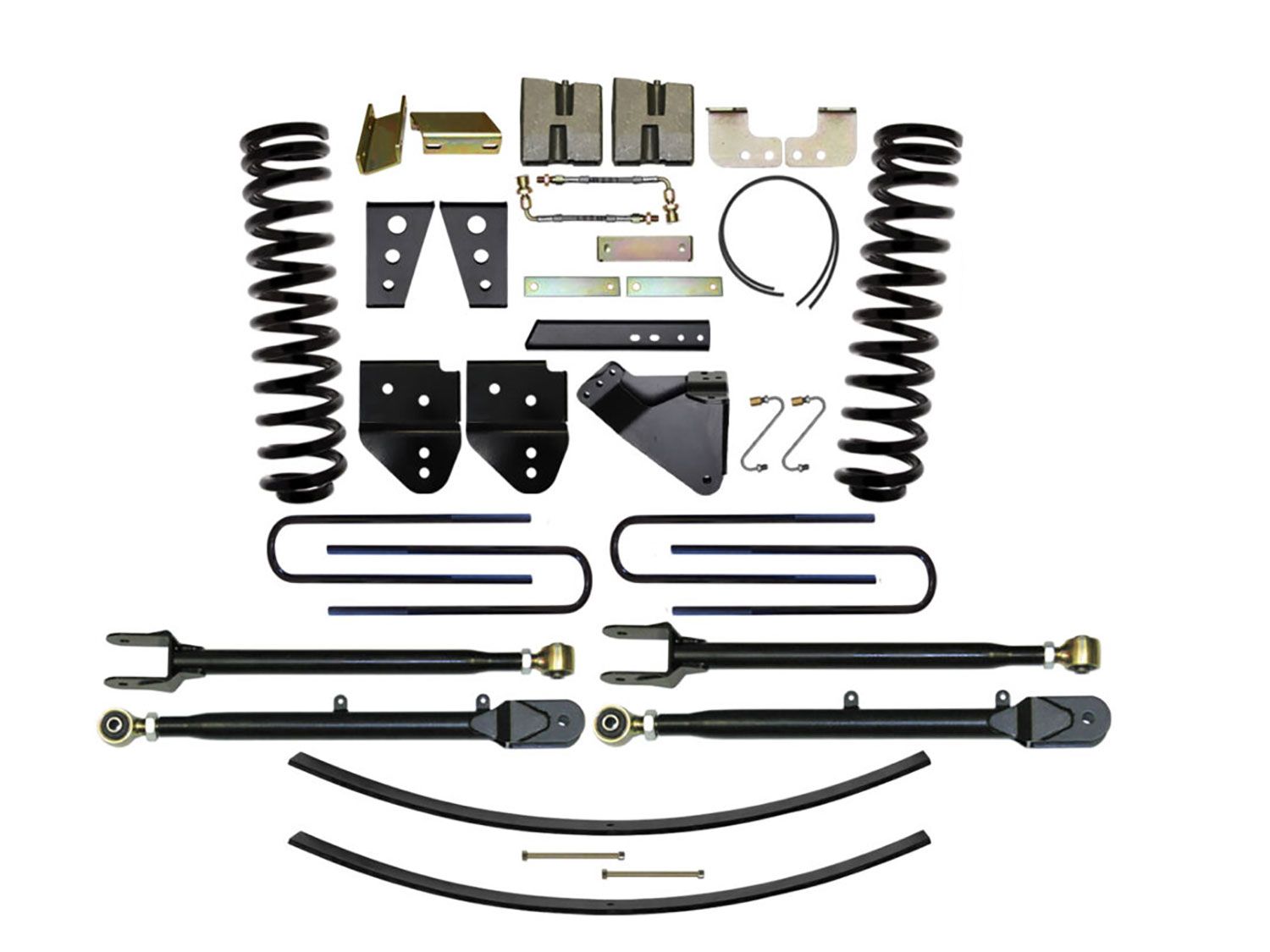

8.5" 2011-2016 Ford F250/F350 (w/Gas Egnine) 4WD 4-Link Lift Kit by Skyjacker

Skyjacker’s F11802K 8.5-inch 4-Link Conversion System redefines suspension performance for Ford F250/F350 Super Duty 4WD gas trucks. Designed to replace OEM radius arm mounts, this system features upper and lower adjustable Flex Links, formed from 2-inch OD x 0.250-inch wall DOM tubing, providing robust strength and on-road tuning with precise caster adjustability. The Flex Links feature forked clevis ends at the axle and 1-1/4” forged rod ends with rubber-encased bushings at the upper mount for long-lasting durability and articulation.

At the heart of this upgrade is Skyjacker’s Softride® Variable Rate Coil Spring technology, which delivers smooth ride quality, extended spring life, and maximum wheel travel. A heavy-duty track bar relocation bracket anchors the axle alignment under stress, while sway bar drop brackets, bump stop spacers, and brake line extensions ensure full suspension functionality without compromising control.

To level the stance and boost rear support, the kit includes a 5.5-inch rear block and U-bolt set with Softride® Add-A-Leaf springs. Additional components like e-brake relocation brackets, rear stainless brake lines, bump stop spacers, and exhaust hanger brackets ensure proper installation and clearance throughout the suspension cycle. Front and rear ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks elevate damping performance with nitrogen-charged, Internal Floating Piston (IFP) technology and full-displaced valving—delivering lightning-fast shock response across rugged terrain and daily driving alike.

Features and Benefits:

• 8.5-inch 4-Link Conversion enhances suspension performance for Super Duty 4WD gas trucks
• Adjustable Flex Links with 2" OD x 0.250 wall DOM tubing allow precise caster tuning and improved handling
• Allows for a maximum tire size of 38x12.50 w/17-20x9 wheel
• Skyjacker Softride® Variable Rate Coil Springs provide superior ride quality, increased wheel travel, and long-lasting durability
• Heavy-duty track bar relocation bracket, sway bar drop brackets, and bump stop spacers maintain correct geometry
• Includes 5.5-inch rear block and U-bolt kit with Softride® Add-A-Leaf springs for a level stance and added support
• Comes with e-brake relocation brackets, rear stainless brake lines, and exhaust hanger brackets for complete fitment
• ADX 2.0 Remote Reservoir Monotube Shocks with IFP technology deliver fast shock response and superior damping

Skyjacker Hydro 7000 Shocks

• Hydraulic action provides smooth on-road comfort and reliable off-road damping.
• Twin-tube construction ensures consistent performance and extended shock life.
• Multi-stage valving adapts to a variety of driving conditions and terrains
• White finish with red polyurethane bushings adds a clean, classic look

Skyjacker Nitro 8000 Shocks

• High-pressure nitrogen gas is charged for faster shock response and reduced fade
• Multi-stage valving delivers a balanced ride on and off the road
• Twin-tube construction ensures durability under heavy-duty use
• Designed for lifted vehicles to enhance stability and control

Skyjacker Black MAX Shocks

• Twin-tube design with foam-cell technology for fade-free performance in extreme conditions
• 360° arc-welded mounting ends for superior strength and durability
• Black satin finish for a rugged, corrosion-resistant look
• Engineered with vehicle-specific valving for a smooth, controlled ride quality

Skyjacker M95 Monotube Gas Shocks

• High-pressure nitrogen gas is charged for consistent performance and reduced fade.
• Monotube design with a 46mm piston for fast heat dissipation and superior damping control
• Vehicle-specific valving ensures a smooth, controlled ride on and off-road
• Durable, sleek silver finish resists corrosion and adds a clean aesthetic

SkyJacker ADX 2.0 Adventure Series Shocks

• 2.0" aluminum monotube design with external remote reservoir for maximum heat dissipation
• Race-inspired full-displaced valving system ensures consistent performance across rough terrain
• Internal Floating Piston (IFP) technology separates oil and nitrogen for lightning-fast response
• Engineered for lifted trucks and SUVs to deliver superior control and off-road damping capability
