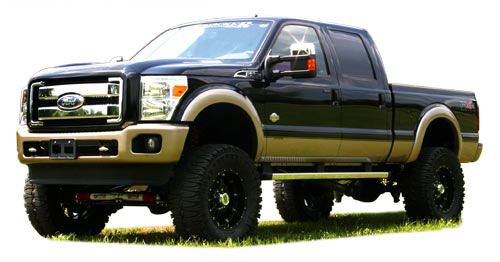

8.5" 2011-2016 Ford F250 (w/diesel engine) 4WD Lift Kit by Skyjacker

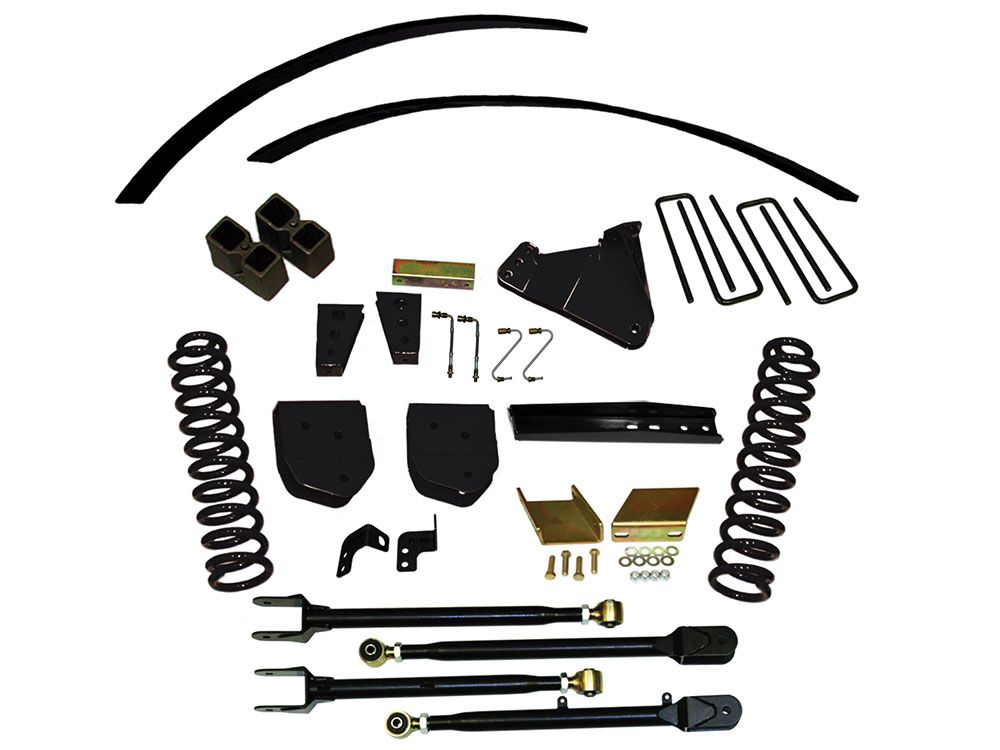

Skyjacker’s F11852K 8.5-inch 4-Link Conversion is a comprehensive suspension upgrade engineered specifically for the Ford F250 Super Duty 4WD Diesel. This system replaces the factory radius arm setup with upper and lower adjustable Flex Links, constructed from durable 2-inch OD x 0.250 wall DOM tubing. These Flex Links enable fine-tuned caster adjustments and improved handling, both on and off the road.

Designed to maximize performance and ride quality, the kit features Skyjacker’s variable-rate Softride coil springs, delivering a smoother suspension response and extended longevity. A heavy-duty track bar relocation bracket ensures axle centering and front-end stability, while sway bar drop brackets, bump stop spacers, and brake line extension brackets properly realign key components to match the increased lift height. At the rear, a 5.5-inch lift block and U-bolt kit, paired with Softride Add-A-Leaf springs, provide a level stance and increased load-handling capability. Additional components include e-brake relocation brackets, stainless steel rear brake line extensions, and rear exhaust hanger brackets for a complete installation.

For damping, the system incorporates ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks. These high-performance shocks feature nitrogen-charged Internal Floating Piston (IFP) technology for fast reaction times and superior control, whether tackling rough terrain or cruising on the highway.

Features and Benefits:

• 8.5-inch 4-Link Conversion replaces factory radius arms for improved articulation and handling
• Adjustable Flex Links made from 2-inch OD x 0.250 wall DOM tubing for maximum durability and caster tuning
• Variable Rate Softride® coil springs engineered for smoother ride quality and increased wheel travel
• Heavy-duty track bar relocation bracket stabilizes axle and reduces stress during suspension travel
• Includes sway bar drop brackets, bump stop spacers, and front brake line extension brackets for full component realignment
• 5.5-inch rear lift block and U-bolt kit with Softride® Add-A-Leaf springs for a level stance and enhanced load capacity
• Comes with e-brake relocation, rear exhaust hanger, and stainless steel rear brake line extensions
• Equipped with ADX 2.0 Remote Reservoir Monotube Shocks featuring nitrogen-charged IFP tech for rapid shock response and superior off-road damping

Skyjacker Hydro 7000 Shocks

• Hydraulic action provides smooth on-road comfort and reliable off-road damping.
• Twin-tube construction ensures consistent performance and extended shock life.
• Multi-stage valving adapts to a variety of driving conditions and terrains
• White finish with red polyurethane bushings adds a clean, classic look

Skyjacker Nitro 8000 Shocks

• High-pressure nitrogen gas is charged for faster shock response and reduced fade
• Multi-stage valving delivers a balanced ride on and off the road
• Twin-tube construction ensures durability under heavy-duty use
• Designed for lifted vehicles to enhance stability and control

Skyjacker Black MAX Shocks

• Twin-tube design with foam-cell technology for fade-free performance in extreme conditions
• 360° arc-welded mounting ends for superior strength and durability
• Black satin finish for a rugged, corrosion-resistant look
• Engineered with vehicle-specific valving for a smooth, controlled ride quality

Skyjacker M95 Monotube Gas Shocks

• High-pressure nitrogen gas is charged for consistent performance and reduced fade.
• Monotube design with a 46mm piston for fast heat dissipation and superior damping control
• Vehicle-specific valving ensures a smooth, controlled ride on and off-road
• Durable, sleek silver finish resists corrosion and adds a clean aesthetic

SkyJacker ADX 2.0 Adventure Series Shocks

• 2.0" aluminum monotube design with external remote reservoir for maximum heat dissipation
• Race-inspired full-displaced valving system ensures consistent performance across rough terrain
• Internal Floating Piston (IFP) technology separates oil and nitrogen for lightning-fast response
• Engineered for lifted trucks and SUVs to deliver superior control and off-road damping capability
