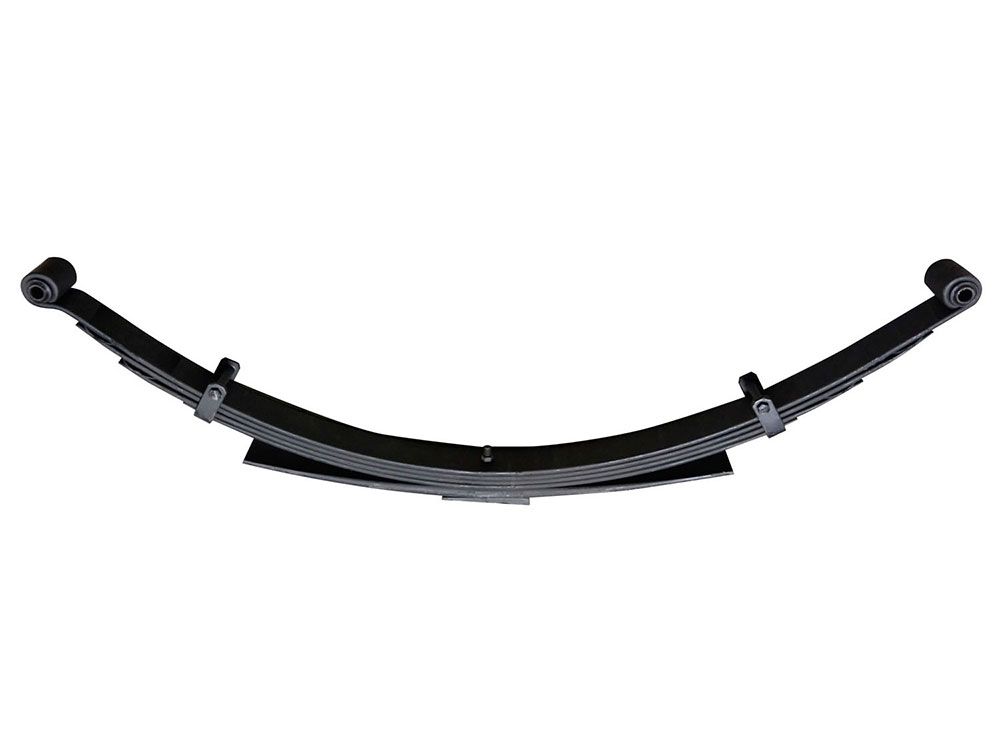

Bronco 1966-1977 Ford 4wd - Rear 4.5" Lift Leaf Spring by Skyjacker


Brand: Skyjacker | SKU: FR64S


free shipping truck  TRUCK FREIGHT ITEM
shipping charges apply, why we ship this via truck


Single Leaf Spring (Sold INDIVIDUALLY. Order two for complete set.)

- +
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Product Overview
More Information

Skyjacker's FR64S Softride Springs for the 1966 thru 1977 Ford Bronco are a great suspenion upgrade. These springs only American steel and the individual leafs of each spring are shotpeened with hard steel pellets at very high velocities. This shotpeening compresses the surface of the steel thereby increasing the tensile strength of the spring. Without this shotpeening procedure, the maximum wheel travel and ride quality could not be achieved without sacrificing the life of the spring.

Softride springs use 'bolt' style spring clips, eliminating friction. Other spring designs use the 'cinch' style bend clips which bend tightly over the spring leafs causing binding and friction. Skyjacker Softride springs taper over the entire width of the leaf creating more flex at the leaf ends. This tapering distributes loads more evenly over a greater area and reduces the tendency for one leaf to dig into the leaf above it.

Features and Benefits

  • Lifts rear 4.5 inches over stock height
  • Softride design for superior ride comfort in a lifted spring
  • Shotpeened for durability and strength
  • Spring Position: Rear
  • Spring Type: Leaf
  • Progressive Rate Spring: Yes
  • Bushings Included: Yes
  • Spring width: 2.25 inches
  • Bushing Material: Rubber
  • Bushing Color: Black
  • Spring Finish: Black painted
  • Quantity: Sold individually
Important Notes Sold individually, quantity (2) required.
Manufacturer Skyjacker
Manufacturer Part Number FR64S
Item Number skj_fr64s
Make Ford
Model Bronco
Year Spans 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Lift Height 4 inch
MPN(UPC) 803696133669
Product Type Leaf Spring
Front/Rear Rear
Spring Height 5"
