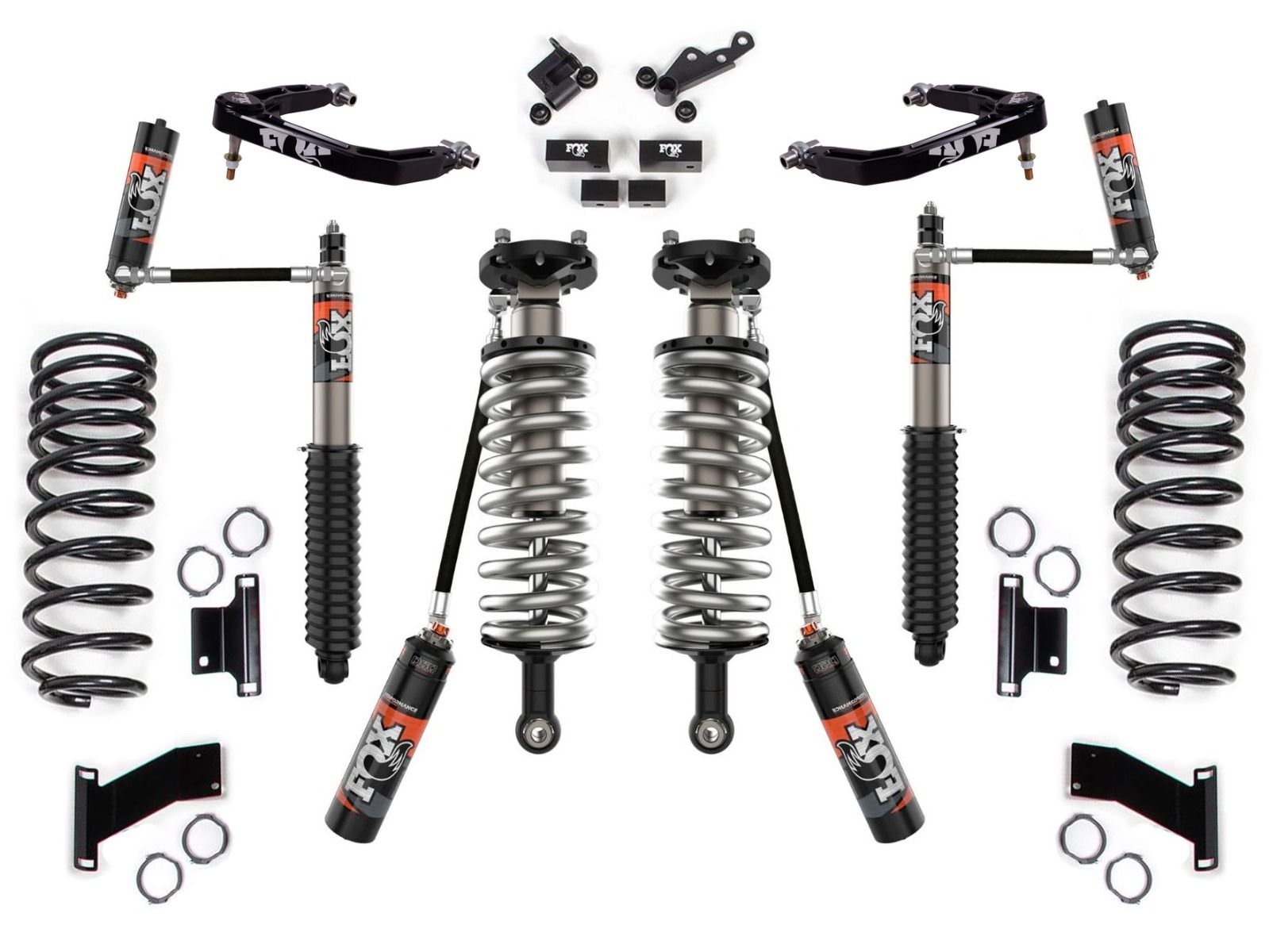

3" 2022-2026 Tundra Toyota 4WD Lift Kit (Fox 2.5 Performance Elite Coilovers / Rear Shocks, Fox UCAs & BDS Rear Coil Springs) by Jack-it

Upgrade your Toyota Tundra with this 3-inch lift kit package created by Jack-it. It is built for those who demand superior ride comfort, enhanced suspension geometry, and off-road-ready performance. This complete system is designed to accommodate larger tires—up to 33" with no trimming and up to 35" with minor fender modifications—giving your Tundra the clearance and capability it deserves.

Front Suspension: FOX 2.5 Performance Elite Coilovers & FOX Billet Aluminum UCAs

At the core of this system are FOX 2.5 Performance Elite Series remote reservoir coilovers, preset to deliver a true 3-inch lift out of the box. These coilovers include bolt-on reservoirs for increased oil capacity and fade resistance, ensuring consistent damping under demanding conditions. Built with a seamless alloy body, hardened steel shaft, and Eibach springs, they deliver both durability and refined control.

FOX 6061-T6 billet aluminum upper control arms complement the front suspension. Designed to correct alignment geometry after lifting, these UCAs improve high-speed handling and off-road articulation. Their type II anodized finish provides long-lasting corrosion resistance, while the 1.25" uniballs and ¾" chromoly heim joints offer smooth articulation and strength you can trust.

Rear Suspension: BDS Dual-Rate Coils & FOX Performance Elite Shocks

To level out the rear, this kit includes 1¾-inch lift dual-rate coil springs from BDS Suspension. These springs offer a balance of comfort and load handling, adapting to changing terrain without sacrificing control. Paired with FOX 2.5 Performance Elite remote reservoir shocks featuring Dual Speed Compression (DSC) adjusters, the rear suspension setup offers excellent control on and off the road.

Fine-Tuned Control with DSC Adjusters

Both front and rear reservoirs include FOX's advanced DSC technology, giving you quick access to 10 low-speed and 12 high-speed compression settings. Whether you’re towing, trail riding, or daily driving, these adjusters let you tune the suspension on the fly for changing road conditions and driving styles.

Lift Kit Features and Benefits:

• Provides 3-inch front lift / 1.75-inch rear lift
• Premium Suspension System
• Fox 6061 Billet Aluminum Upper Control Arms wit 3/4-inch heim joints
• Includes Fox 2.5 Performance Elite Coilovers and Shocks
• Coilovers & Shocks features DSC (dual speed compression) ride adjustments with a turn of a dial
• BDS Dual-rate rear coil springs
• BDS Differential drop brackets
• Estimated Install Time: up to 4-5 hours

Fox 2.5 Performance Elite Coilover Features:

• 2.5-inch CNC Machined 6061-T6 Aluminum Body
• An aluminum body dissipates heat three times faster than steel body
• Excellent ride quality and off-road performance
• Reservoirs include Dual Speed Compression (DSC) Adjusters to fine-tune ride firmness or softness at high and low speeds (10 low-speed settings, 12 high-speed settings)
• Race-developed high-flow piston design
• Clear Anodized Finish
• Coil Springs are application-specific
• 7/8" hard chrome-plated steel shafts
• Application specific valving
• Quiet nitrile rubber bushings

Tire & Wheel Combinations:

• 295/65 R20 Tire w/ 6-7/8 BS (OE TRD Wheel) (no trimming)
• 285/65 R20 Tire or 285/75 R18 w/9” Wide 6-1/8” BS Wheel (no trimming)
• 295/60 R20 Tire or 295/70 R18 w/9” Wide 5-1/2” BS Wheel (no trimming)
• 305/55 R20 Tire or 305/65 R18 w/9” Wide 5” BS Wheel (no trimming)
• 325/60 R20 Tire w/9” Wide 6-1/8” BS Wheel (trimming required)
• 35/12.50 R20 Tire or 35/12.50 R18 w/9” Wide 5-1/2” BS Wheel (trimming required)
• 295/65 R20 Tire or 305/70 R18 or 285/75 R18w/9” Wide 5” BS Wheel (trimming required)

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
