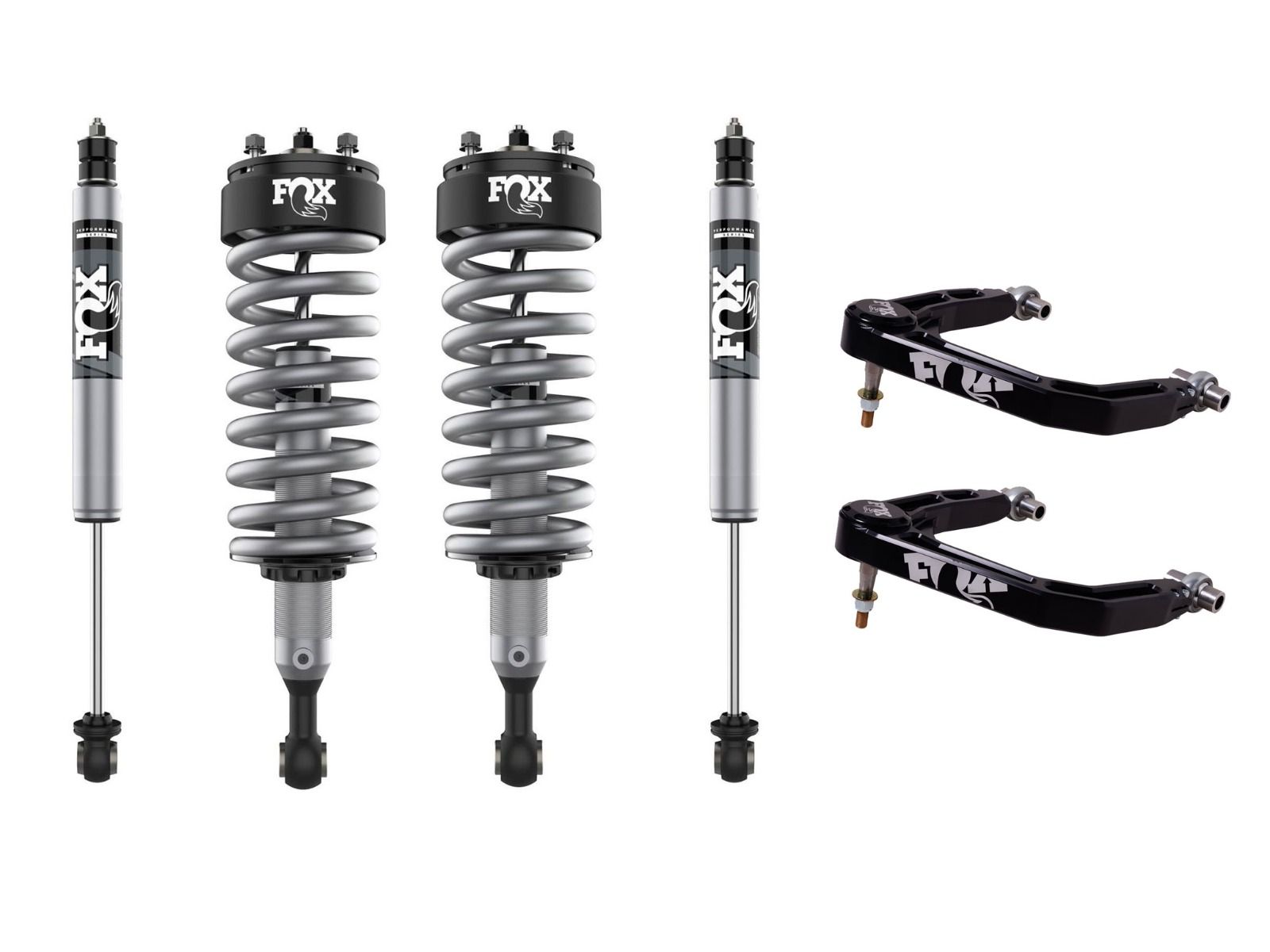

2" Tundra 2022-2026 Toyota Leveling Kit (Fox 2.0 Coil-Overs, 2.0 Rear Shocks & Fox Upper Control Arms) by Jack-it

This custom-built 2-inch lift leveling kit package by Jack-it for the Toyota Tundra truck models includes a set of FOX 2.0 Performance Series front coil-overs, rear shocks, and FOX 6061 billet aluminum upper control arms. It is designed to greatly improve suspension performance and gain up to 2 inches of additional front height.

Coilovers and Shocks: Experience superior ride quality and enhanced performance with Performance Series 2.0 coil-overs and 2.0 smooth-body internal floating piston (IFP) shocks, expertly engineered for the third-generation Toyota Tundra. Constructed with a type II anodized aluminum body, these coilovers / shocks efficiently dissipate heat and resist corrosion, outperforming traditional painted steel shocks. The shock body incorporates an internal floating piston (IFP) that separates shock oil from high-pressure nitrogen, optimizing damping for an unrivaled driving experience. These FOX shocks are not only built to endure the lifetime of your vehicle but are also fully serviceable and re-valveable for continued high performance. The 2.0 Performance Series shocks are crafted precisely, featuring a 2.0-inch impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body. The application-specific springs and 5/8-inch hard chrome-plated steel shafts ensure robust durability and exceptional performance. Designed with vehicle-specific valving, these shocks maximize handling precision and consistent damping, while a redundant sealing pack system—comprising a main seal, wiper seal, and scraper seal—ensures reliable operation under all conditions.

Upper Control Arms: Designed to optimize suspension geometry, these UCAs correct alignment issues caused by lifting, allowing for increased droop travel and better articulation in rugged terrain. Engineered for precision and performance, they help reduce high-speed wander by increasing caster, delivering a more stable, confident driving experience both on and off-road. Constructed from 6061 billet aluminum with laser-etched FOX logos, type II anodized finish for excellent corrosion resistance. These UCAs are built for strength and durability! They feature 1.25" hard chrome-plated uniballs and 3/4" chromoly heim joints for smooth movement and long-lasting performance. Stainless steel taper misalignment spacers and 12-point bolts ensure a tight, secure fit at the steering knuckle, giving you peace of mind in the most demanding conditions.

Shock / Coilover Features & Benefits:

• Provides 0 to 2 inches of front lift (adjustable height)
• 2.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body
• Application-specific springs
• 5/8" hard chrome-plated steel shafts
• Vehicle-specific valving to maximize performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Retain precise handling and consistent damping
• Maintain optimal ride height with preload adjustment
• Vehicle-specific springs enhance articulation and increase stability
• On-road comfort and performance-minded valving for a connected ride with less vehicle sway
• The two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness
• Aluminum shock bodies efficiently dissipate heat and resist corrosion compared to stock-painted steel shocks

Upper Control Arm Features & Benefits:

• Optimized suspension geometry for lifted vehicles
• Type II anodized Black finish for superior corrosion resistance
• Improves caster for better high-speed stability
• Maximizes droop travel for increased off-road articulation
• Constructed from 6061 billet aluminum with laser-etched FOX logos
• Equipped with 1.25" hard chrome-plated uniballs
• Includes 3/4" chromoly heim joints for superior strength
• Stainless-steel taper misalignment spacers ensure a precise fit
• 12-point bolts at the steering knuckle provide a secure connection
• Delivers a more controlled, comfortable ride over rough terrain

Front Coilover Specs

• Extended Length: 21.230 inches
• Compressed Length: 14.900 inches
• Travel: 5.290 inches
• Top Mount: OEM
• Bottom Mount: Eyelet

Rear Shock Specs

• Extended length: 24.720"
• Compressed length: 16.000"
• Travel length: 8.720"
• Top mount: Stem
• Bottom mount: Eyelet
