Sierra 2500HD/3500HD 2011-2019 GMC Upper Control Arms by Zone

Brand: Zone | SKU: C2312
$560.95

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

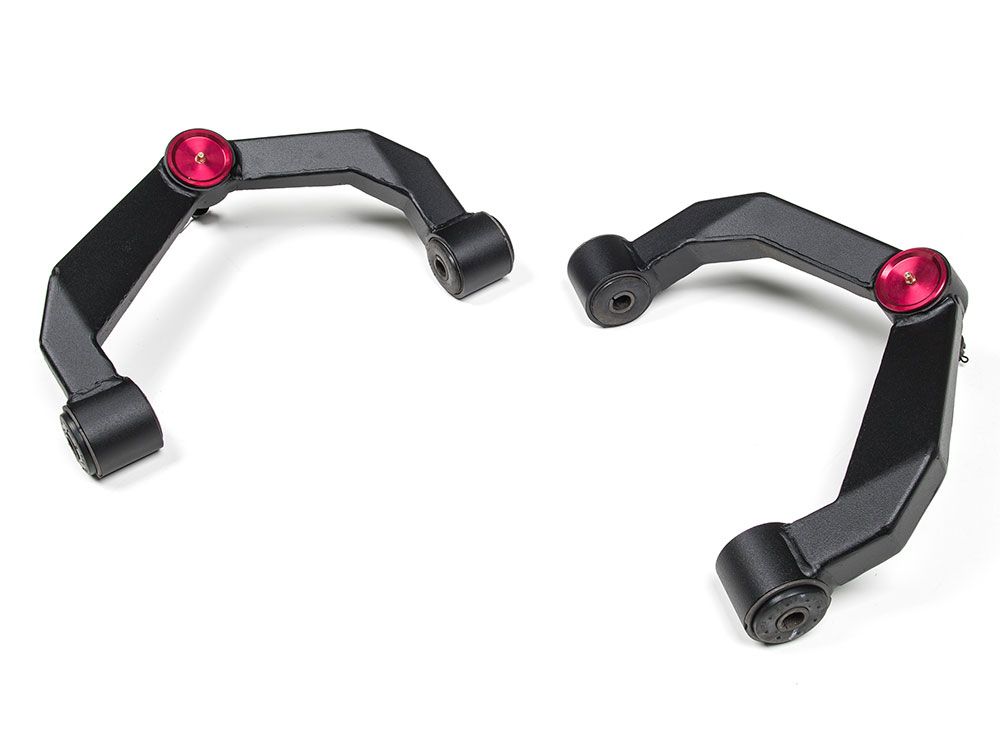

These Zone C2312 upper control arms for the GMC Sierra 2500HD / 3500HD pickup are ideal for vehicles that have lifted 2 to 3 inches with either a leveling kit or lift kit, offering improved suspension travel and ride quality over the factory control arm design.

These heavy duty, boxed steel upper control arms are made from fully welded 1/8" steel plate construction as well as CNC machined ball joint and bushing mounts. Built much stronger than the factory arms while improving the performance and appearance of your HD's suspension. High quality Raybestos brand ball joints will handle heavy duty use and work in conjunction with OE-style rubber mount bushings to provide a quiet ride. The ball joints are greaseable and easily replaced with readily available parts at the end of their service life.

These UCAs were designed for 2-3" leveling / lift kits and have been approved for fitment on Zone Offroad's 5" Suspension System. They may work with other suspension setups but a fitment check with the suspension at full droop is highly recommended to ensure the suspension travel is properly limited with the use these arms.

Top Features and Benefits

  • Ideal for vehicles lifted 2 to 3 inches
  • Improved suspension travel and ride quality over the factory control arm design
  • Fully welded, boxed steel design using 1/8" steel plate construction
  • CNC machined ball joint and bushing mounts
  • Improved droop travel & upper control arm operating angle
  • High quality Raybestos Ball Joints and OE style bushings included and pre-installed
  • Utilizes replaceable ball joints and bushings
  • Features greasable ball joints

Installation Instructions

Instructions.pdf

Important Notes
Wheel Size & Backspacing Recommendations for proper tire clearance at ball joint: 20x9 w/6" Backspaced Wheels | 18x9 w/6" Backspaced Wheels | 17x9 w/5"-5.5" Backspaced Wheels
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberC2312
Item Numberzon_c2312
MPN(UPC)711745596818
Product LineControl Arms
Front/RearFront
TypeUpper
