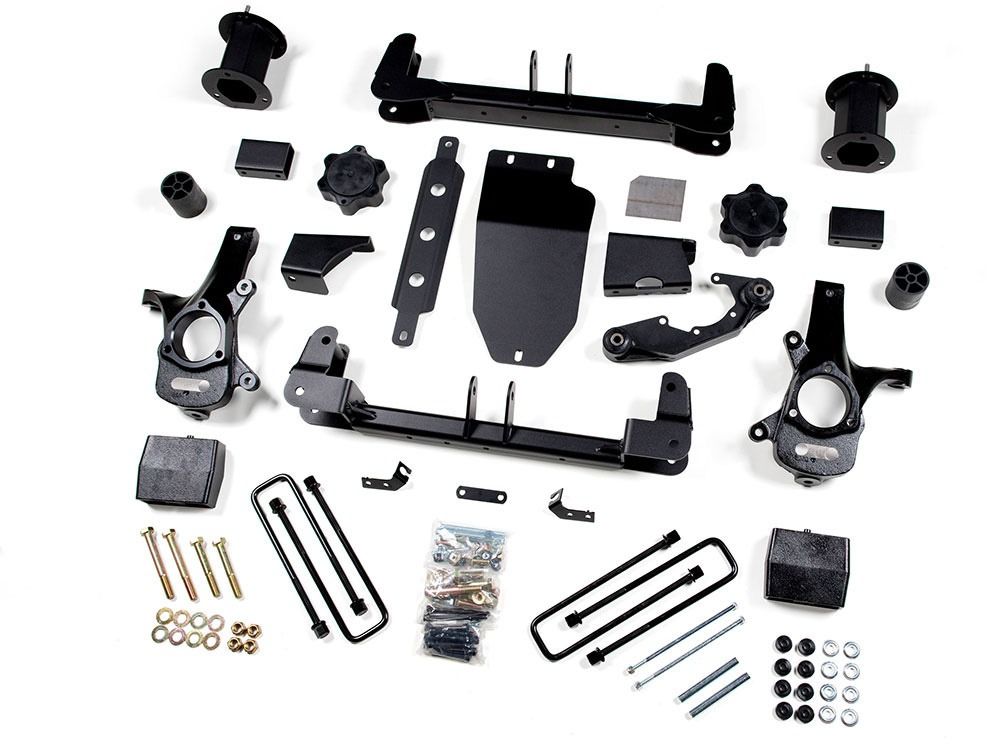

This Zone C27N lift kit for the Chevy Silverado 1500 includes a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering. A 3-piece differential relocation system is utilized to correct front pinion angle with the center differential brace tying front and rear crossmembers together for a sturdy differential mount. This coupled with the differential skid plate and crossmember brace create an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance.

To retain factory ride quality a pair of bolt-on 4.5 inch strut spacers are used to provide lift. These install easily without the need to disassemble the factory strut. Also included in the kit are a pair of CV spacers, brake line brackets, sway bar relocation, and all the necessary hardware to complete the install.

To lift the rear and level the stance a 4 inch tapered block is utilized along with longer u-bolts, brake line bracket and your choice of shocks.

New for GM 1/2 Ton's is the availability of both forged steel and forged aluminum control arms from the factory. Zone Offroad Products offers kits to fit both steel and aluminum arm equipped trucks. Check your vehicle before ordering to ensure the correct kit is shipped. Accessories for this lift kit include Zone front skid plate available separately.

As with all Zone Offroad Products, this 4.5 inch lift kit is backed by a limited lifetime warranty.

Featured Technology and Benefits:
- FMVSS No.126 (ESC system test) Compliant
- Over 98% Made in the USA - not a cheap import
- Ductile Iron, CNC machined steering knuckles maintain OE steering and ball joint geometry and allow fitment of 17 inch wheels
- Heavy duty boxed one piece crossmembers that maintain a clean factory look
- Differential skid plate and support strut included for added protection when hitting the trails
- Multi-point differential mounting system corrects drive line angles for proper geometry
- Weld-in control arm pocket plate included
- Solid cast iron rear blocks, not fabricated blocks
- Works with factory Stabilitrak System

• This kit is designed to fit vehicles equipped with factory control arms that are cast steel only. Will not fit with factory aluminum or stamped steel control arms. (see additional images above for visual reference of GM control arm types)
• All wheel drive models require drive line modification
• Frame bracket modification and minor welding required
• To reduce trimming required with 20 inch wheels, 5.75 inch backspacing recommended
• Add-a-leaf option recommend for crew cab models for a more level stance
