Product Description
More Information

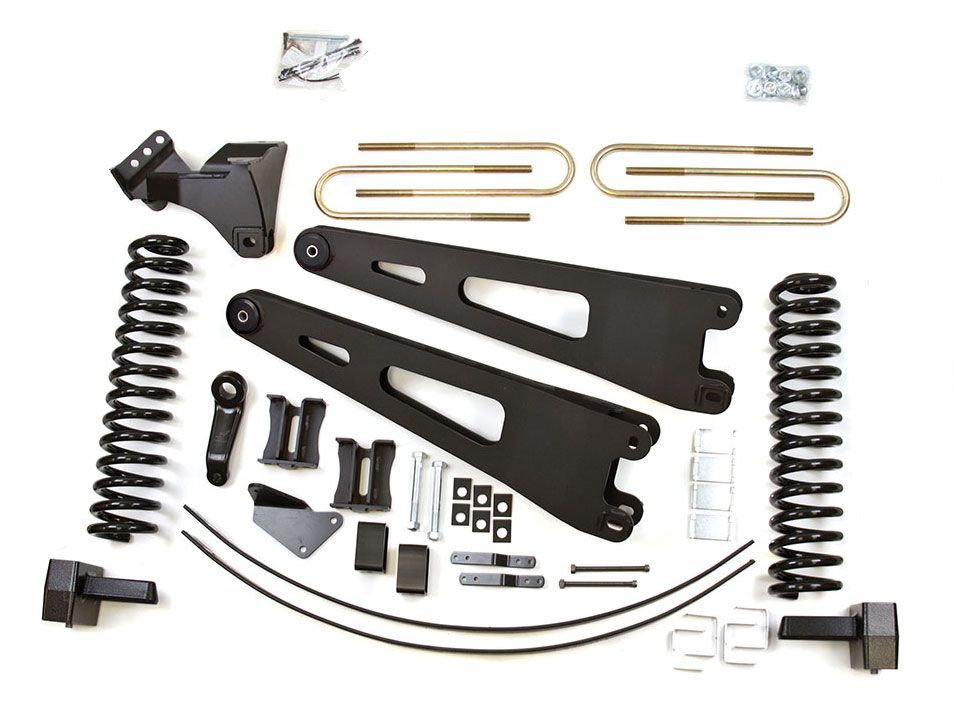

This Zone Off-Road F38 / F39 6 inch lift kit for the 2005 thru 2007 Ford F250 and F350 is an excellent upgrade to allow for use of up to 37 inch diameter tires. Featuring massive radius arms made with 1/4 inch steel for optimal ground clearance compared to other drop bracket kits on the market. A dropped pitman arm and track bar relocation bracket are included in the 6 inch system to properly align the front axle after lifting. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5 inch cast iron block with an integrated bump stop, and to achieve the additional lift for the 6 inch system a dual add-a-leaf kit is included. The block and AAL setup on the 6 inch system will reduce spring wrap, level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well.

FeaturesĀ and Benefits:

  • 6 inch front lift / 4 inch rear lift
  • Allows for use of 37 inch diameter tires
  • 1/4 inch boxed radius arms with oversize greaseable bushings
  • Diesel or gas specific coil springs for an accurate lift height and proper ride quality
  • Increased ground clearance and better looks than a radius arm drop system
  • Track bar bracket and dropped pitman arm included to correct steering geometry
  • Sway bar drop brackets to maintain the OE sway bar angle
  • Front bump stop spacers
  • Front and rear brake line relocation brackets
  • 5 inch rear block with integrated bump stop
  • Single rear add-a-leaf
  • Designed to level the truck with removal of the factory block
  • Made in the USA
  • Limited Lifetime Warranty
Important Notes- If equipped with a 2-piece rear drive shaft, then a driveshaft alignment kit may be required. It is available in the optional accessories part #F5401.
- Removal of the factory rear block is required. Net rear height gain will vary based on size of the factory block, but will result in a level stance.
- If your vehicle is equipped with both a stock 4" rear block and a top mounted over load spring, u-bolt #U4035 may be required.
- Front exhaust modification may be required to clear the front driveshaft on gas models.
- Although extremely rare, front drive line vibration may occur.
- Rear box kit not designed for dually models.
- Note: If purchasing this lift kit without shocks please be sure to supply extended shocks which are required to install the kit properly.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2007, 2006, 2005
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberF38 / F39
Item Numberzon_f38n
Product LineLift Kits
Lift Height6 inch
