Product Description
More Information

This Zone Off-Road F58 / F59 4 inch Lift Kit for the Ford F250/F350 4wd models will give your vehicle a great 4" lift with the ability to fit up to 37 inch tires once installed.

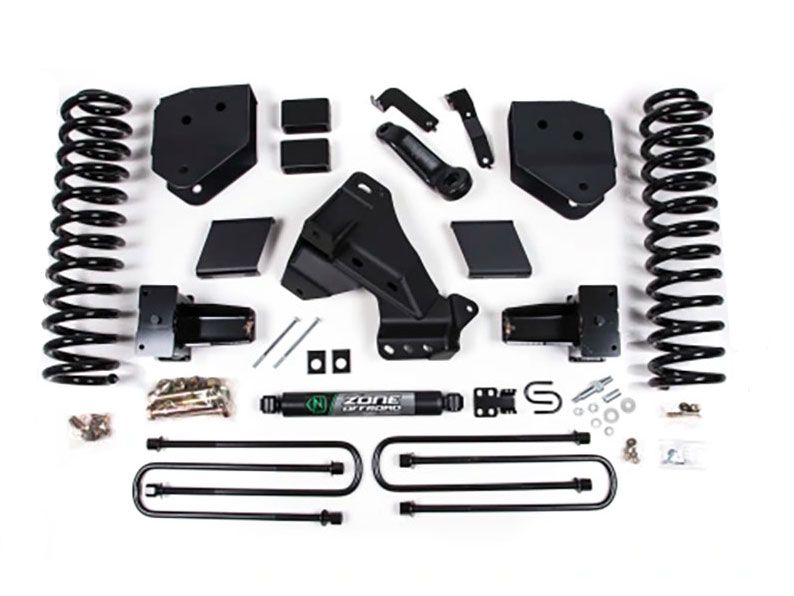

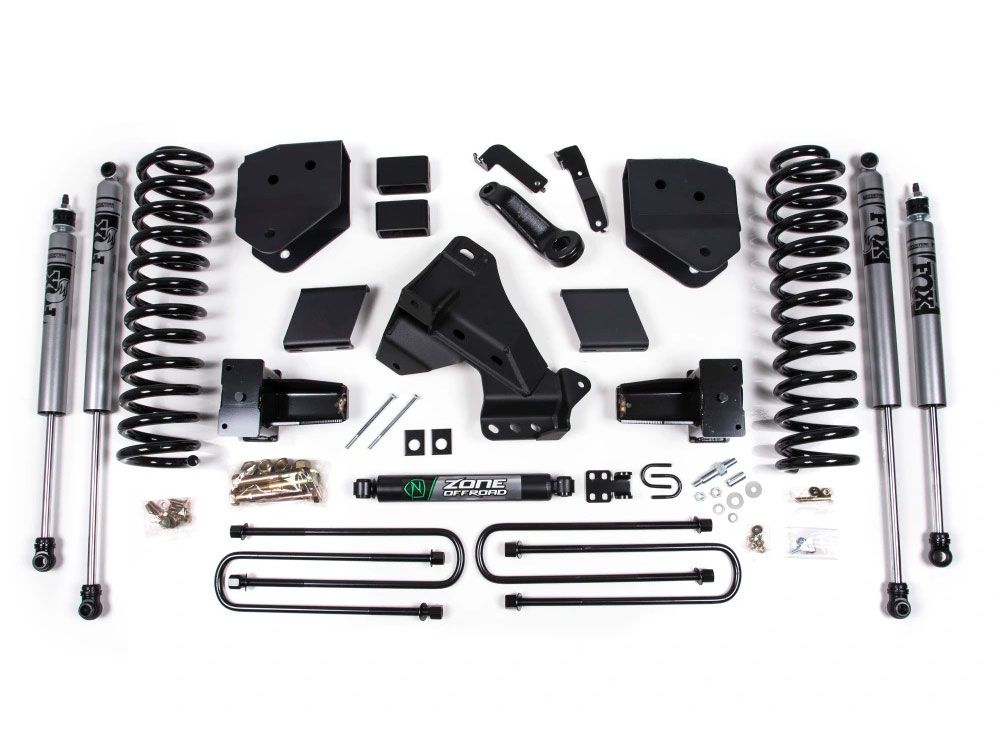

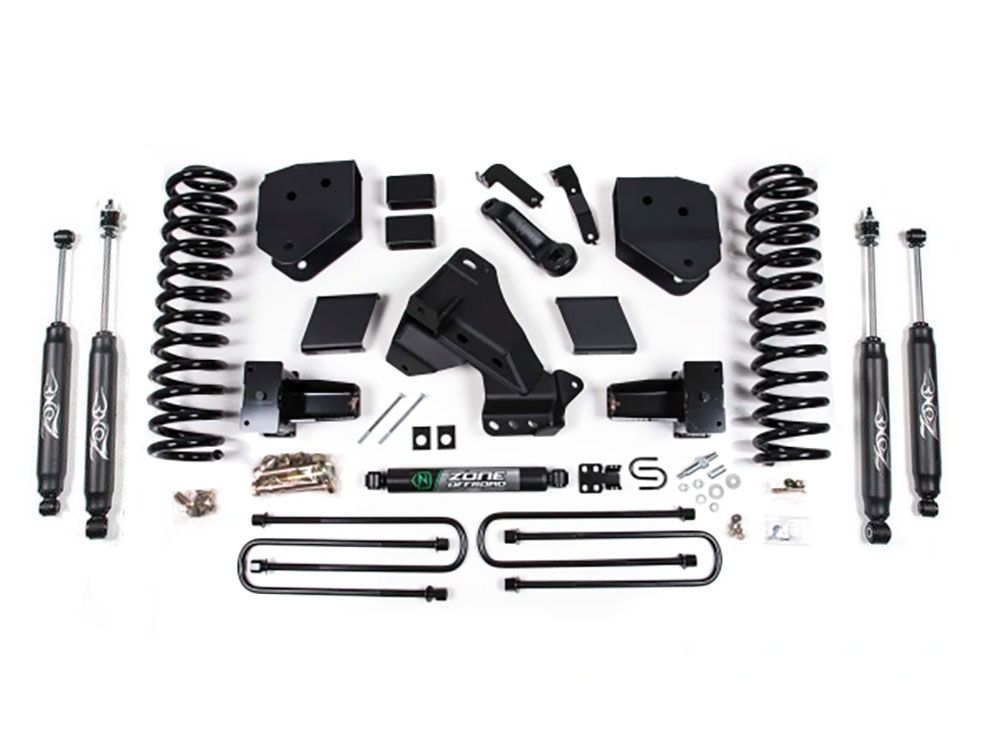

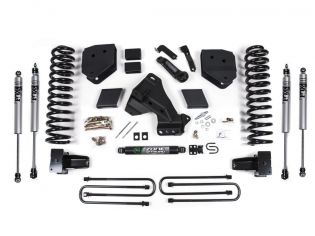

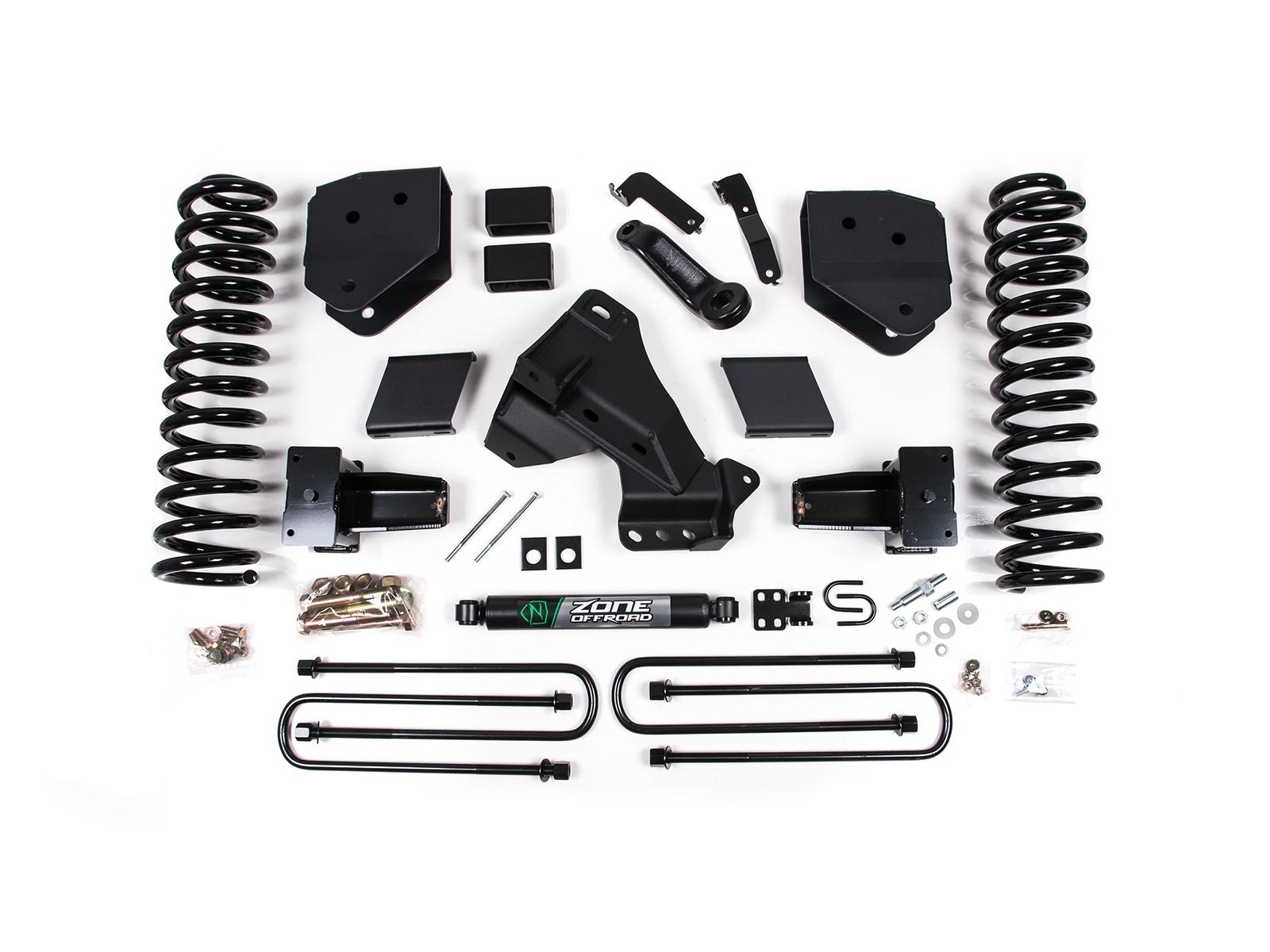

Includes front coil springs that are designed to not only ride great, but will hold up over the long haul. Radius arm drop brackets rotate the front axle for proper front caster.  A heavy duty front track bar drop bracket keeps the front axle centered, while a drop pitman arm corrects steering angles. In the rear 5" blocks replace your factory blocks so there is not stacking of blocks.

Features and Benefits:

  • 4 inch front lift / 3 inch rear lift
  • Maintains factory ride quality and characteristics due to correcting geometry
  • Bolt-on installation, able to be returned to stock height
  • New front coil springs capable of full coil bind offering off-road performance and great ride quality
  • Radius arm drop brackets included to properly rotate the front axle
  • A heavy duty front track bar drop bracket keeps the front axle centered
  • Drop pitman arm keeps proper steering angles
  • New rear U-bolt with high nuts and washers
  • Includes Rear Lift Block kit to eliminate the factory block - NO stacking blocks!
  • Allows for clearance for larger tires, max tire size: 37" tires x 18x9 wheels, 4.5 inch backspacing
  • Limited Lifetime Warranty
  • 5 year / 100,000 Mile Drivetrain Warranty
  • Install Time: 4-6 Hours

Limited Lifetime Warranty - Zone Offroad Products are backed by a limited lifetime warranty.  Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser.

Important Notes
  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
  • Front exhaust modification may be required to clear front drive shaft (Gas Models Only)
  • This lift kit is available to purchase without shocks, however extended shocks are required to install properly
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2022, 2021, 2020
    2WD/4WD4WD
    Tech Specs
    ManufacturerZone
    Manufacturer Part NumberF58 / F59
    Item Numberzon_f58-f59
    Product LineLift Kits
    Lift Height4 inch
