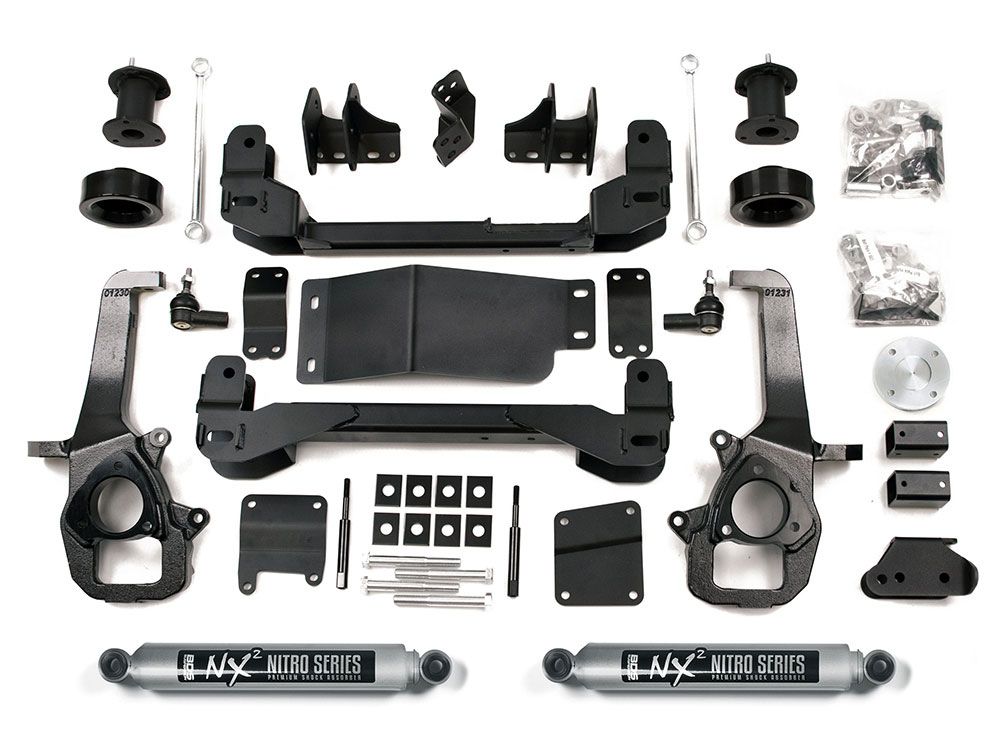

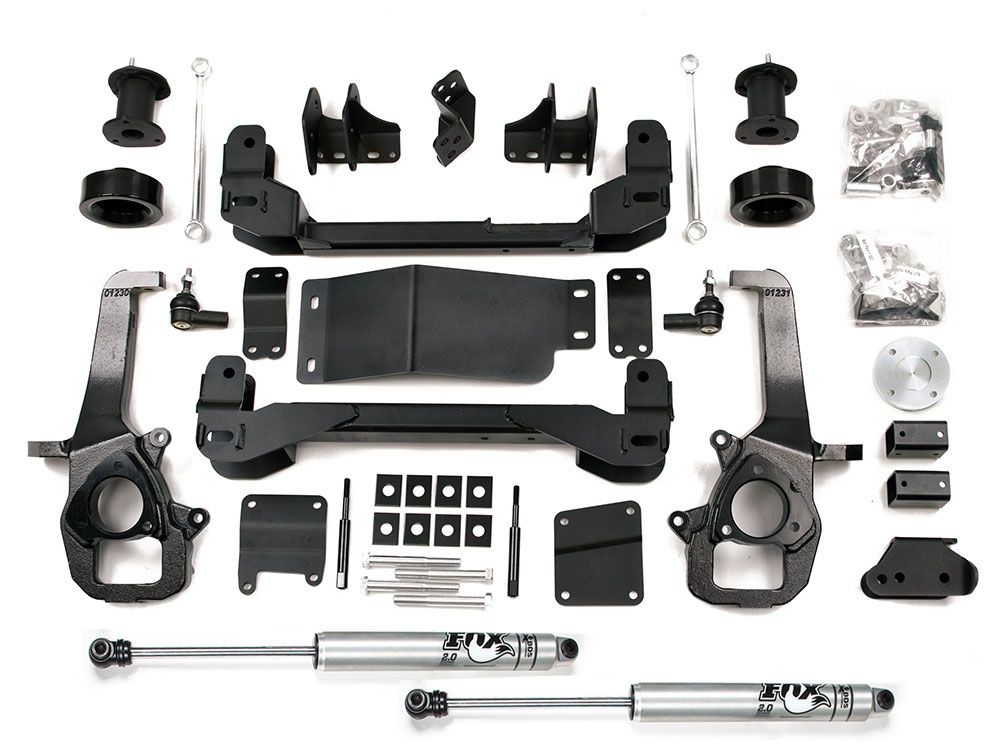

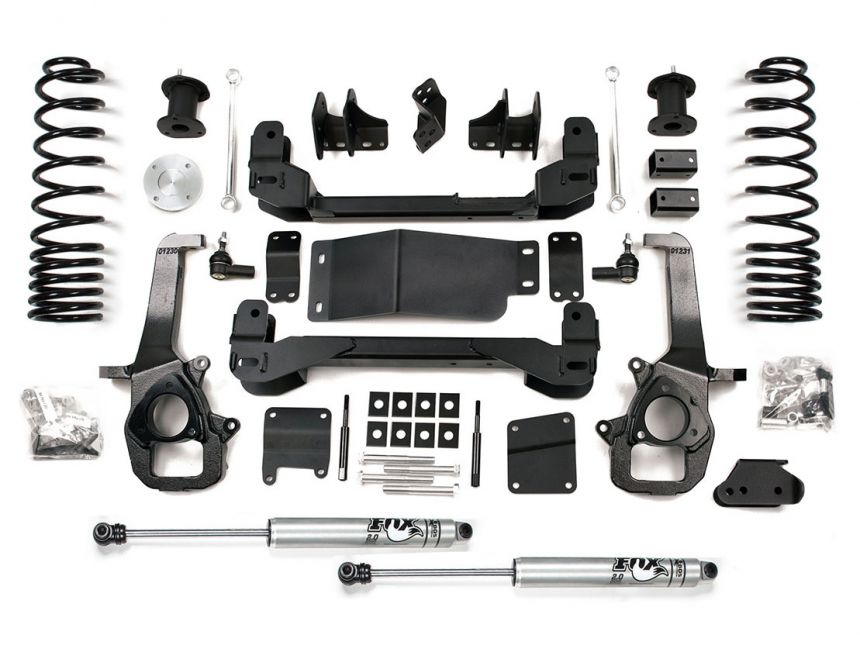

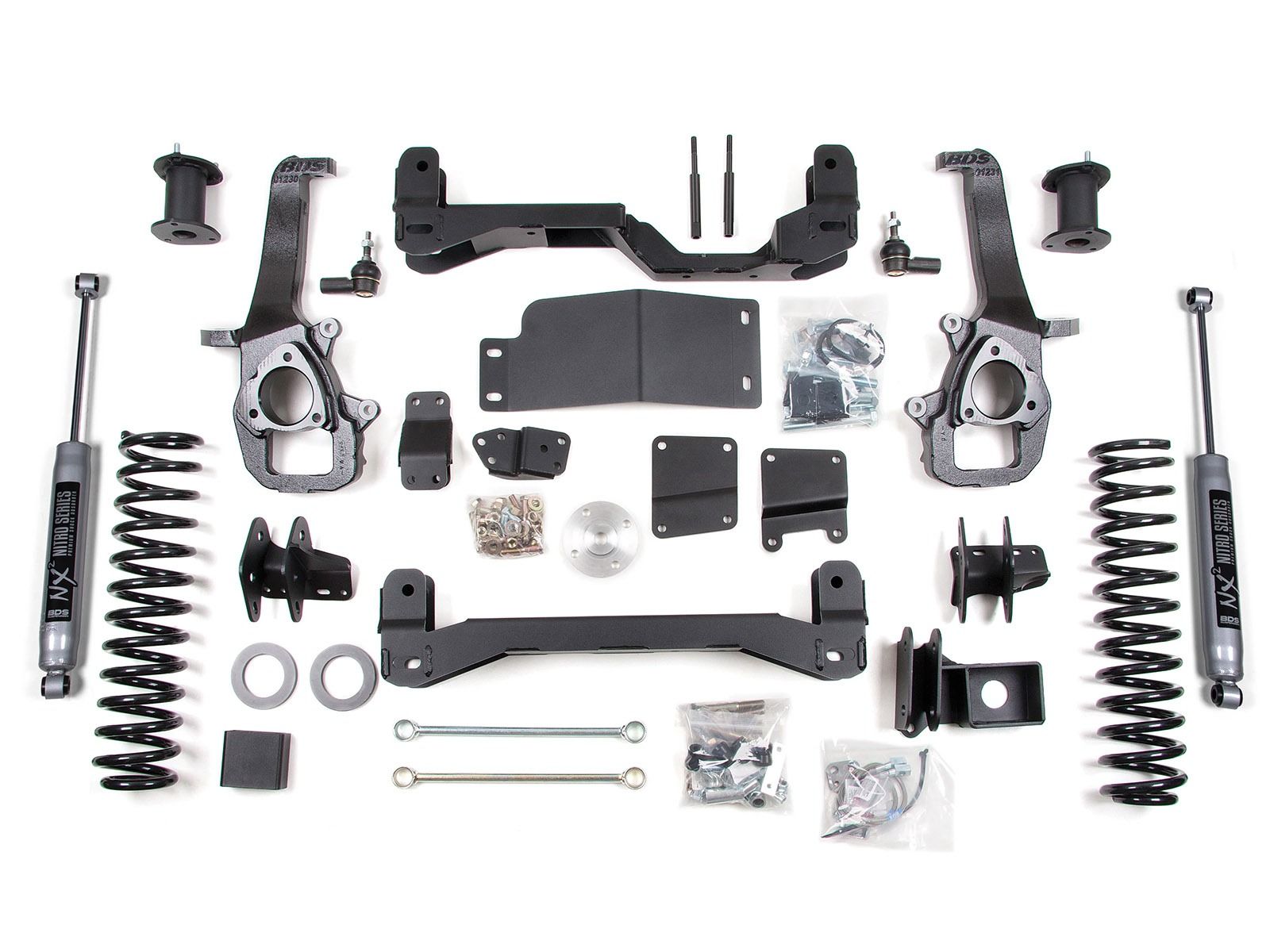

This 4 inch lift kit will clear up to 35 inch tires and is based around two one-piece, 1/4 inch laser cut high-clearance crossmembers and replacement steering knuckles. The high-clearance crossmembers increase ground clearance for off road performance.
The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.
The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.

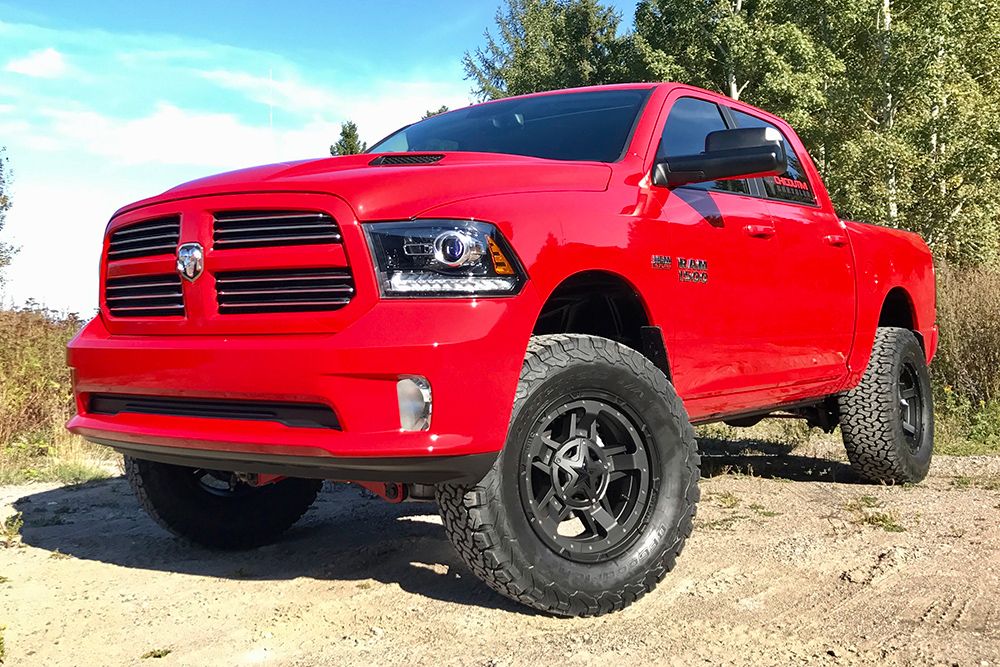

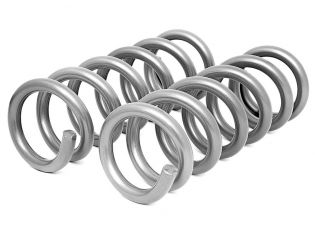

The rear is lifted via BDS 2 inch coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3 inch rear coil spring option is available depending on your desired stance.
Tire & Wheel Combinations
- 35 inch x 12.5 inch w/ 17 x 9 and 4.5 inch backspacing
- 35 inch x 12.5 inch w/ 18 or 20 x 9 and 5 inch backspacing
- Est. Installation: 10 hours
- Difficulty Level (easy 1 - 5 complicated): 4
This kit is Certified by the National Highway Traffic Saftey Administration!
Click here for more information.
BDS Suspension Lift Kit Warranty
All BDS Suspension Lift Kits are backed by a 'No BS Hardcore Lifetime Warranty'. Which means, if you are the original purchaser of a BDS Suspension Kit, and it breaks, they'll give you a new part. Period.
|Manufacturer Part Number||670h|
|Model||Ram 1500, Ram 1/2 Ton|
|Lift Height||4 inch|
The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensitive the system becomes, causing minor steering wheel shimmy.
Not recommended for AWD models.
Stock 17 inch wheels can not be reinstalled. Stock 20 inch can be reinstalled with factory tire.
Will not fit adjustable air suspension equipped models.
