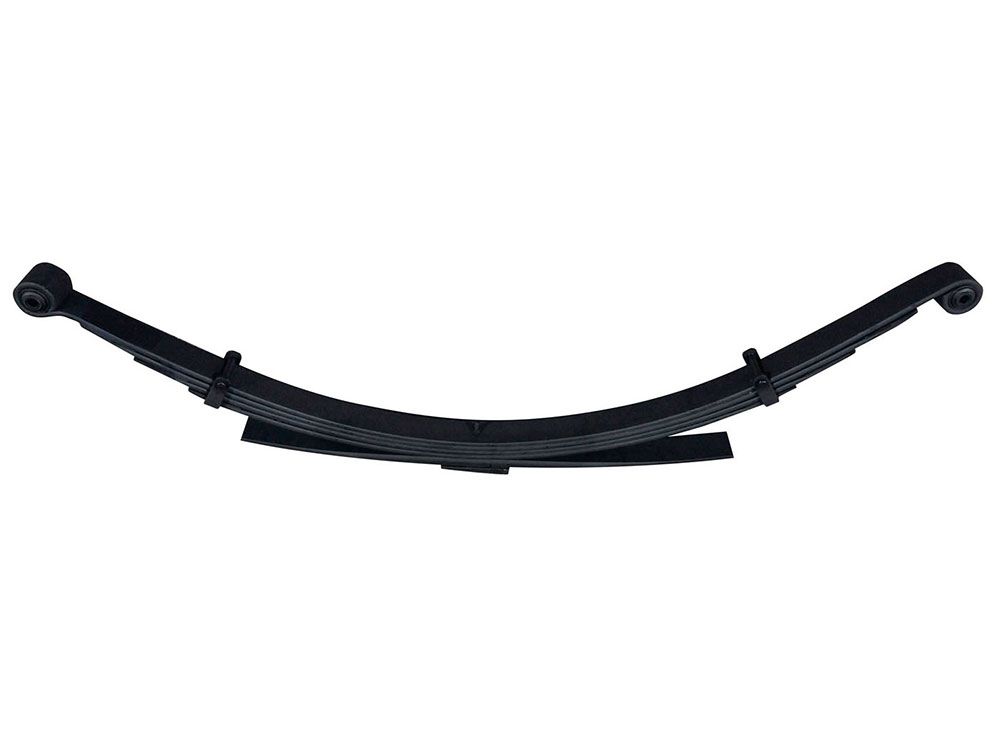

Ramcharger/Trailduster 1972-1993 Dodge 8" Rear 4WD Leaf Spring
Skyjacker's Softride Springs use only American steel and the individual leafs of each spring are shotpeened with hard steel pellets at very high velocities. This shotpeening compresses the surface of the steel thereby increasing the tensile strength of the spring. Without this shotpeening procedure, the maximum wheel travel and ride quality could not be achieved without sacrificing the life of the spring.
Softride springs use 'bolt' style spring clips, eliminating friction. Other spring designs use the 'cinch' style bend clips which bend tightly over the spring leafs causing binding and friction. Skyjacker Softride springs taper over the entire width of the leaf creating more flex at the leaf ends. This tapering distributes loads more evenly over a greater area and reduces the tendency for one leaf to dig into the leaf above it.
- Spring Position: Rear
- Spring Type: Leaf
- Progressive Rate Spring: Yes
- Bushings Included: Yes
- Bushing Material: Rubber
- Bushing Color: Black
- Spring Finish: Black painted
- Quantity: Sold individually.
|Manufacturer Part Number||DR60S|
|Important Notes||Factory block can be removed to reduce lift 3.5 inch (Cummins models will be 4-6 inch less lift). Some models have 3/4 inch spring eye bolts and require Skyjacker's bushing kit #skj_se17d.|
|Year Spans||1972,1973,1974,1975,1976,1977,1978,1979,1980,1981,1982,1983,1984,1985,1986,1987,1988,1989,1990, 1991,1992,1993|
