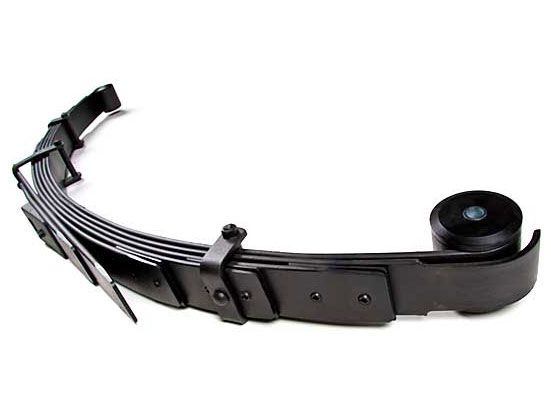

Pickup 1/2 & 3/4 ton 1973-1987 Chevy 4wd - Front 4" Lift Leaf Spring by BDS Suspension

These Skyjacker front leaf springs for the Chevy Pickup trucks are a great replacement for worn springs. They are designed to lift your vehicle 4 inches over the original factory height.

Skyjacker's Softride Springs use only American steel and the individual leafs of each spring are shotpeened with hard steel pellets at very high velocities. This shotpeening compresses the surface of the steel thereby increasing the tensile strength of the spring. Without this shotpeening procedure, the maximum wheel travel and ride quality could not be achieved without sacrificing the life of the spring.

Softride springs use 'bolt' style spring clips, eliminating friction. Other spring designs use the 'cinch' style bend clips, which bend tightly over the spring leafs, causing binding and friction. Skyjacker Softride springs taper over the entire width of the leaf spring, creating more flex at the leaf ends. This tapering distributes loads more evenly over a greater area and reduces the tendency for one leaf to dig into the leaf above it.

Top Features and Benefits

• Great replacement for worn springs
• Made from American steel
• Shotpeened for tensile strength
• Bolt-style spring clips (eliminates friction)
• Provides 6 inches of front lift over original factory height
• Progressive tapered leafs for a more comfortable ride

Specifications

• Eye to EyeDimension: 45.125
• Free Height Dimension: 4.75
• Eye to Center Pin Front: 23
• Eye to Center Pin Rear: 22.125
• Eye (F/R) diameters: 1.5/1.125
• 5 leafs per leaf pack
• Width 2.5"
• Center Pin Size 3/8"
• Weight 45lbs.
