Pickup 1/2 ton, 3/4 ton 1973-1987 Chevy/GMC 4wd - Front 4" Lift Leaf Spring by Skyjacker

Brand: Skyjacker | SKU: C140S

free shipping truck TRUCK FREIGHT ITEM
shipping charges apply, why we ship this via truck


Single Leaf Spring (Sold INDIVIDUALLY. Order two for complete set. Bushings sold separately. )

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

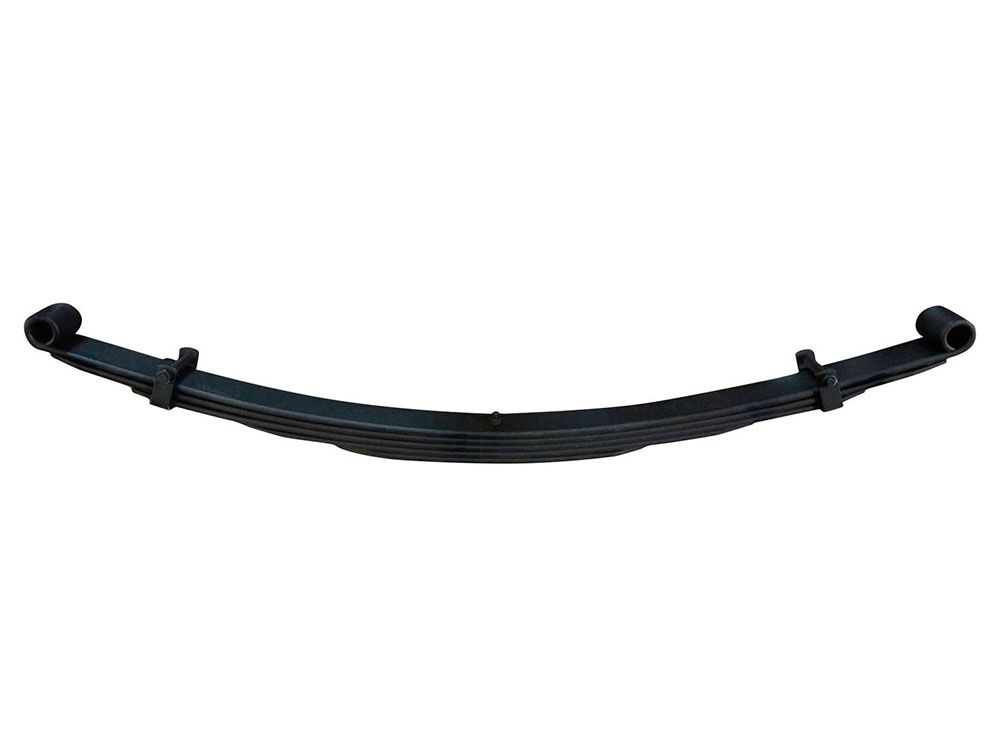

Skyjacker Softride leaf springs for the Chevy, GMC Straight Axle are an excellent choice. Thinner leaf technology with shot-peening of each individual leaf compresses the surface of the steel thereby increasing the tensile strength to provide maximum wheel travel and ride quality without sacrificing the life of the spring. Softride springs use bolt-style spring clips, eliminating friction. To achieve this superior ride quality, Softride springs taper over the entire length of the leaf creating more flex at the leaf ends to distribute loads more evenly over a greater area. This reduces the tendency for one leaf to dig into the leaf above it Only high-quality American steel is used in their construction, so you can be assured that you're getting a dependable product.

- Spring Position: Front
- Spring Type: Leaf
- Progressive Rate Spring: Yes
- Spring Rate (lbs/in): 490 lbs./in.
- Bushings Included: No
- Spring Finish: Black painted
- Quantity: Sold individually.

Important NotesSold individually, quantity (2) required.
Vehicle Fitment
MakeChevy, GMC
ModelPickup 1/2 ton, Pickup 3/4 ton
Year Fitment1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973
Tech Specs
Manufacturer Part NumberC140S
Item Numberskj_c140s
Product LineLeaf Spring
Lift Height4 inch
Spring Height4"
Number Of Leaves5
Eye to Center Pin (Front x Rear)23.5 x 23.5
