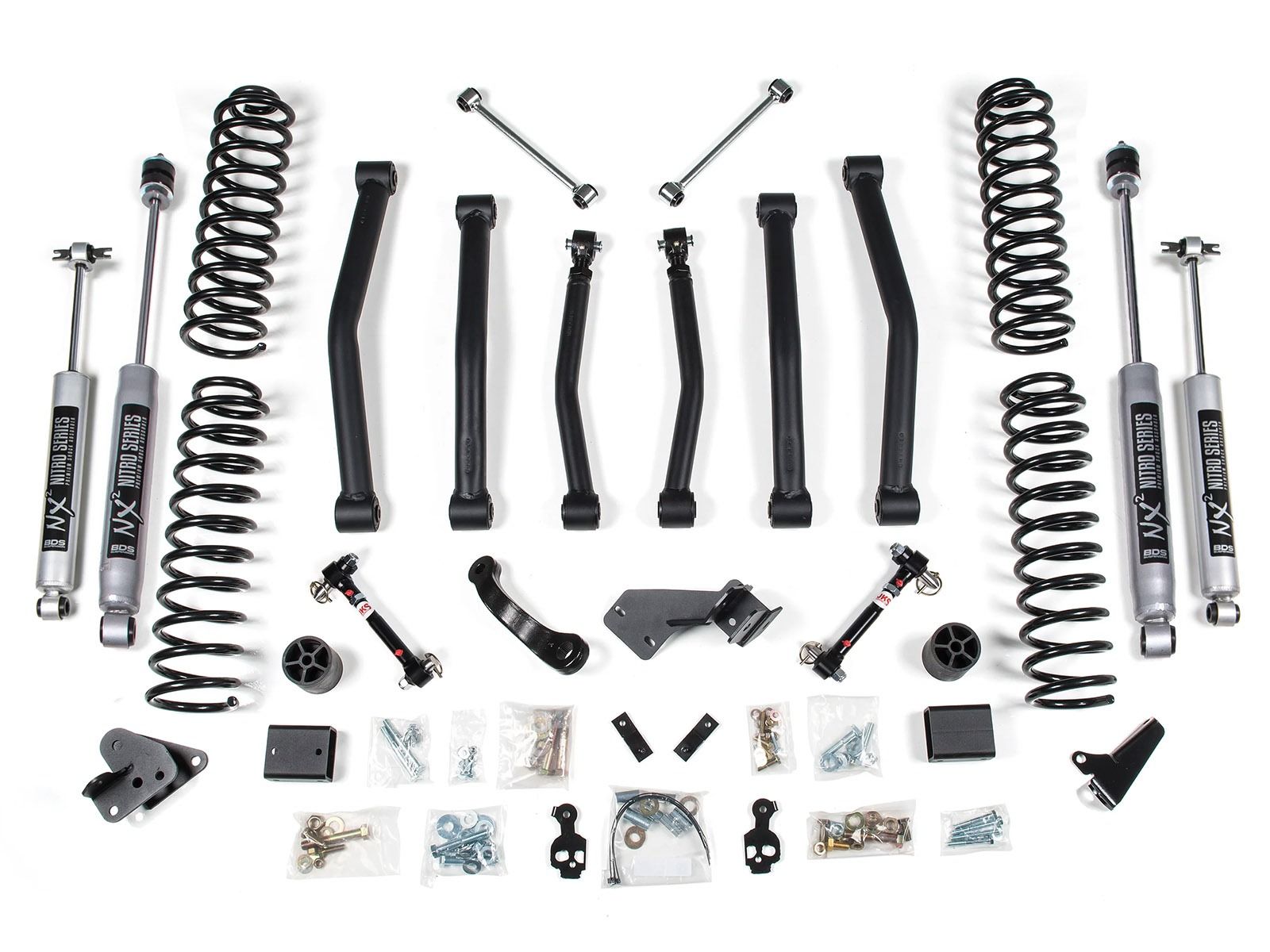

This BDS Suspension BDS1413H kit comes with 4.5" Pro-Ride Coil Springs capable of full coil bind and 3" bump stop extensions to control the compression travel. To handle the added wheel travel, brake line relocation brackets are included or BDS stainless steel lines are available.

This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings.

To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. BDS exhaust extensions are included to maintain front driveshaft clearance at full droop.

In the rear, an axle mounted track bar relocation bracket is included that has a built in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support.

All Possible SKUs based on options selected: BDS1413, BDS1413FS, BDS1413FPE, BDS1414H, BDS1414FS

Top Features and Benefits

• Lifts vehicle 4.5 inch front / 4 inch rear
• ProRide front and rear coil springs
• Bump stop extensions
• Front sway bar disconnects (non-Rubicon models)
• Allows use of up 37 inch tires
• Average Install Time: 8 hours
• Proudly made in the USA, using only premium quality components
• Choice of BDS NX2, Fox 2.0 Performance IFP or Fox 2.5 Performance Elite Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire and Wheel Combinations

• 37" x 12.5" w/ 16 x 8 and 4.5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
