3" 2007-2011 Jeep Wrangler JK 4WD (2-Door) Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1423H
$662.14
- +
662.14

3" 2007-2011 Jeep Wrangler JK 4WD (2-Door) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1423H
From $662.14 Regular Price $675.65

3" 2007-2011 Jeep Wrangler JK 4WD (2-Door) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1423H
From $662.14 Regular Price $675.65


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

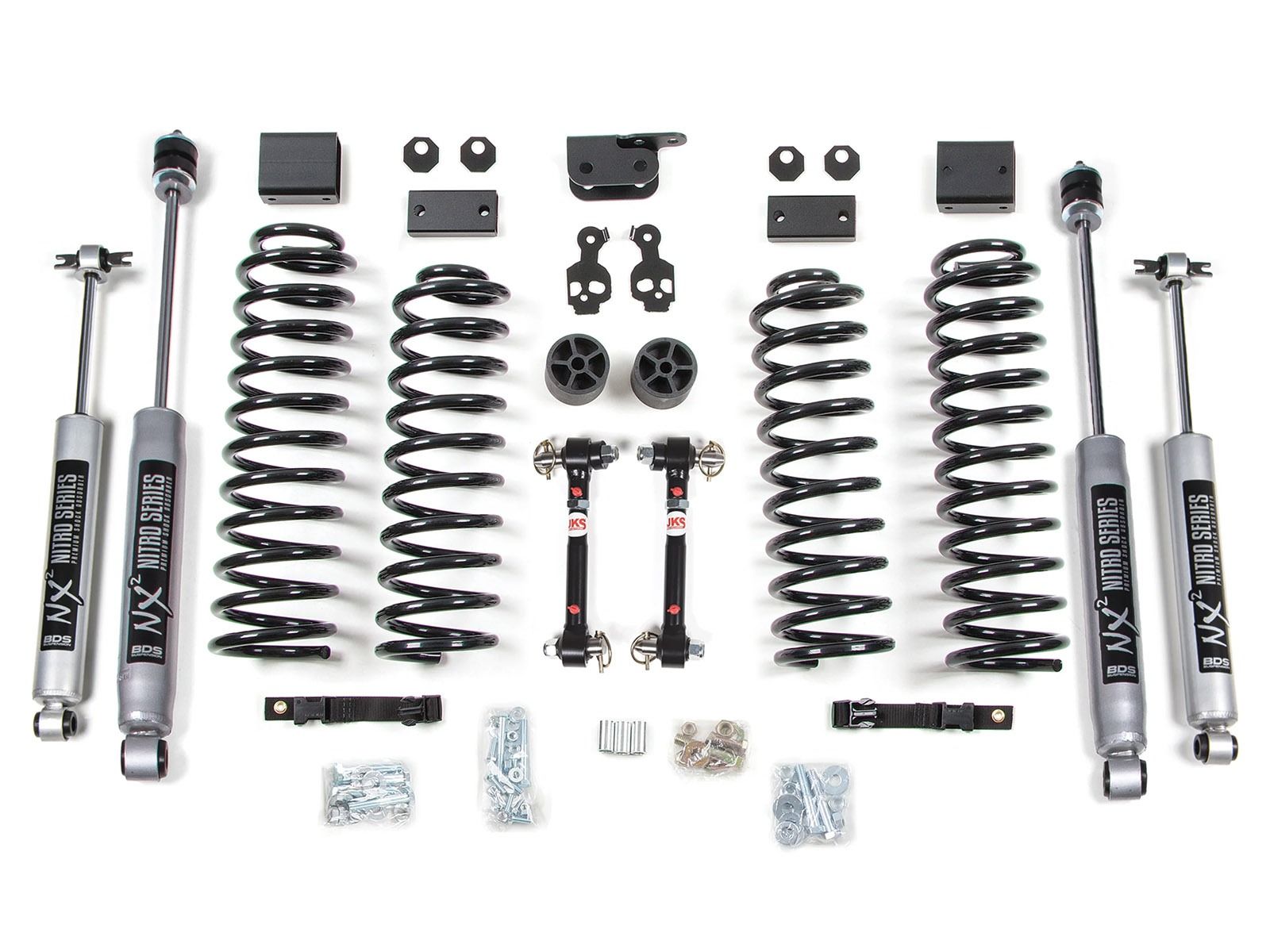

The BDS Suspension BDS1423H / BDS1423FS 3-inch premium suspension lift kit for the Jeep Wrangler JK will allow for the fitment of up to 35-inch diameter tires for a great off-road look. Specifically intended for 2007-11 models, this system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft. This kit comes with 3"Pro-Ride Coil Springs capable of full coil bind and 2" bump stop extensions to control the compression travel but increase wheel travel. Brake line relocation brackets are supplied to handle the added wheel travel. Many companies don't include anything to correct your alignment, but BDS includes octo cam washers for the front lower control arms to fine-tune the caster angle.

In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire. To correct the rear axle shift from the lift, a rear frame-mounted track bar relocation bracket is included.

All possible SKUs based on options selected: BDS1423H BDS1423FS BDS1423FPE BDS1424H BDS1424FS

Features and Benefits:

  • Pro-Ride coil springs for a great ride and superior performance
  • BDS NX2 Series, Fox 2.0 Performance or Fox 2.5 Performance Elite Shocks
  • Estimated Install Time: 6hours
  • Difficulty Level (easy 1-5 complicated): 2
  • No Fine Print Lifetime Warranty
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Up to 35" x 12.50" w/16 x 8 and 4.5" back spacing
  • Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox 2.5 Performance Elite Adjustable Shocks
The Fox 2.5 Performance Elite shocks provide a serious suspension upgrade. The 2.5 inch diameter aluminum body and external reservoir dramatically increase oil volume to fight heat building in extreme conditions. With the turn of a knob you can adjust compression settings for various types of terrain, load and speed conditions.
BDS NX2 Nitro Gas Shocks
The BDS NX2 Nitro Gas shcoks are a high-performance shocks at an affordable price. The 2 inch diameter body is powder coated with a durable metalic silver finish. Using a twin-tube design with a pressurized nitrogen charged and 10-stage velocity sensitive valving for great dampening in various types of terrain and conditions.
Important Notes
  • Compatible with Rubicon Models
  • Exhaust modification may be require
  • Vehicle Fitment
    MakeJeep
    ModelWrangler JK
    Year Fitment2011, 2010, 2009, 2008, 2007
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1423H
    Item Numberbds_bds1423h
    Product LineLift Kits
    Lift Height3 inch
