6" 2015-2020 Ford F150 2WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1522H
As low as $1,790.65

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

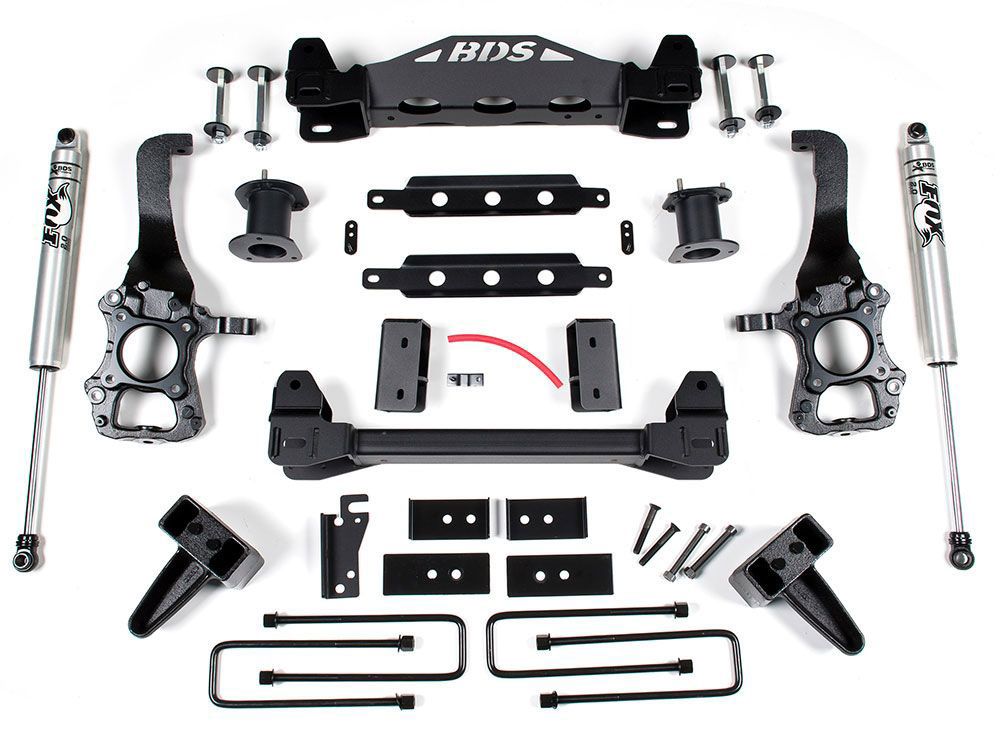

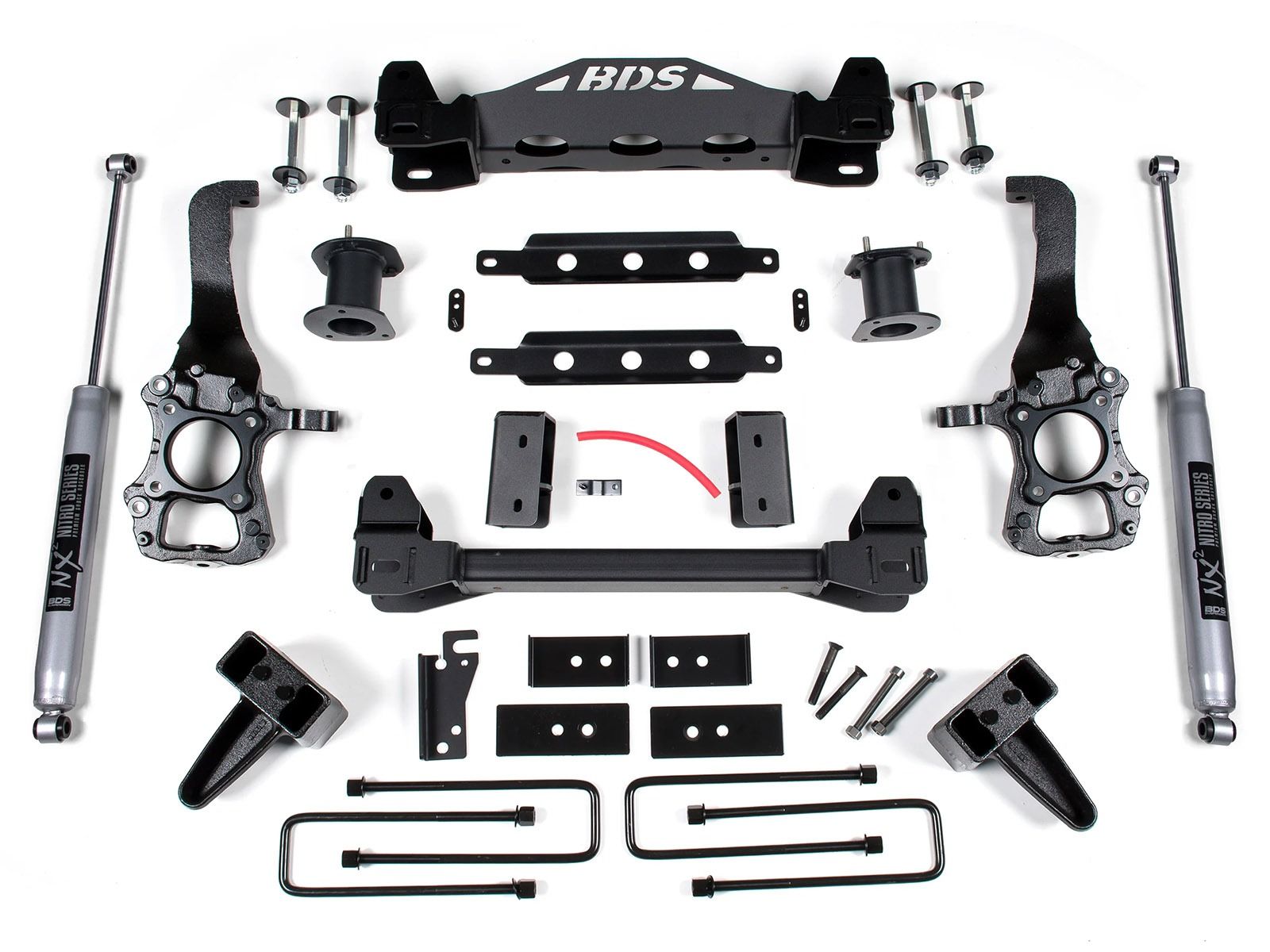

This BDS 1522H 6 inch lift kit is perfect for the F150 owner looking for a lifted and leveled stance with the performance of dual rate coil springs. This kit is complete with new front dual rate coils, brake line relocation brackets, turnbuckle style adjustable front track bar, ball joint cams, coil shims, rear replacement block kit and your choice of shocks.

The key to this kit is the coil seat correction shims and upper ball joint cams. The coil seat shims reposition the lower seat to be square with the frame mount to minimize coil bow which is typical of leveled F250/F350 trucks when the radius arms aren't relocated or replaced. The ball joint cams return the caster to factory settings to provide stock-like handling and drivability.

This is a great kit for those who want more than just a spacer but aren't quite ready to jump into the full replacement radius arm system.

The rear block box kit replaces the factory 2" block on F250 models for a level stance. On F350 models with factory 3-7/8" blocks, the rear box kit can be omitted and achieve the same stance.

Features and Benefits:

  • Dual rate coils springs
  • Turnbuckle style front track bar
  • Allows for use of 35 inch x 12.5 inch tires, w/ 17 x 9 Rims w/ 5 inch back spacing
  • Premium Quality Components
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8-10 Hours
  • Fits 35 inch x 12.5 inch w/ 18 x 9 tire with 5-5.5 inch back spacing
  • Fits 37 inch x 12.5 inch w/ 18 x 9 tire with 5-5.5 inch back spacing
  • Fits 37 inch x 12.5 inch w/ 20 x 9 tire with 5-5.5 inch back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
To achieve a level to tail low appearance substitute the 5" rear block kit (#013529) for the 4" rear block kit option (# 013429) when customizing your kit. Block kits replace the factory 1-1/4" block
Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #bds_122406
Vehicle Fitment
Year Fitment2020, 2019, 2018, 2017, 2016, 2015
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number1522H
Item Numberbds_1522h
Product LineLift Kits
Lift Height6 inch
