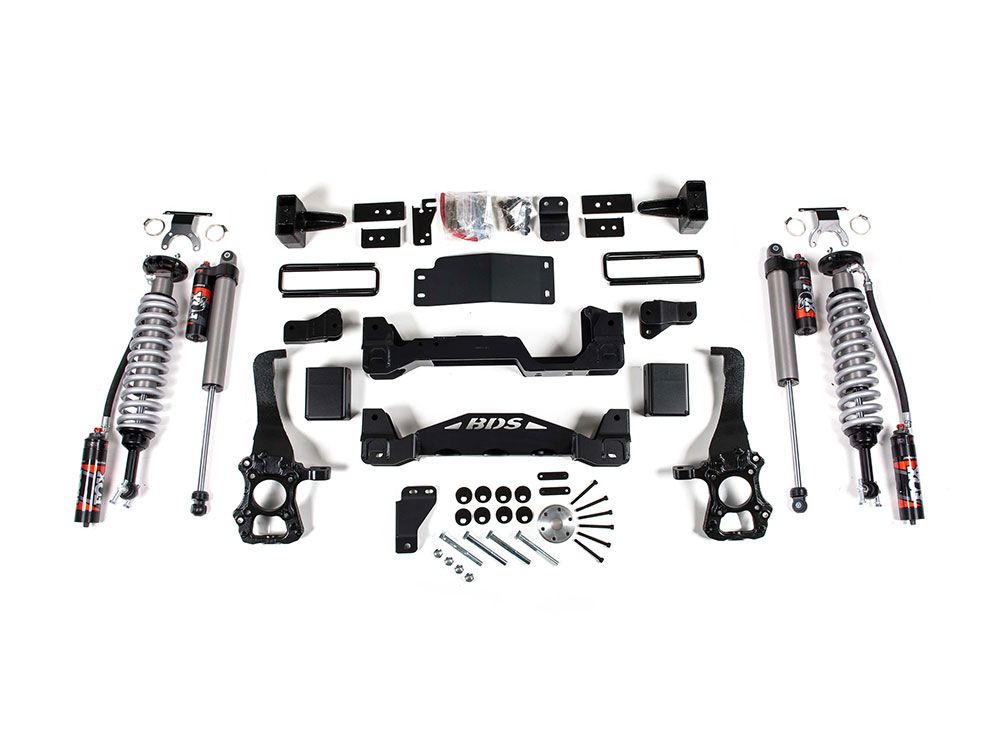

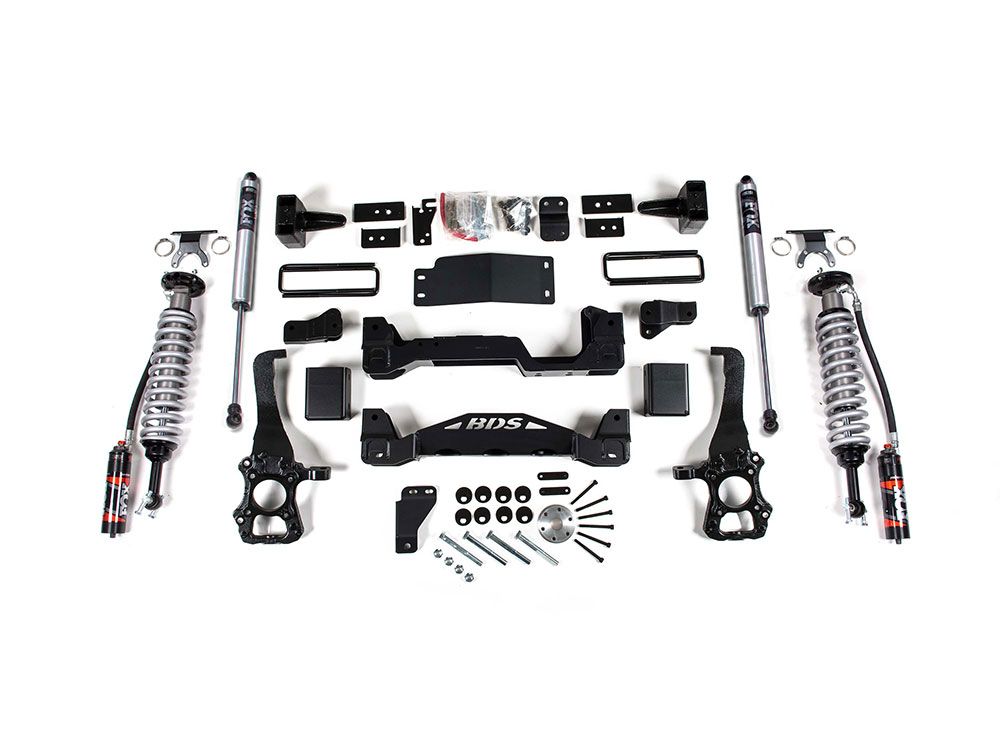

6" 2015-2020 Ford F150 4wd - Fox Performance Elite CoilOver Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1532FPE
$4249.92
- +
4249.92

6" 2015-2020 Ford F150 4wd - Fox Performance Elite CoilOver Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1532FPE
From $4,249.92 Regular Price $4,473.60

6" 2015-2020 Ford F150 4wd - Fox Performance Elite CoilOver Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1532FPE
From $4,249.92 Regular Price $4,473.60


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1532FPE 6 inch premium lift kit for the Ford F150 truck is an awesome suspension upgrade that will not only allow for use of up to 37 inch tires, but also greatly improve ride quality and suspension performance. Featuring Fox 2.5 Performance Elite Series Coilovers, engineered to outperform on and off-road as they soak up any terrain thrown at them. These coilovers are equipped with DSC (Dual Speed Compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression damping so you can dial in the perfect ride performance. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression, allowing you to make large or small changes to further improve performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir, no tools or shop adjustments needed, perfect for the trail!

Complementing the Fox Coilovers BDS utilizes a pair of specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. Paired with a heavy duty front skid plate system, this creates a rigid subframe while adding protection for vital steering and driveline components. Specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility.

The rear this lift replaces the factory rear block with a tall lift block and longer u-bolts to lift and level the stance. Choose between specially tuned Fox 2.0 IFP Performance series gas shocks or match the performance in the front with rear Fox 2.5 Performance Elite Series Shocks with remote DSC reservoirs.

Features and Benefits:

  • Allows for use of up to 37 inch tires
  • Fox Performance Elite 2.5 Remote Reservoir Coil-Overs
  • DSC (dual speed compression) adjustable ride quality w/turn of a dial
  • Improves ride quality and suspension performance
  • 1/4 Inch Steel High Clearance Cross members
  • Heavy Duty Cast Iron Steering Knuckles
  • Belly Pan Skip Plate Included
  • Rear Fox 2.0 Performance Shocks included
  • Rear Blocks and Extended U-bolts
  • Estimated Install Time: 8-10 hours
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Tire & Wheel Combinations:

  • 37x12.50" tires w/20x9" wheels and 5-5.5" backspacing
  • 37x12.50" tires w/18x9" wheels and 5" backspacing
  • 35x12.50" tires w/20x9" wheels and 5" backspacing
    • May require trimming

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes
  • Requires frame bracket modification.
  • 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • Vehicle Fitment
    MakeFord
    ModelF150
    Year Fitment2020, 2019, 2018, 2017, 2016, 2015
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1532FPE
    Item Numberbds_bds1532fpe
    Product LineLift Kits
    Lift Height6 inch
