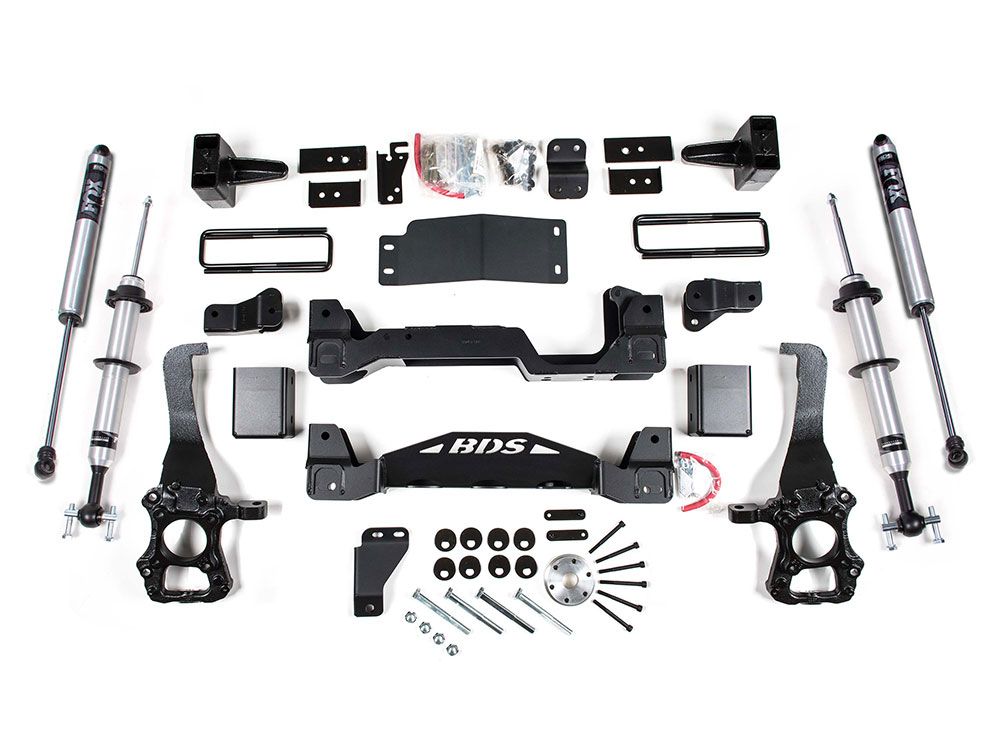

4" 2015-2020 Ford F150 4wd Fox Snap Ring Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1533FSR
Special Price $2,558.87 Regular Price $2,693.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1533FSR 4 inch snap ring coilover suspension lift kit for the Ford F150 truck will allow for fitment of up to 35 inch diameter tires for a great off-road look. Featuring Fox 2.0 performance coilovers that are adjustable in height from 4 inches to 6 inches due to the snap ring grooves. These coilovers utilize the factory coil springs and top plates making this a more affordable coilover lift option.

This lift kit also features 1/4 inch thick steel laser cut high clearance crossmembers that are designed to give maximum clearance and provide a rock solid mounting point for the factory lower control arms. 3 piece heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 3 inch tall axle blocks (replacing factory blocks) with extended ubolts.

Top Features

  • Lifts vehicle 4 inches
  • Fox 2.0 Performance Series Coilovers (uses factory coil springs)
  • 1/4 Inch Steel High Clearance Crossmembers
  • Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • 3 inch rear block replaces factory block for level stance
  • Ductile Iron Heavy Duty Steering Knuckles
  • Multi-Point Front Differential Relocation System
  • Allows use of up 37 inch tires
  • Proudly made in the USA, using only premium quality components
  • Average Install Time: 8-10 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • 37x12.50" w/20 x 9 and 5" backspacing
  • 35x12.50" w/20 x 9 and 5" backspacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes
  • 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory powersteps (123018)
  • Block kits replace factory 1-1/4" block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  • Vehicle Fitment
    MakeFord
    ModelF150
    Year Fitment2020, 2019, 2018, 2017, 2016, 2015
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1533FSR
    Item Numberbds_bds1533fsr
    MPN(UPC)840416402933
    Product LineLift Kits
    Lift Height4 inch
