3.5" 2019-2023 Ford Ranger 4WD Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

Transform the capability and stance of your midsize truck with the BDS 1545FPE / 1906FPE 3.5" Coilover Lift Kit for 2019–2023 Ford Ranger. Designed to deliver strength, performance, and comfort, this system equips your Ranger with FOX 2.5 Performance Elite coil-over shocks featuring DSC (Dual Speed Compression) adjusters, allowing you to dial in ride quality and damping for any terrain. With clearance for up to 33" tires, this kit balances aggressive off-road capability with daily-driver refinement.

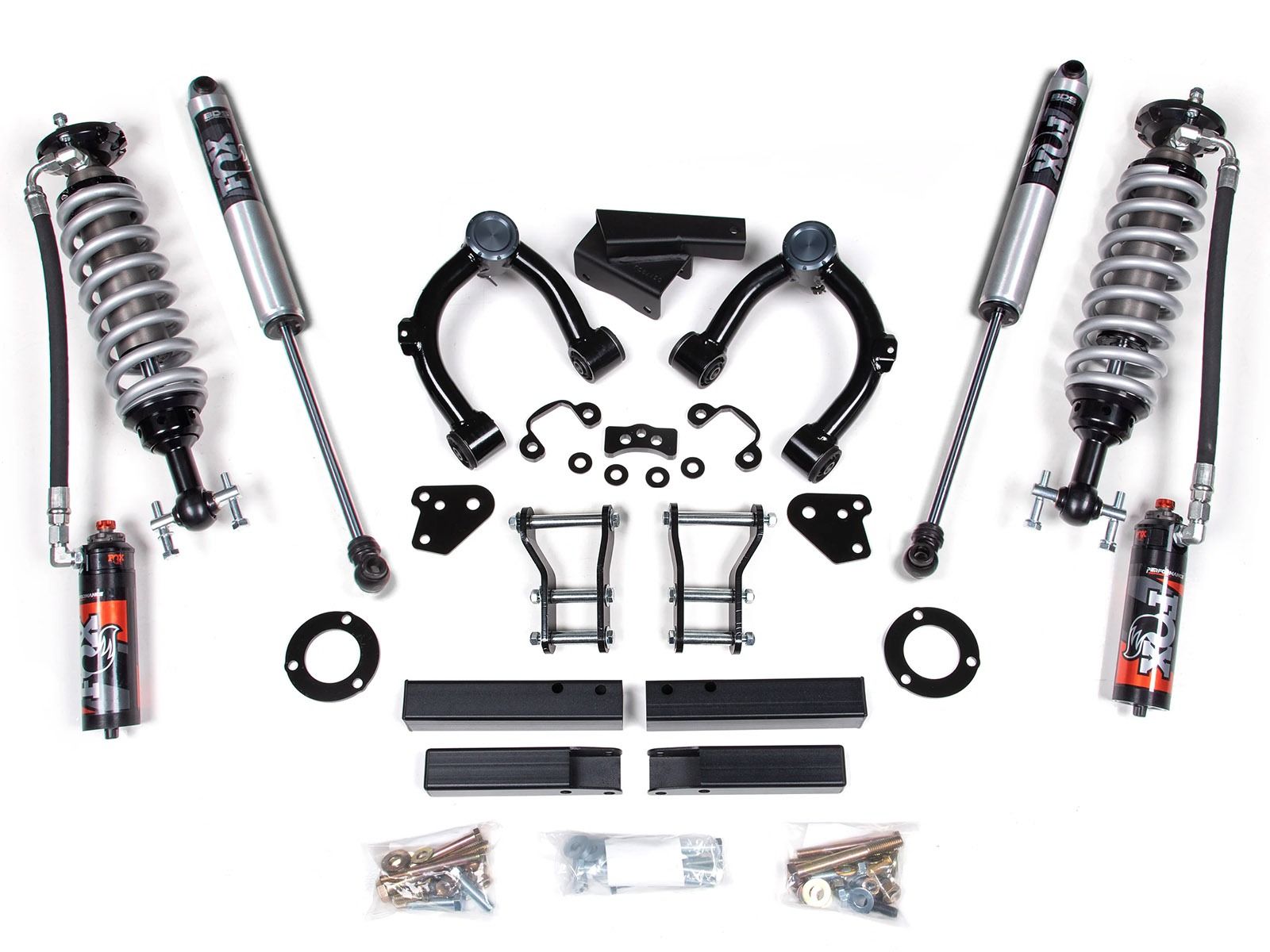

Up front, the system includes steel top-mount strut spacers, preload spacers, differential relocation brackets, and tubular upper control arms (UCAs) engineered for improved geometry and strength. In the rear, heavy-duty lift shackles and custom-tuned FOX shocks complete the package, giving you the confidence to push harder off-road while maintaining smooth on-road handling.

To maintain proper drivetrain angles, the front differential is repositioned with relocation brackets that also allow use of the factory front skid plates. Heavy-duty steering knuckles and high-clearance crossmembers correct suspension geometry while improving ground clearance and ensuring full compatibility with Ford’s ESC system. Like all BDS systems, this kit is Made in the USA and built to take on the toughest conditions.

DSC Adjustment

The FOX 2.5 Performance Elite coil-overs are equipped with DSC adjusters, providing independent tuning of low-speed (10 levels) and high-speed (12 levels) compression damping. Adjustment is quick and easy with clearly marked knobs that offer immediate feedback, allowing you to tailor ride comfort for on-road cruising or dial in aggressive damping for demanding off-road terrain.

HD Upper Control Arms (UCAs)

Built for strength and increased suspension travel, the included UCAs use 1.5" OD x .120-wall tubular steel construction with an indexed ball joint cup to correct joint positioning for added down travel and proper camber adjustment. At the frame end, maintenance-free rubber bushings absorb noise and vibration, while the outer end uses a greaseable premium ball joint for smooth, quiet operation and long-term durability. Arms are finished in a durable black powder coat with billet aluminum dust caps, ready for bolt-on installation right out of the box.

Choose from  Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs), which are included for the rear.

Features & Benefits

• 3.5-inch front lift / 1.5-inch rear lift
• Made in the USA for superior quality and durability.
• FOX 2.5 Performance Elite front coil-over shocks are designed for increased travel and terrain control.
• DSC adjusters for precise, independent low- and high-speed compression tuning.
• High-clearance crossmembers improve strength and off-road capability.
• Heavy-duty steering knuckles correct geometry and maintain ESC compatibility.
• Steel top-mounted strut spacers provide lift and easy installation.
• Differential skid plate adds off-road protection for the front end.
• Rear lift blocks and u-bolts to level stance and add clearance.

Shock Options

• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish
• Fox 2.5 Performance Elite: 2.5-inch aluminum body, 7/8-inch steel shaft, external reservoirs, DSC external ride-adjustment

Recommended Tires & Wheels

(Trimming may be required; fitment varies by wheel offset, tire brand, and factory configuration.)

• 285/65R18 on 18x9 wheels with 5.75" backspacing
• 305/55R20 on 20x9 wheels with 5.0" backspacing

OE Knuckle Type

Ford Rangers from 2019–2023 may be equipped with either cast steel or aluminum steering knuckles. These configurations use different ball joints, so be sure to verify which knuckle your Ranger has before ordering. Reference our help images during kit selection to ensure proper fitment.
