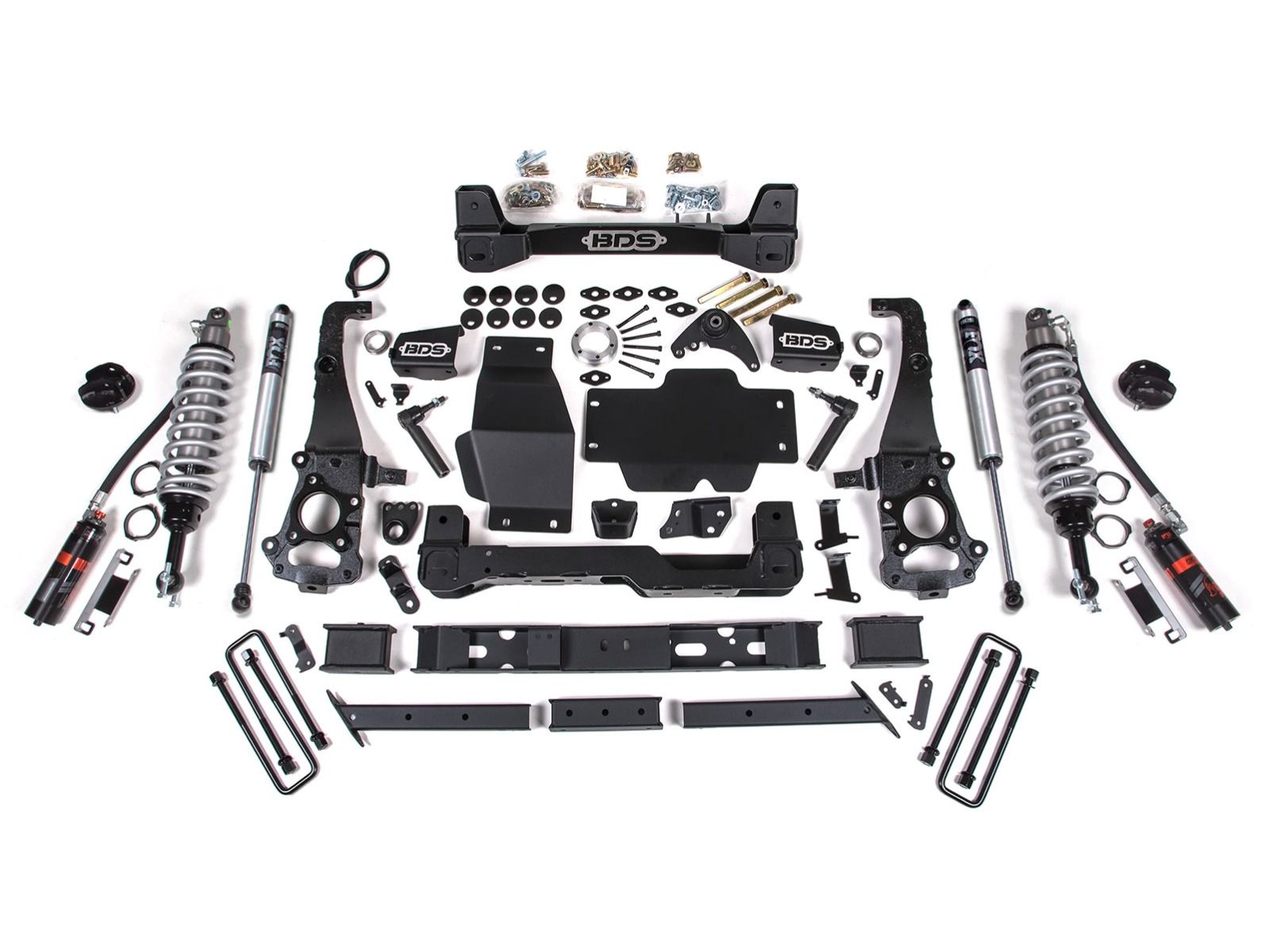

6" 2019-2023 Ford Ranger 4WD Fox Coil-over Lift Kit with Fox Shocks by BDS Suspension

The BDS Suspension BDS1547FDSC 6 inch premium coil-over suspension lift kit for the Ford Ranger truck will allow for fitment of up to 35 inch diameter tires for a great off-road look. This awesome lift kit is built around Fox 2.5 DSC (dual speed compression) remote reservoir coilovers for the ultimate suspension system for on and off-road performance. These coilovers are a direct bolt-in replacement for the factory strut assemblies and include a bolt-in reservoir mounting brackets. Also included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles.

In the rear of the Ranger 3 5/8 inch fabricated lift blocks lift and level the stance. E-coated extended ubolts are included along with rear brake line extension brackets. Fox 2.0 Performance Series rear shocks round out this kit.

The (NHTSA) National Highway Traffic Safety Administration's FMVSS No.126 compliance standards requiring any aftermarket modification to not adversely effect the vehicle's electronic stability control (ESC) system performance in the event of an evasive maneuver. These new kits have been independently tested and certified compliant with these standards with up to 35" tires [as tested on 35x12.50 tires on 18x9 wheels w/ 5" Backspacing].

Features and Benefits:

• 6" front lift, 3 5/8" rear lift for level ride
• Fox 2.5 Factory Series DSC Coilovers for unmatched performance
• Dual speed compresssion adjusters to dial in coilovers dampening
• Fox 2.0 Performance Series Rear Shocks
• 1/4 Inch Steel High Clearance Cross members
• Heavy Duty Front Skid Plate
• High Clearance design max clearance
• Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
• Multi-Point Front Differential Relocation System
• Retains factory ride quality and handling characteristics
• Allows use of up 35 inch tires
• Average Install Time: 8 hours
• Proudly made in the USA, using only premium quality components
• No Fine Print Lifetime Warranty
• FMVSS No. 126 (ESC System) Compliant
• Factory Protection Plus
• Fits 35x12.5 w/20x9 and 5.5 - 6" back spacing
• Fits 305/65R18 w/18x9 and 5" back spacing
• Fits 33x12.5 w/17x9 / 18x9 / 20x9 and 4.5" back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
