6" 2019-2023 Ford Ranger 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1547H / BDS1547FS
From $1,424.93 Regular Price $1,499.93


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1547H 6 inch lift kit for the Ford Ranger is a premium suspension system that will allow use of up to 35 inch diameter tires.This is done withoutsacrificing ride quality and handling while being fully FMWSS 126 complaint.

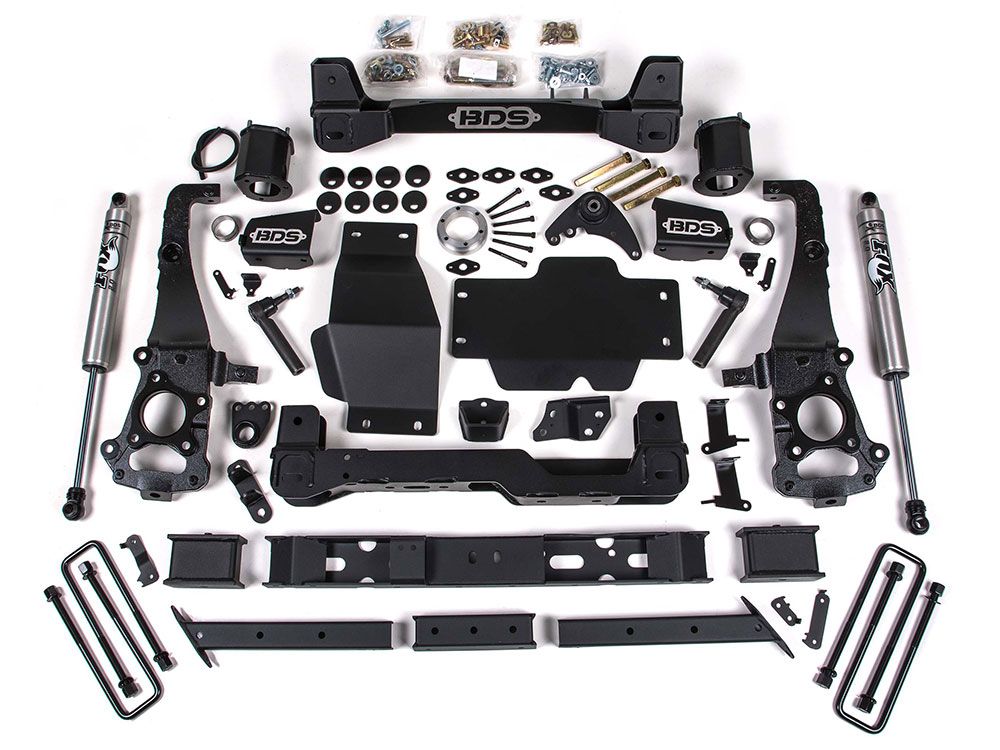

Built around a set of 1/4 inch thick steel laser cut high clearance cross members that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. Front strut spacer give additional height to the vehicle. 3 piece heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 3 5/8 inch tall axle blocks with extended u-bolts.

Features and Benefits:

  • Lifts vehicle 6 inch front / 3 5/8 inch rear (levels vehicle)
  • 1/4 Inch Steel High Clearance Cross members
  • Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Strut spacer + preload to provide lift without overextending CVs at full droop
  • Retains factory ride quality and handling characteristics
  • Allows use of up 35 inch tires
  • Average Install Time: 8 hours
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • Fits 35x12.5 w/20x9 tires and 5.5 - 6" back spacing
  • Fits 305/65R18 w/18x9 tires and 5" back spacing
  • Fits 33x12.5 w/17x9 / 18x9 / 20x9 tires and 4.5" back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes
  • Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
  • Stock 17-18” wheels cannot be reinstalled.
  • When balancing tires for 17-18” wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
  • >
  • Rack & Pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing or tires that require several wheel weights may induce steering wheel wobble.
  • Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering.
  • Vehicle Fitment
    MakeFord
    ModelRanger
    Year Fitment2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1547H / BDS1547FS
    Item Numberbds_bds1547H
    MPN(UPC)840416403312
    Product LineLift Kits
    Lift Height6 inch
