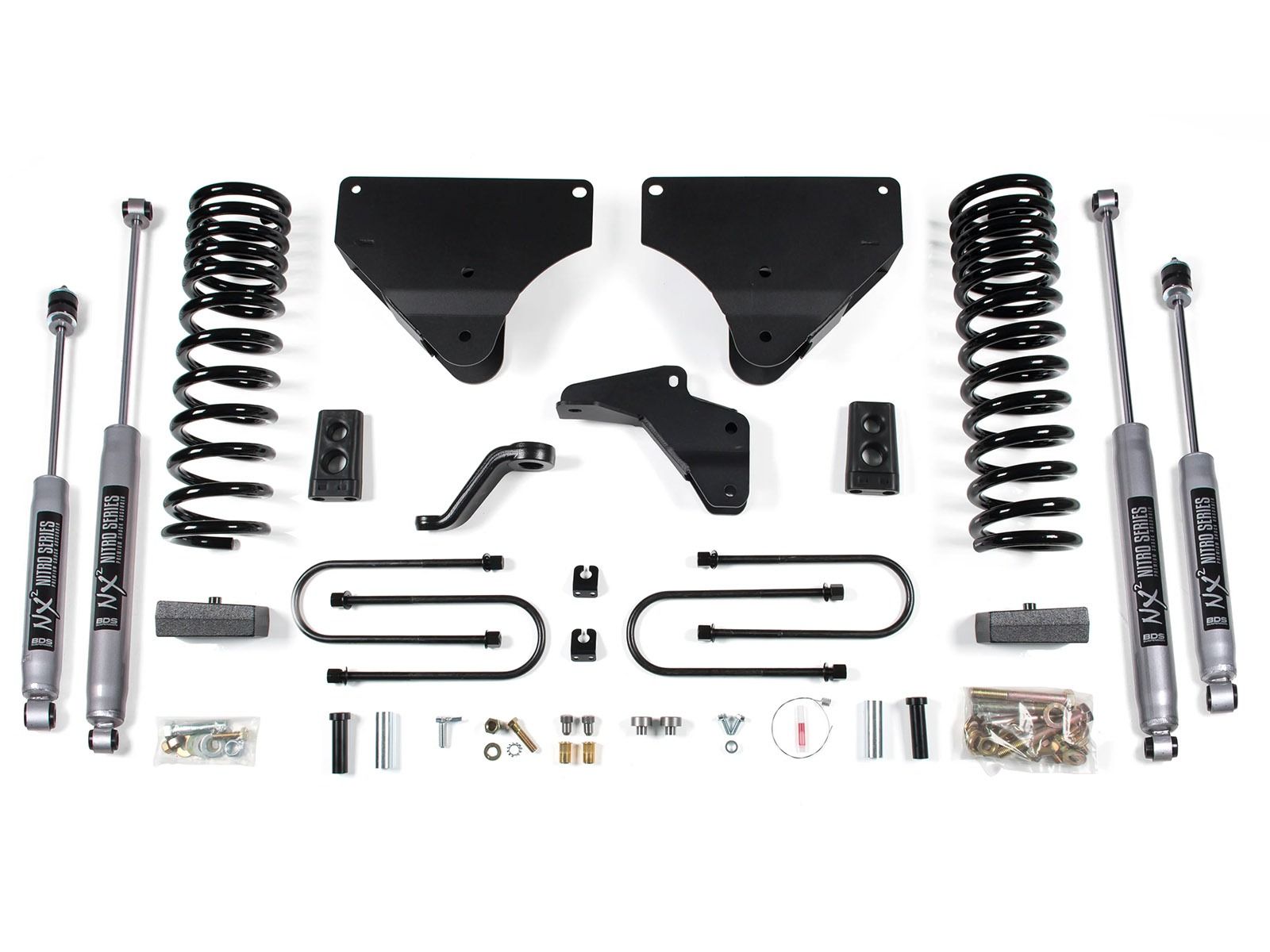

4" 2013-2018 Dodge Ram 3500 4WD (w/gas engine) Lift Kit by BDS Suspension

The BDS Suspension BDS1612H 4-inch lift kit for the 2013 through 2018 Dodge Ram 3500 is a great solution to fit larger-diameter tires and give your truck a great new look. In this kit the radius arms are relocated with a uniquely designed bracket that mixes the ease of installation with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket.

The new relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail. At the frame, the new mount is fastened with specially machined sleeves and threaded inserts.

In addition to the radius arm relocation, the kit includes everything else to lift the Ram 3500s properly. Track bar relocation, dropped pitman arm, and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate and full replacement coil springs. Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 1-ton truck, and work properly with the unique factory coil mounts at the frame and axle.

The rear lift is accomplished with rear axle blocks and extended U-bolts.

Choose from BDS NX2 Nitro shocks or Fox 2.0 Performance Series shocks.

All possible SKUs depending on options selected: BDS1612H BDS1612FS BDS1779H BDS1779FS

Features and Benefits:

• 4 inch front lift / 2 inch or 3 inch rear lift
• Allows use of up to 37 inch diameter tires
• Heavy Duty Radius Arm Relocation Brackets
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation
• Average install time: 5 hours
• Choose from BDS NX2 or Fox 2.0 Performance IFS Shocks
• Made in the USA using Premium Components
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 12.5 inch w/ 17, 18 tires and 19 x 9 and 5.625 inch backspacing
• Fits a 35 inch x 12.5 inch w/ 17, 18 tires and 19 x 9 and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
