4" 2013-2018 Dodge Ram 3500 4WD Radius Arm Lift Kit by BDS Suspension

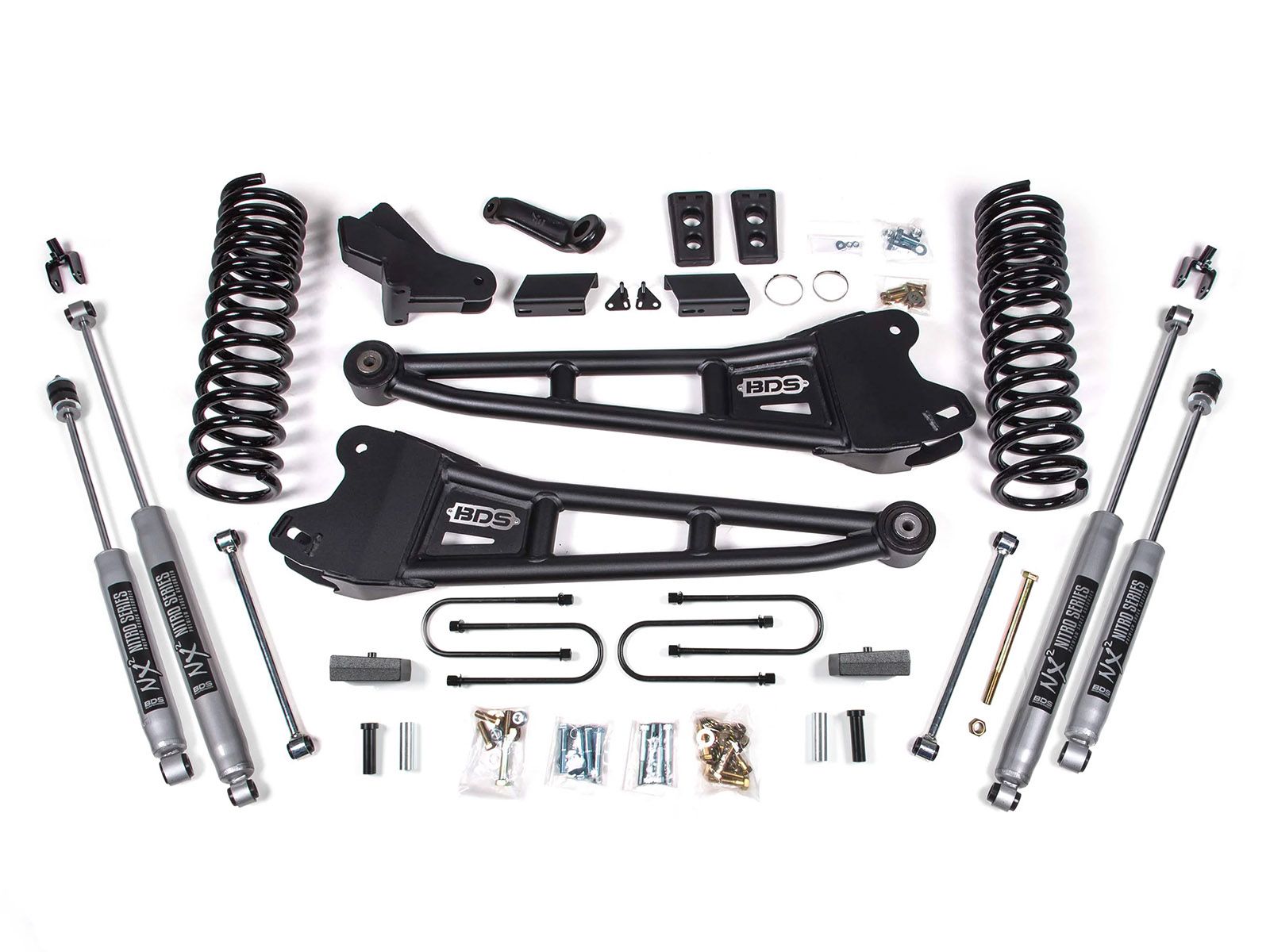

The BDS Suspension BDS1794H / BDS1794FS 4-inch Radius Arm lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37-inch tires. Up front, this system utilizes a pair of progressive rate 4" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy-duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

Choose from Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), BDS NX2 Shocks (Nitro Gas), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs), which are included for the front and rear.

In the rear, 3" blocks and u-bolts are supplied to lift and level the stance.

All possible SKUs depending on options selected: BDS1794H, BDS1794FS, BDS1794FPE, BDS1795H, BDS1795FS, BDS1795FPE

Features and Benefits:

• 4-inch front lift / 3-inch rear lift
• Allows use of up to 37-inch diameter tires
• Radius Arm upgrade improves handling
• Premium quality components
• Progressive Rate Front Pro-Ride Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 6-7 hours
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 12.50 inch tires w/20 inch x 9 and 5.625 inch backspacing
• Fits a 35 inch x 12.50 inch tires w/20 inch x 9 and 4.5 inch backspacing

  • *Trimming may be required*

Shock Options

• BDS NX2 Nitro: Nitro-charged, twin-tube design, steel body with Silver powder coat finish
• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish
• Fox 2.5 Performance Elite: 2.5-inch aluminum body, 7/8-inch steel shaft, external reservoirs, DSC external ride-adjustment

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
