3" 2013-2018 Dodge Ram 3500 4WD (w/diesel engine) Radius Arm Lift Kit by BDS Suspension

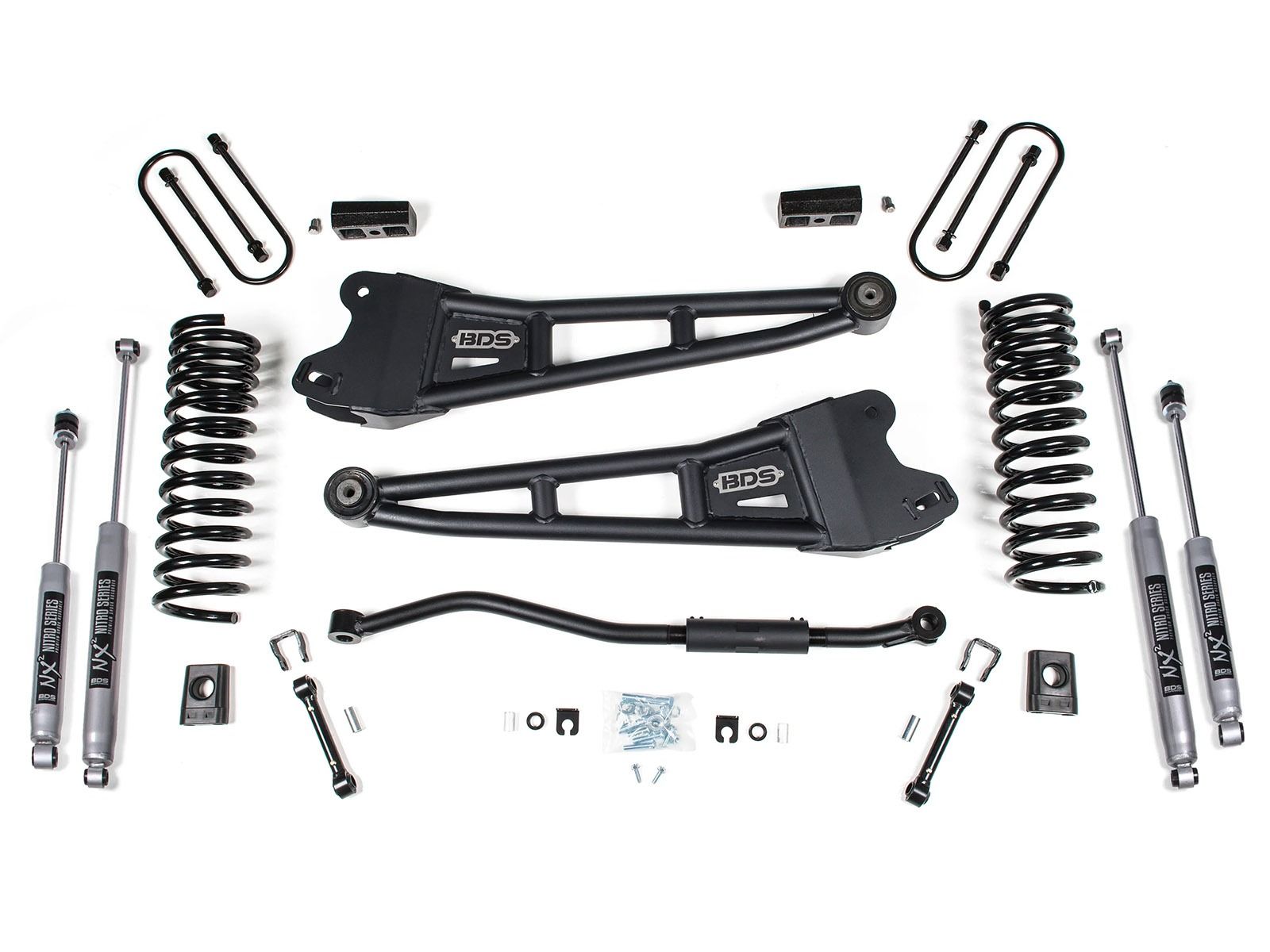

This BDS Suspension BDS1622H / BDS1622FS / BDS1622FPE 3-inch lift kit for the 2013 through 2018 Ram 3500 is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory-style rubber bushing mount at the frame to keep the NVH levels in check. The 3-1/4" diameter bushings are enormous and have a long, maintenance-free service life. The new radius arms mount right into the factory locations, so installation is simple and clean. Factory alignment adjustability is maintained using the OE eccentric adjusters. The arm geometry is set to keep the axle angle in the factory specs while compensating for the 3" of lift. A copper-anodized aluminum BDS nameplate is mounted on each arm.

3-inch lift front coil springs improve the ride and handling for both on and off-road conditions. A heavy-duty turnbuckle-style adjustable track bar is included to center the axle. BDS greaseable front sway bar links reset the sway bar to the optimum angle and round out the main front components. Add in the front brake line relocation brackets and a choice of BDS NX2 or FOX 2.0 Performance Series shocks, and this system is set to handle any terrain.

The rear system is a simple 2" block and U-bolt setup to level the back with the newly lifted front.

Choose from Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), BDS NX2 Shocks (Nitro Gas), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs), which are included for the front and rear.

Features and Benefits:

• Lifts vehicle 3-inch front / 2-inch rear
• Allows use of up to 35-inch diameter tires
• Heavy Duty Tubular Replacement Radius Arms
• Progressive Rate Front Coil Springs
• Front Turnbuckle Adjustable Track Bar
• Average install time: 5 hours
• Made in the USA using only Premium Components
• No Fine Print Lifetime Warranty
• Fits a 35" x 12.50 w/17" x 9" tires and 5" back spacing
• Fits a 35" x 12.50" w/18" x 9" tires and 4.5 back spacing
• Fits a 35" x 12.50" w/20" x 9" tires and 4.5 back spacing

Shock Options

• BDS NX2 Nitro: Nitro-charged, twin-tube design, steel body with Silver powder coat finish
• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish
• Fox 2.5 Performance Elite: 2.5-inch aluminum body, 7/8-inch steel shaft, external reservoirs, DSC external ride-adjustment

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
