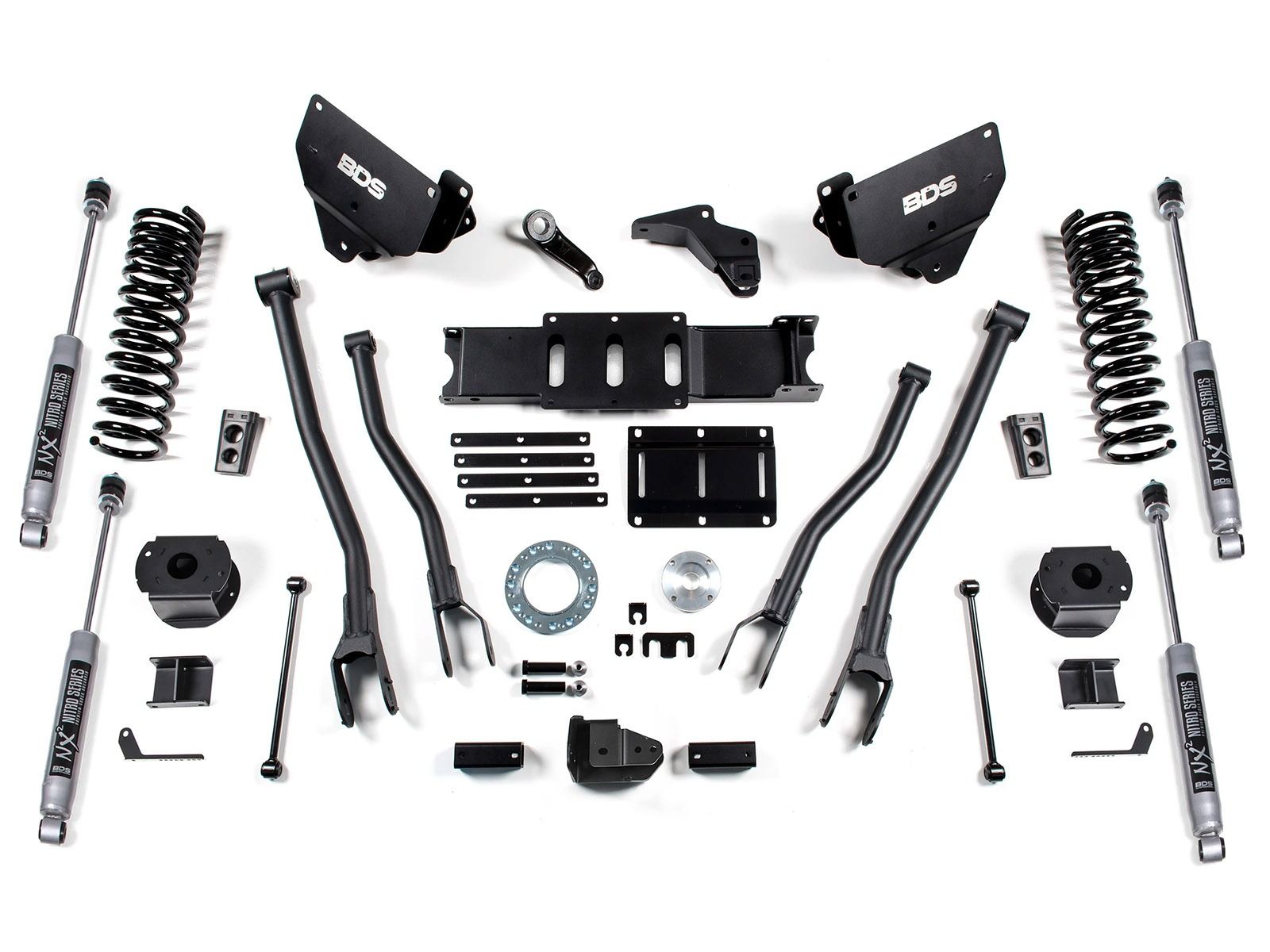

5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine & factory air ride) 4-Link Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1630H
$2512.28
- +
2512.28

5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine & factory air ride) 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1630H
From $2,512.28 Regular Price $2,563.55

5.5" 2014-2018 Dodge Ram 2500 4wd (w/gas engine & factory air ride) 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1630H
From $2,512.28 Regular Price $2,563.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1630H / BDS1630FS 8 inch 4-link premium lift kit for the 2014 thru 2018 Dodge Ram 2500 diesel is an awesome way to upgrade your suspension and fit up to 40 inch tires. The design for these kits starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required. The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with our radius arm brackets, there is a minor amount of welding required to install the threaded frame insert (1 per side). This insert is necessary to provide the strongest possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering 'feel', especially in rough terrain when the suspension is allowed to travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.

The new Pro Ride front coil springs are dual rate in order to provide excellent on road ride and off-road performance. Transfer case indexing kit, Track bar relocation, a dropped pitman arm, sway bar end links and stainless brake lines round out the front portion of the system.

The rear is lifted using Pro-Ride coil springs that are mounted outward 8 inches on each side to increase ride stability. The rear track bar relocation includes a new heavy-duty adjustable track bar. The track bar uses high-durometer polyurethane bushings at the frame and an adjustable forged COM bearing joint at the axle. Extended rear sway bar links round out the rear suspension components. Rounding out the rear of this kit is your choice of BDS NX2 or Fox 2.0 performance gas shocks.

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • 4-Link upgrade improves handling
  • Premium quality components
  • Progressive Rate Front Coil Springs
  • Forged Drop Pitman Arm
  • Front & Rear Track Bar Relocation Brackets
  • Rear coil springs are mounted outward 8 inches for increased stability
  • Transfer case indexing kit
  • Average install time: 6-8 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 12.5 inch w/ 17, 18, 20 inch x 9 tires and 5.625 inch backspacing
  • Fits a 37 inch x 13.5 inch w/ 17, 18, 20 inch x 9 tires and 4.5 inch backspacing

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Important Notes
  • May require exhaust modification to clear the front driveshaft.
  • DOES NOT FIT 6.4L Hemi without extensive exhaust modifications. Contact Tech Support Prior to ordering for details.
  • Will not fit RAM 2500 Power Wagon models
  • Will not fit rear coil spring models
  • Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit #122406
  • Vehicle Fitment
    MakeDodge
    ModelRam 2500
    Year Fitment2018, 2017, 2016, 2015, 2014
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1630H
    Item Numberbds_bds1630h
    Product LineLift Kits
    Lift Height5.5 inch
    EngineGas
