4" 2019-2024 Dodge Ram 3500 4WD (w/Diesel Engine) Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1656H
$2016.42
- +
2016.42

4" 2019-2024 Dodge Ram 3500 4WD (w/Diesel Engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1656H
From $2,016.42 Regular Price $2,122.55

4" 2019-2024 Dodge Ram 3500 4WD (w/Diesel Engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1656H
From $2,016.42 Regular Price $2,122.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

BDS Suspension's BDS1656H Radius Arm Lift Kit for the Dodge Ram 3500 4wd will raise your vehicle 4 inches, which will allow the use of 37-inch tires (depending on installed wheels) to improve off-roading performance while keeping excellent handling and ride quality.

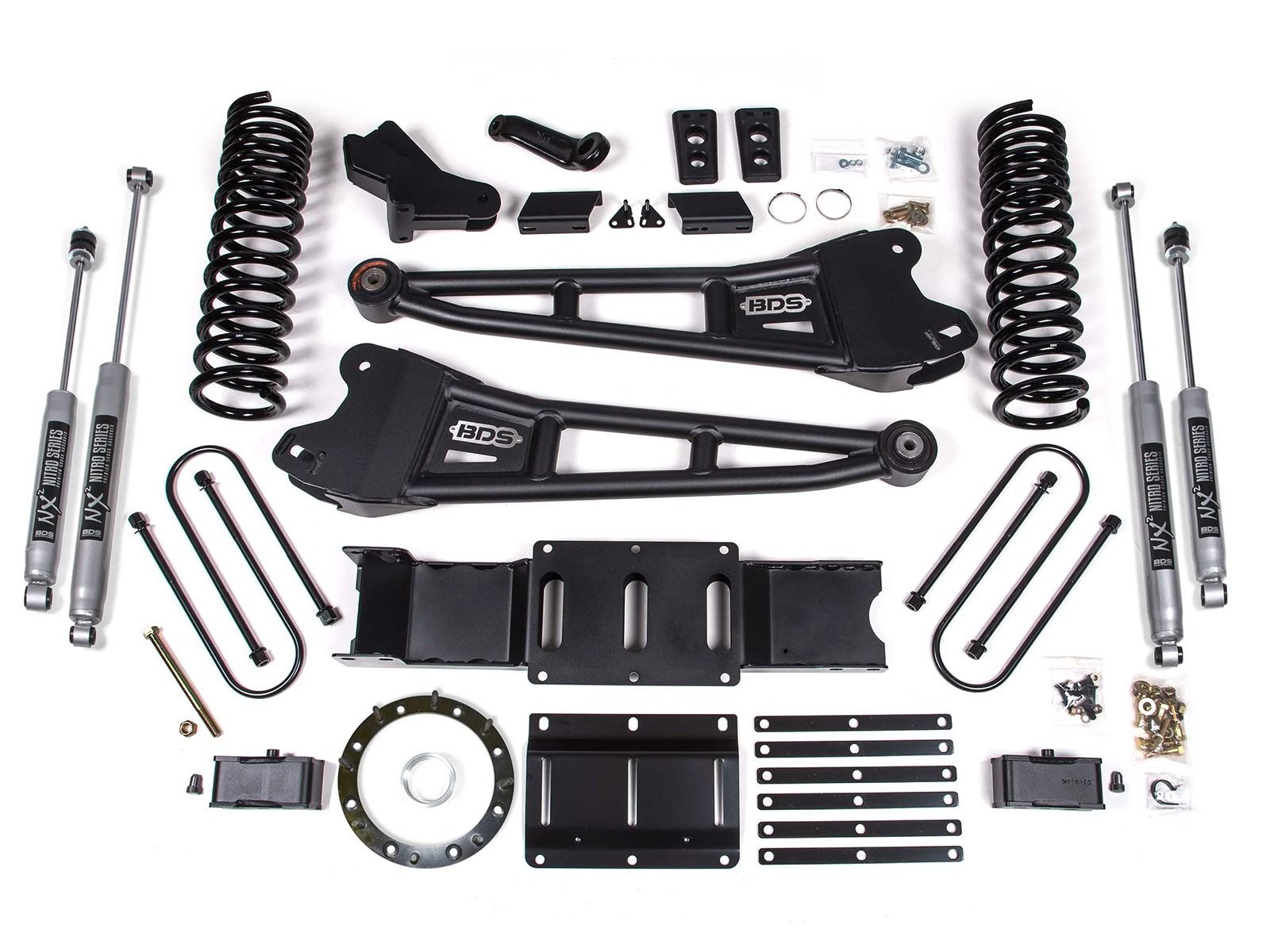

This premium quality suspension lift kit is built around heavy-duty radius arms, front and rear progressive rate coil springs, and your choice of BDS or Fox gas shocks. The coil springs are designed to maintain a comfortable ride while also being able to handle the most harsh off-road conditions. Massive tubular radius arms that bolt in the factory mount support the front suspension's geometry. A forged drop pitman arm keeps steering angles in check while a track bar relocation bracket centers the front axle. Proper front driveline angles are preserved using a heavy-duty transmission cross member and a transfer case indexing ring. Also included are front sway bar drop brackets and extended bump stops. The vehicle's rear uses 3-inch lift blocks with extended U-bolts to give the Ram a level stance.

All possible SKUS depending on options selected: BDS1656H, BDS1656FS, BDS1657H, BDS1657FS, BDS1658H, BDS1658FS, BDS1659H, BDS1659FS

Features and Benefits:

  • Lifts vehicle 4-inch front / 3-inch rear
  • Allows use of up to 37-inch diameter tires
  • Massive Replacement Tubular Radius Arms
  • Progressive Rate Front Coil Springs
  • Rear 3-inch Lift Blocks & Extended U-bolts
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Extended Bump Stops
  • Front driveline angles maintained with new transmission cross member & reindexing ring
  • Average Install Time: 8 hours
  • Choose from BSD NX2 or Fox 2.0 Performance IFP Shocks
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits a 37 x 12.50 tire w/17x9, 18x9, 20x9 and 5.625 inch backspacing
  • Fits a 35 x 12.50 tire w/17x9, 18x9, 20x9 and 4.5 inch backspacing
    • *May Require Trimming*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info

Important Notes
  • T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
  • Image shown with Fox 2.0 Performance Shocks
  • Will not fit models equipped with rear air-ride suspension
  • Vehicle Fitment
    MakeDodge
    ModelRam 3500
    Year Fitment2024, 2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1656H
    Item Numberbds_bds1656h
    Product LineLift Kits
    Lift Height4 inch
    EngineDiesel
