4" 2019-2024 Dodge Ram 3500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

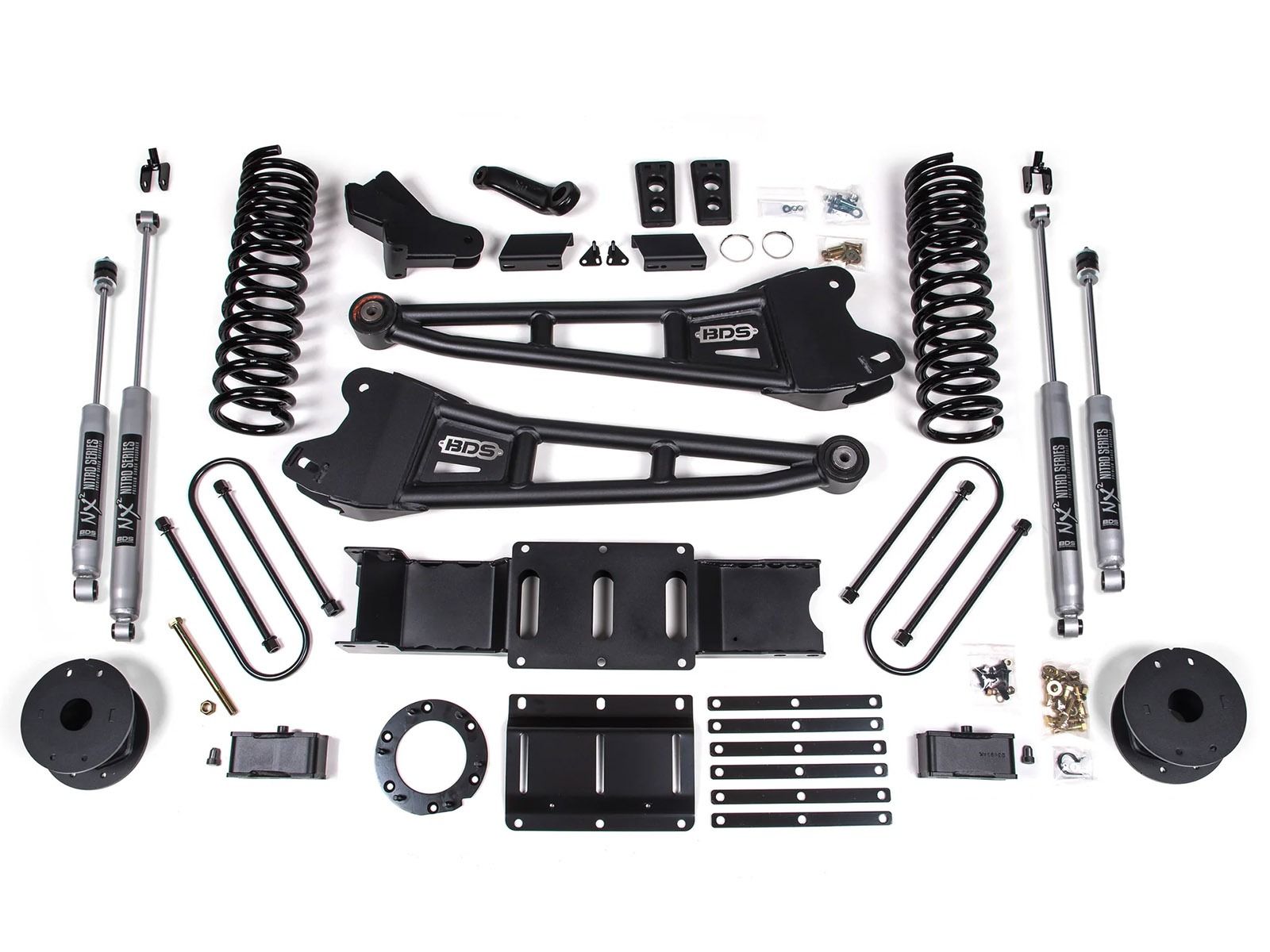

The BDS Suspension BDS1718H / 1718FS 4-inch Radius Arm lift kit for the Dodge Ram 3500 is an excellent way to upgrade your suspension and fit up to 37-inch tires. This kit retains full functionality of the factory rear air-ride and on-road comfort while improving your truck's off-road capability. This system utilizes progressive rate 4" coil springs, providing extra ride height and smooth, controlled performance in the harshest terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar and extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy-duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

You choose BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 4" of suspension lift, it is critical to correct the front driveline angle to maintain the use of the 4WD capabilities. To achieve this, the BDS suspension provides a replacement transmission cross member and a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

In the rear, 3" blocks and u-bolts are supplied to lift and level the stance, along with heavy-duty air bag spacer brackets. BDS maintains air ride leveling sensors by repositioning them with brackets in the kit.

All possible SKUs based on options selected: BDS1718H, BDS1718FS, BDS1719H, BDS1719FS

Features and Benefits:

• Allows use of up to 37-inch diameter tires
• Radius Arm upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 6-7 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 12.50 inch tires w/20 inch x 9 and 5.625 inch backspacing
• Fits a 35 inch x 12.50 inch tires w/20 inch x 9 and 4.5 inch backspacing

  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. They guarantee all products are free from material defects and workmanship to the original retail purchaser. If you break it, they replace it...period.
