4.5" 2019-2024 Dodge Ram 3500 (w/Diesel Engine) 4WD Radius Arm Lift Kit by Zone

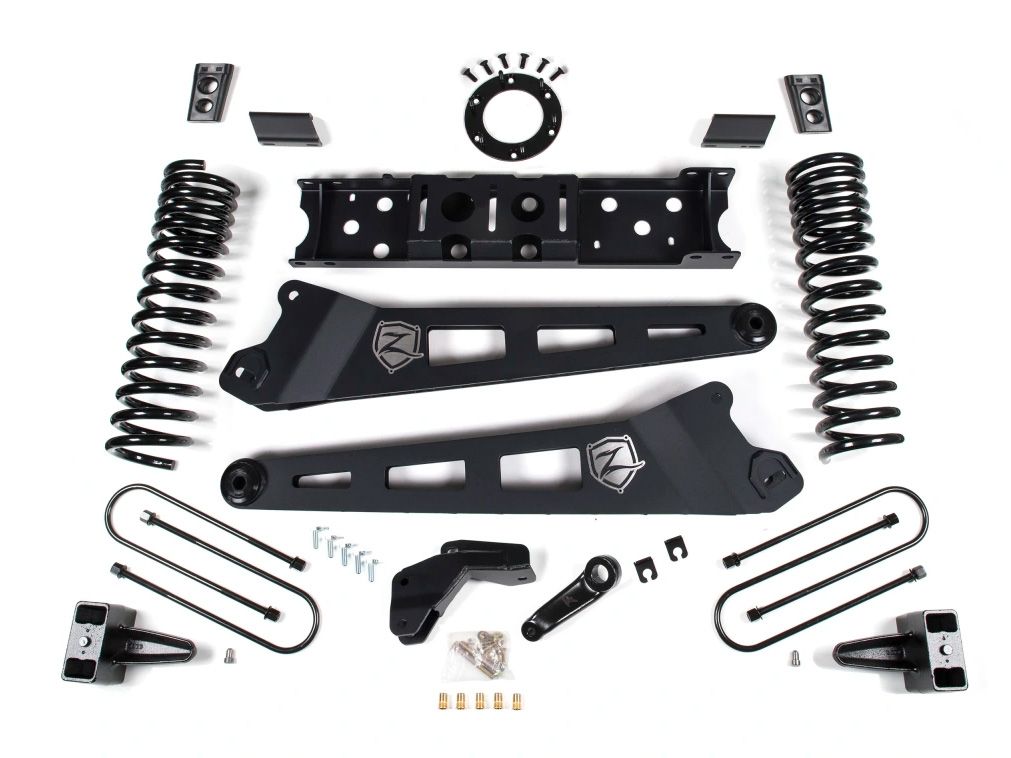

This Zone D80 thru D87 4.5 inch lift kit for the Ram 3500 features new internally gusseted radius arms, made from 1/4 inch steel with a lower cam adjustment bolt to dial in front end caster. These arms are desiged to correct front end geometry aned bolt to the factory mounts. Progressive rate front coil springs lift the front end for a smooth and controlled ride. A forged drop pitman arm to correct steering angles is included along with a HD bar drop bracket to recenter the front axle. Aso included are a pair of sway bar drop brackets to relocate the factory sway bar for optimal performance along with extended poly bump stops to limit up travel and brake line brackets to allow full droop. To Correct front end driveline angles a heavy duty replacement transmission crossmember is use and a transfer case indexing ring repositions the driveline output.

The rear end is lifted using 2 inch or 3 inch rear blocks.

Choose between custom tuned Zone Nitro Series shocks or Fox Adventure Series shocks. Both models improve ride and performance.

Top Features and Benefits

• Lifts Front End 4.5 inches / Rear 2 or 3 Inches
• Allows for use of up to 37 inches
• Heavy Duty 1/4 inch steel, internally gusseted radius arms
• Progressive rate front coil springs for a great ride
• Front track bar relocation bracket centers front axle
• Forged drop pitman rm to correct steering angles
• HD Transmission crossmember and t-case indexing raing to correct front driveline angles
• Limited Lifetime Warranty
• Average Install time: 7 to 8 hours
