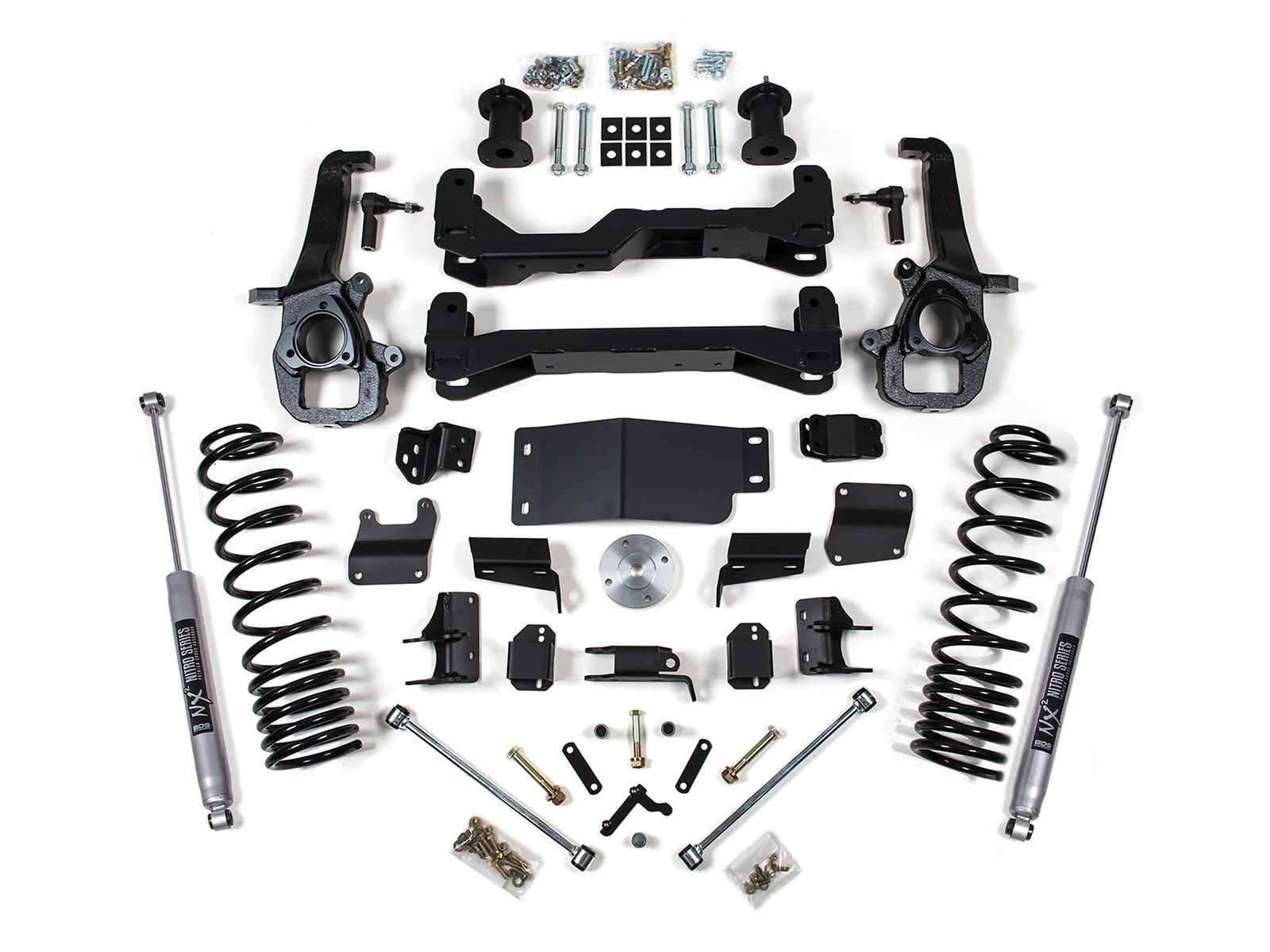

4" 2019-2024 Dodge Ram 1500 4WD Lift Kit by BDS Suspension

The BDS Suspension BDS1663H / BDS1663FS 4-inch suspension lift kit for the Dodge Ram 1500 4WD truck will allow for the fitment of up to 35-inch diameter tires for an amazing off-road look. This is done without sacrificing ride quality and handling.

This premium quality suspension lift kit is built around a set of 1/4 inch thick steel laser cut high clearance crossmembers that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. The front strut spacer gives additional height to the vehicle. 3-piece heavy-duty front skid plates connect the cross members while protecting steering and drive line components. Correct steering geometry is maintained using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The factory front driveshaft is maintained with the use of a billet aluminum driveshaft spacer.

The rear end is lifted using 3-inch tall ProRide coil springs intended to level the truck. Proper geometry is maintained with the use of control arm relocation brackets, a rear track bar drop bracket (centers rear axle), extended sway bar end links, and bump stop extensions. Choose between BDS NX2 gas shocks or Fox 2.0 Performance rear shocks.

Features and Benefits:

• Lifts vehicle 4-inch front / 3-inch rear
• 1/4 Inch Steel High Clearance Cross Members
• 3 Piece Heavy Duty Front Skid Plate
• High Clearance design max clearance
• Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
• Multi-Point Front Differential Relocation System
• Allows use of up to 35-inch tires
• Average Install Time: 10 hours
• Proudly made in the USA, using only premium quality components
• Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits a 35" x 12.50" tire w/17x9 and 4.5" back spacing
• Fits a 35" x 12.50" tire w/18x9 and 5" back spacing
  • *Trimming may be required*

All Possible SKUs Depending on Options Selected: BDS1663H, BDS1663FS, BDS1664H, BDS1664FS

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info
