4" 2019-2024 Dodge Ram 3500 4WD (w/gas engine) 4-Link Lift Kit by BDS Suspension

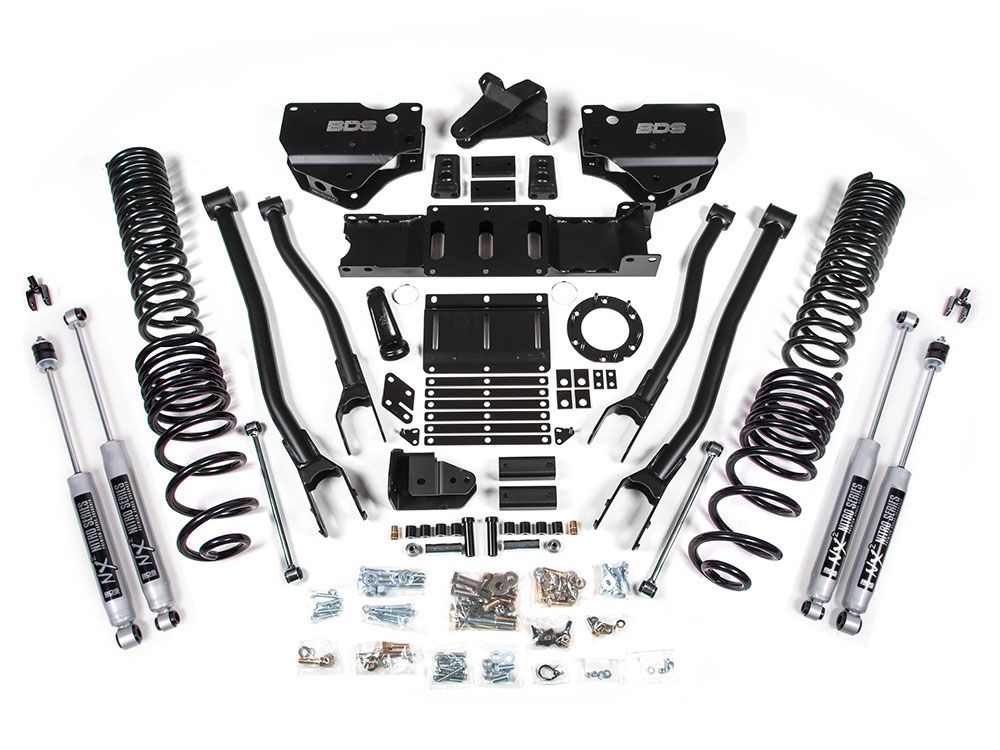

The BDS Suspension BDS1676H 4-inch 4-Link lift kit for the Dodge Ram 3500 is a terrific way to upgrade your suspension and fit up to 37-inch tires. The design for these kits starts with two massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets are located off the factory radius arm brackets; no factory bracket removal is required. Designed to improve performance and looks, enhancing strength and handling on/off-road. Coil springs provide extra height and smooth, controlled performance in the harshest terrains. A forged drop pitman arm corrects steering angles, and an HD bar drop bracket to re-center the front axle. Sway bar drop brackets reposition the OE sway bar, optimizing performance and extended polyurethane bump stops, limiting up travel and brake line brackets, allowing full suspension droop.

To improve ride quality and performance, you can choose BDS NX2 Niro Gas (2-inch steel body), Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body). Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Correcting the front driveline angle at 4" of lift is critical to maintaining the use of the 4WD. To accomplish this, BDS Suspension provides a heavy-duty replacement transmission cross member and a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

Features and Benefits:

• 4-inch front lift / 2-inch or 3-inch rear lift
• Allows use of up to 37-inch diameter tires
• The 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 7-8 hours
• Choose from BDS NX2 Nitro Gas Shocks (2-inch steel body), Fox 2.0 Performance Shocks (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.5 inch tires w/ 17/18/20 inch x 9 and 5.625 inch backspacing
• Fits a 35 inch x 12.5 inch tires w/ 18/18/20 inch x 9 and 4.5 inch backspacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
