6" 2019-2024 Dodge Ram 3500 4WD (Diesel Models) Radius Arm Lift Kit by BDS Suspension

BDS Suspension's BDS1682FS / BDS1682H 6 inch Radius Arm Lift Kit for the 2019-2024 Dodge Ram 3500 4wd will raise your vehicle 6 inches, which will allow the use of 37-inch tires to improve off-roading performance while keeping excellent handling and ride quality.

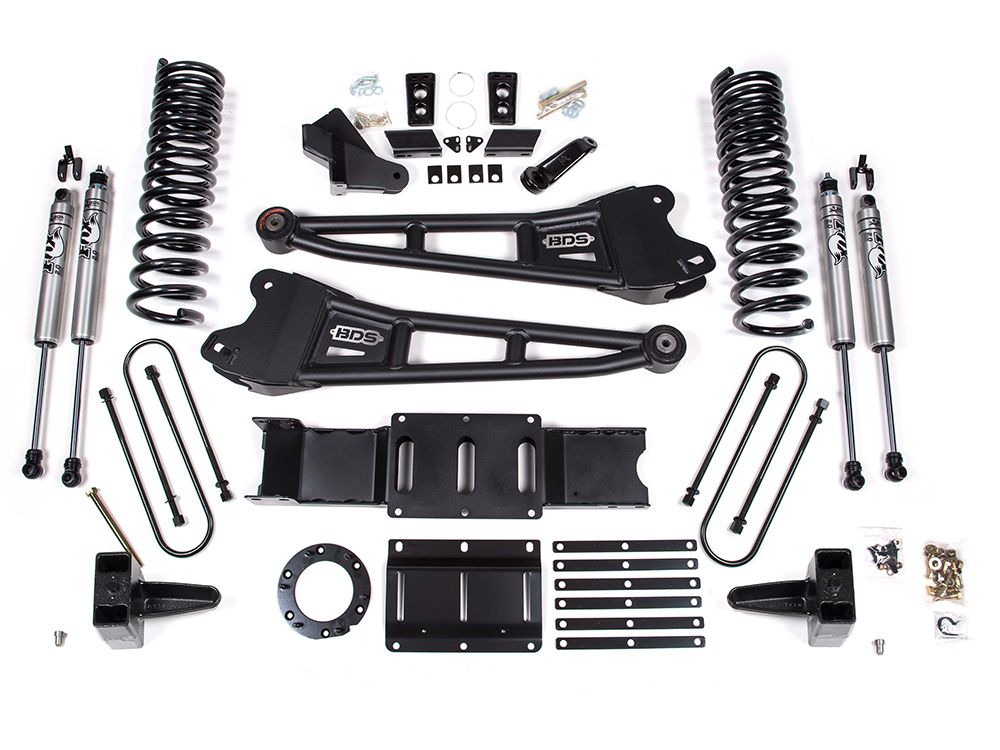

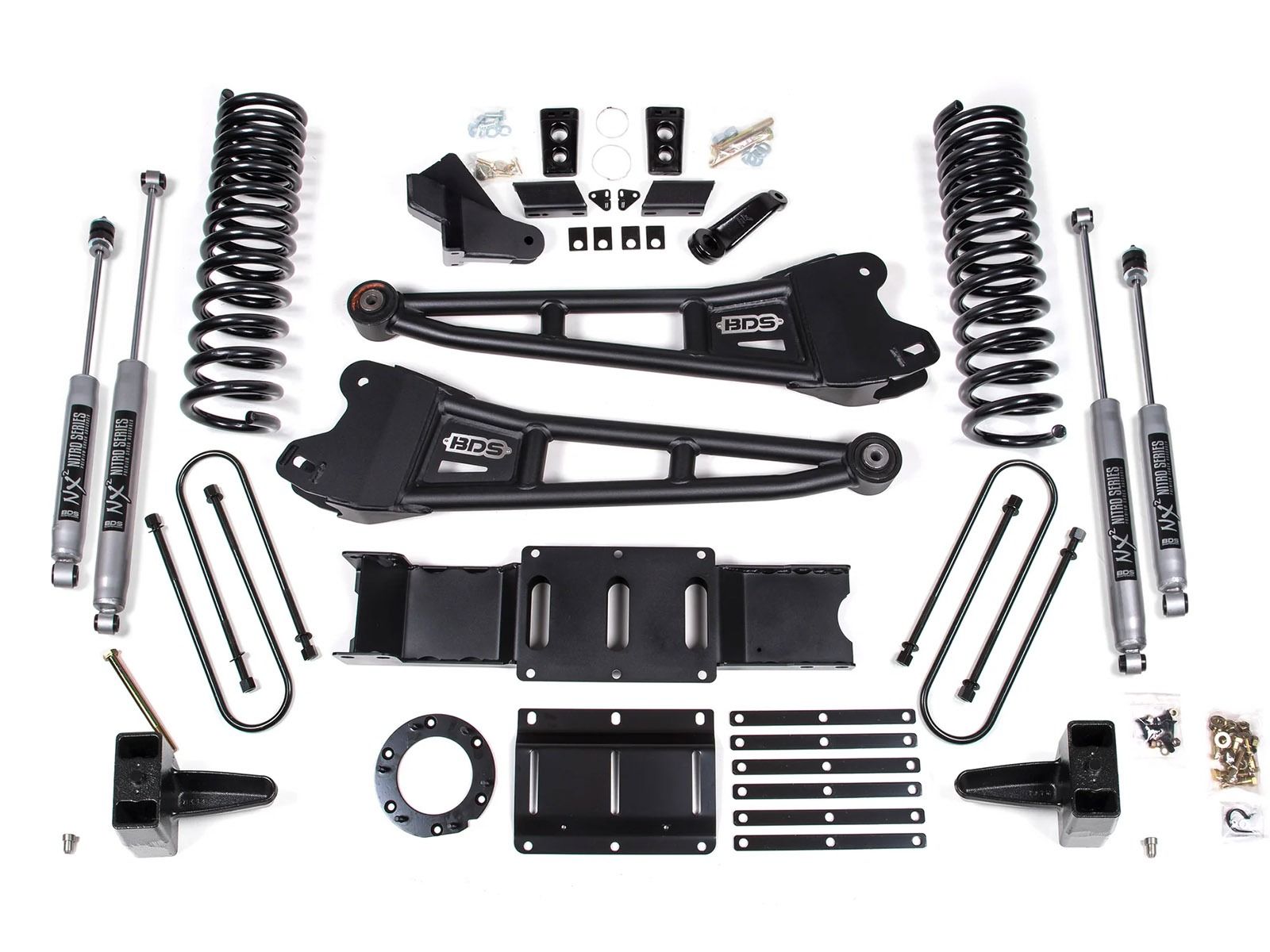

This premium quality suspension lift kit is built around heavy-duty radius arms, front and rear progressive rate coil springs, and your choice of BDS or Fox gas shocks. The coil springs are designed to maintain a comfortable ride while also being able to handle the most harsh off-road conditions. Massive tubular radius arms that bolt into the factory mounts are used to maintain the front suspension's geometry. A forged drop pitman arm keeps steering angles in check while a track bar relocation bracket centers the front axle. Proper front driveline angles are preserved using a heavy-duty transmission cross member and a transfer case indexing ring. Front sway bar drop brackets and extended bump stops are also included.

You can choose BDS NX2 gas shocks, Fox 2.0 Performance Series IFP gas shocks, or 2.5 Performance Elite remote reservoir adjustable shocks to improve ride quality and performance. Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

The rear system is a simple 5" block and U-bolt setup to level out the back with the newly lifted front.

Features and Benefits:

• Lifts vehicle 6-inch front / 5-inch rear
• Allows use of up to 37-inch diameter tires
• Massive Replacement Tubular Radius Arms
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Extended Bump Stops
• Front driveline angles maintained with new transmission cross member & reindexing ring
• Average Install Time: 8 hours
• Choose from BDS NX2, Fox 2.0 Performance or Fox 2.5 Performance Elite Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Made in the USA using only Premium Components

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
