5.5" 2019-2024 Dodge Ram 3500 4WD (w/gas engine) 4-Link Lift Kit by BDS Suspension

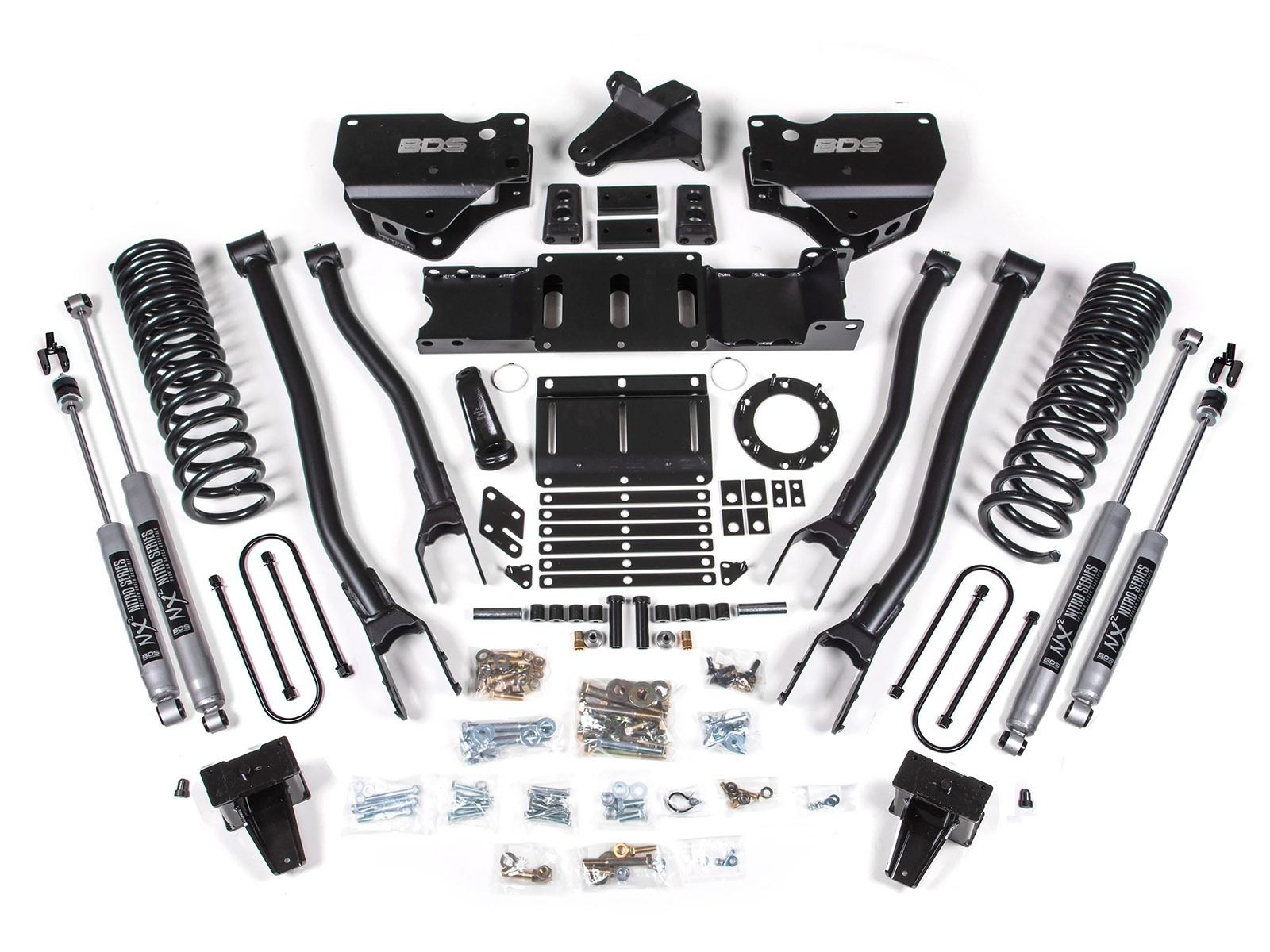

The BDS Suspension BDS1694H / BDS1695H 5.5-inch 4-link lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37-inch tires. The design for these kits starts with two massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required. Designed to both improve performance and looks, improving strength and handling on/off-road. Coil springs provide extra height and smooth, controlled performance in the harshest of terrains. A forged drop pitman arm corrects steering angles along with an HD bar drop bracket in order to re-center the front axle. Sway bar drop brackets reposition the OE sway bar, optimizing performance along with extended polyurethane bump stops, limiting up travel and brake line brackets, allowing full suspension droop.

At 5.5" of lift, correcting the front driveline angle is critical to maintaining the use of the 4WD. To accomplish this, BDS Suspension provides a heavy-duty replacement transmission cross member as well as a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

In the rear of the RAM 3500 kits, a 5" block and u-bolt kit for a level-to-slightly tail high while maintaining tow capacity.

To improve ride quality and performance, you can choose BDS NX2 gas shocks, Fox 2.0 Performance Series IFP gas shocks, or 2.5 Performance Elite remote reservoir adjustable shocks. Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Features and Benefits:

• 5.5-inch front lift, 5-inch rear lift
• Allows use of up to 37 inch diameter tires
• 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 8 hours
• Choose from BDS NX2, Fox 2.0 Performance or Fox 2.5 Performance Elite Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.5 inch tires w/ 17 inch x 9 and 5.625 inch backspacing
• Fits a 37 inch x 12.5 inch tires w/ 18 inch x 9 and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
