4" 2019-2024 Dodge Ram 3500 4WD (w/gas engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1700H
From $2,016.42 Regular Price $2,122.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

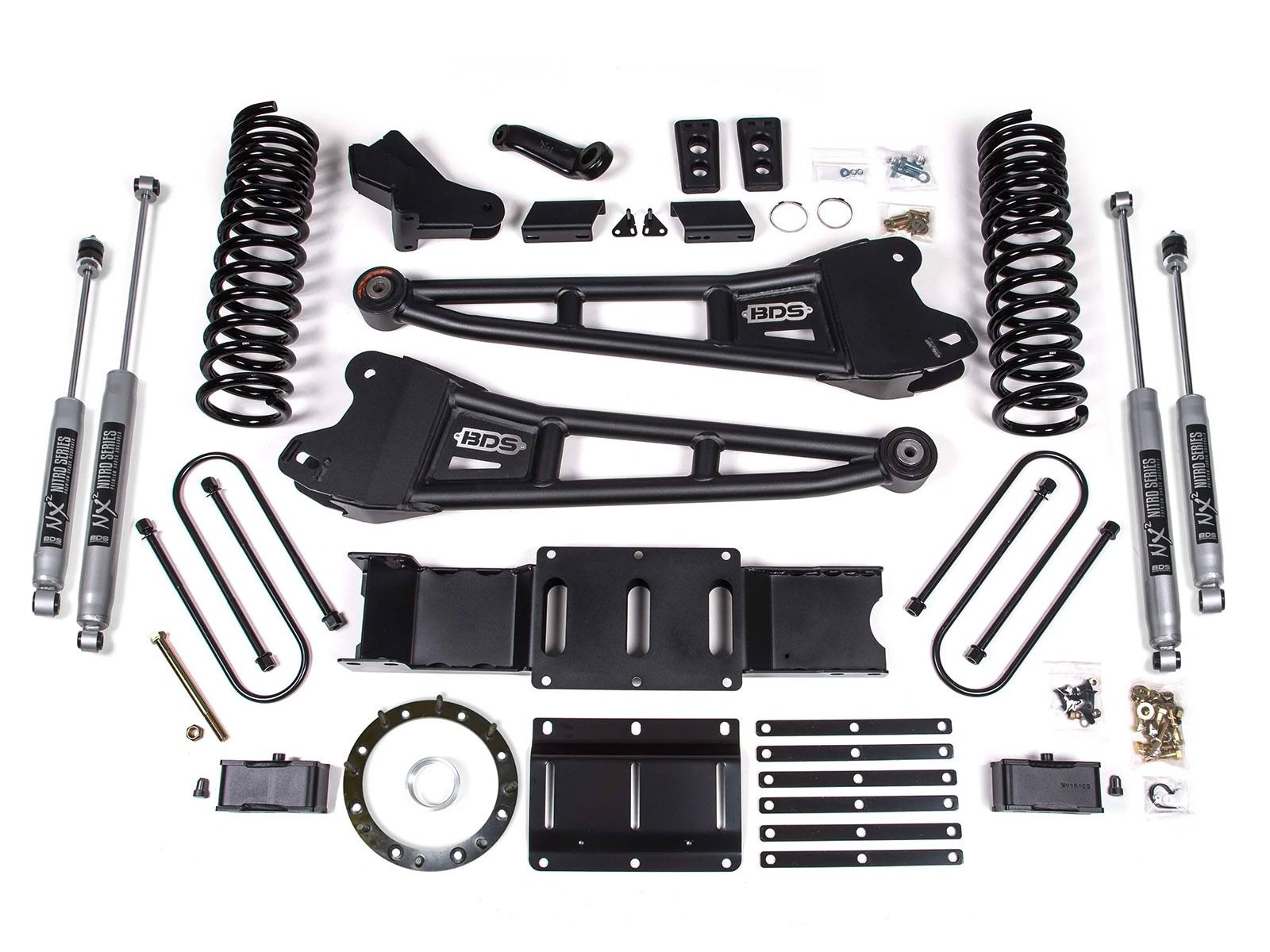

The BDS Suspension BDS1700H 4-inch radius arm lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37-inch tires. This kit features heavy-duty radius arms that replace factory-stamped steel radius arms. These arms bolt directly in the OEM position and correct the suspension geometry. Coil springs provide extra height and smooth, controlled performance in the harshest of terrains. A forged drop pitman arm corrects steering angles along with an HD bar drop bracket in order to re-center the front axle. Sway bar drop brackets reposition the OE sway bar, optimizing performance along with extended polyurethane bump stops, limiting up travel and brake line brackets, allowing full suspension droop.

At 4" of lift, correcting the front driveline angle is critical to maintaining the use of the 4WD. To accomplish this, BDS Suspension provides a heavy-duty replacement transmission cross member as well as a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

The RAM 3500 kits' rear includes a 3-inch block and u-bolt kit for a level-to-slightly high tail high while maintaining tow capacity. A matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks completes the rear.

Features and Benefits:

  • 4-inch front lift, 3-inch rear lift
  • Allows use of up to 37 inch diameter tires
  • Heavy duty replacement radius arms
  • Premium quality components
  • Progressive Rate Front Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Average install time: 7-8 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.5 inch tires w/ 17/18/20 inch x 9 and 5.625 inch backspacing
  • Fits a 35 inch x 12.5 inch tires w/ 18/18/20 inch x 9 and 4.5 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
2. A DEF tank relocation bracket BDS122409 is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
3. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Vehicle Fitment
MakeDodge
ModelRam 3500
Year Fitment2024, 2023, 2022, 2021, 2020, 2019
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1700H
Item Numberbds_bds1700h
MPN(UPC)840416407389
Product LineLift Kits
Lift Height4 inch
EngineGas
