6" 2019-2022 Dodge Ram 3500 4wd (w/Diesel Engine & Factory Rear Air-Ride) 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1732H
As low as $2,559.24 Regular Price $2,843.60

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

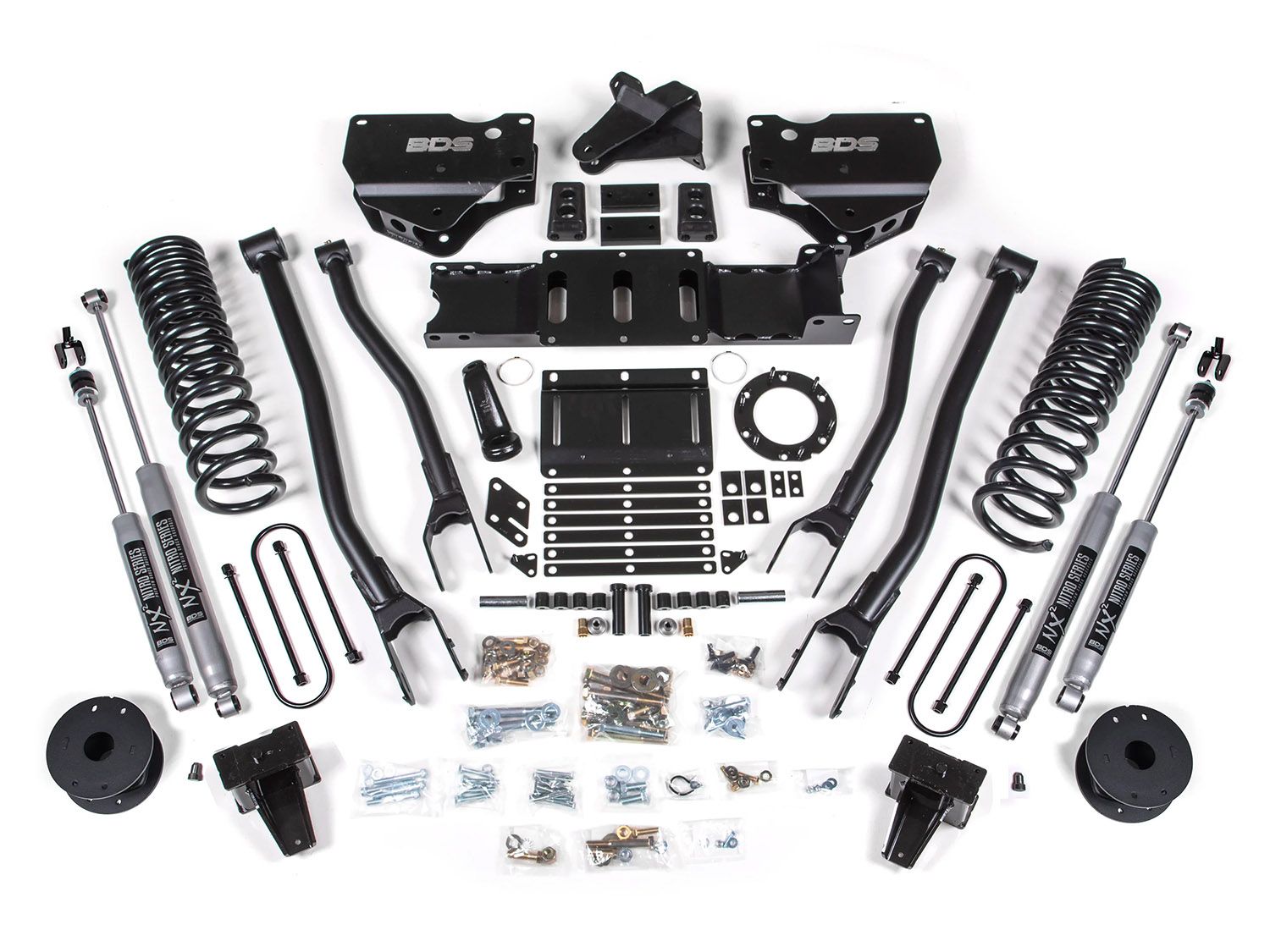

The BDS 1732H 6 inch 4-Link lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37 inch tires. This kit retains full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck. The factory stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. These kits retain full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck. Up front this system utilizes a pair of progressive rate 6" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop.

Your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 6" of suspension lift it is critical to correct the front driveline angle in order to maintain the use of the 4WD capabilities. To achieve this BDS suspension provides replacement transmission crossmember as well as a transfer case indexing ring to repositon the front driveline output, allowing use of the factory drivelines.

In the rear, 5" blocks and u-bolts are supplied to lift and level the stance along with heavy duty air bag spacer brackets. BDS maintains air ride leveling sensors by repositioning them with brackets included in the kit.

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • 4-Link upgrade improves handling and performance
  • Premium quality components
  • Progressive Rate Front Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Average install time: 7-8 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.5 inch tires w/18/20 inch x 9 and 5.625 inch backspacing
  • Fits a 37 inch x 12.50 inch tires w/20 inch x 9 and 4.5 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Does NOT fit power wagon
  • For OE Rear Air Assist only
  • Does not fit mega cab dually
  • T-case indexing required check vehicle before ordering
  • Does not fit cab and chassis models
  • If vehicle is equipped with 2 piece rear driveshaft BDS122406
  • Does not fit DRW models with 8-bolt transmission (Aisin)
  • Fits vehicles with Rear Air Ride only
  • Vehicle Fitment
    MakeDodge
    ModelRam 3500
    Year Fitment2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1732H
    Item Numberbds_1732h
    Product LineLift Kits
    Lift Height6 inch
    EngineDiesel
