6.5" 2013-2018 Dodge Ram 3500 4wd (w/diesel engine) Lift Kit by Zone

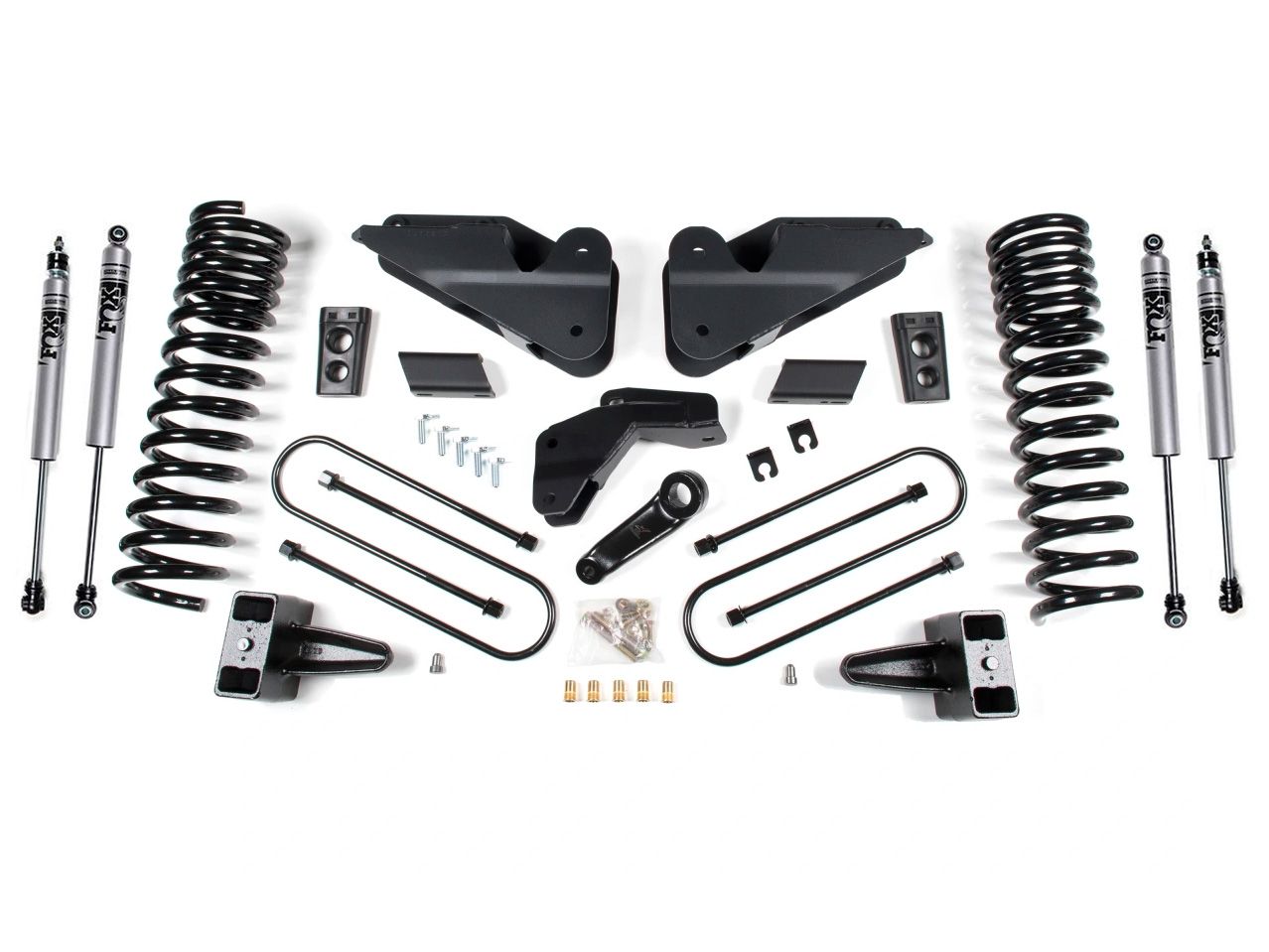

This Zone Offroad D52 6.5 inch lift kit for the Dodge Ram 3500 is an excellent suspension upgrade to allow for use of up to 37 inch tires, giving your truck a great new look. This kit utilizes heavy duty drop brackets to relocate the factory Ram radius arms. This relocation corrects the suspension geometry to compensate for the 6.5 inch of lift provided by the progressive rate coil springs. Extended bump stops, dropped pitman arm, track bar relocation and brake line relocation round out the front components. In the rear 5 inch rear lift blocks and extended ubolts are used to raise the back end to site level with the front.

Top Features

• 6.5 inch front lift / 5 inch rear lift
• Radius arm relocation brackets correct suspension geometry
• Progressive rate front coil springs
• Track bar relocation bracket keep front axle centered
• Forged drop pitman keeps proper steering angles
• Extended bump stops to keep suspension from over extending
• Rear axle lift blocks with extended ubolts
• Extended sway bar end links keep sway bar from binding
• Made in the USA
• Limited Lifetime Warranty

Recommended Tires and Wheels

• 35 x 12.5 Tires, 17 x 9 Wheels, 4.5 inch back spacing
• 37 x 12.5 Tires, 18 x 9 Wheels, 5.75 inch back spacing
• 37 x 12.5 Tires, 20 x 9 Wheels, 5.75 inch back spacing

• Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part #D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit #D5405.
• Fits Diesel models only.
