2.5" 2020-2022 Ford F450 4WD (w/diesel engine) Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1915FPE
$4532.14
- +
4532.140000

2.5" 2020-2022 Ford F450 4WD (w/diesel engine) Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1915FPE
Special Price $4,532.14 Regular Price $4,624.63

2.5" 2020-2022 Ford F450 4WD (w/diesel engine) Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1915FPE
Special Price $4,532.14 Regular Price $4,624.63


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

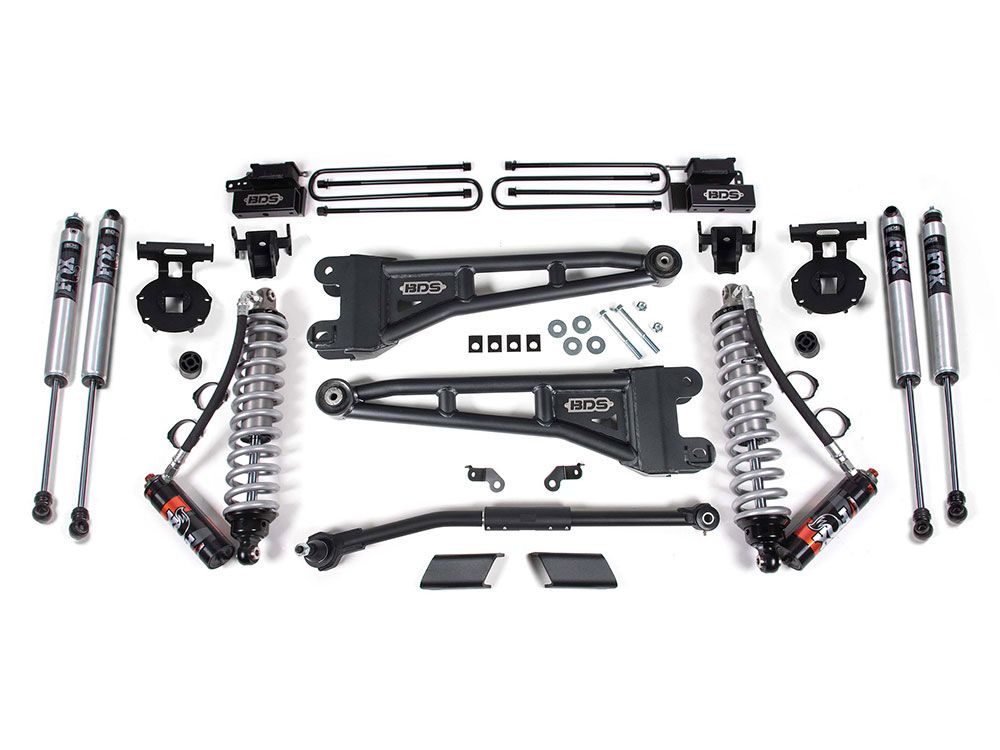

This BDS Suspension BDS1915FPE 2.5 inch coilover lift kit is the ultimate premium suspension system for the Ford F450 Super Duty trucks. Featuring Fox 2.5 Performance Elite Remote Reservior Coil-Overs with DSC (dual speed compression) adjustments to fine tune your ride with the turn of a dial. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. The front axle remains centered with the use a of heavy duty adjustable track bar. Sway bar drop brackets keep the factory bar from binding.

1" bolt-on lift block and new black e-coated u-bolts to level stance while retaining the factory rear springs for ride quality and tow capacity

Top Features and Benefits

  • Ultimate Premium Suspension Lift Kit for Ford F450 models
  • Fox 2.5 Performance Elite Coilovers replace factory coil springs for unmatched comfort and performance
  • Coilovers feature DSC (dual speed compression) to allow fine tuning of your ride with the turn of a dial
  • 2.5 inch ProRide Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maxium clearance
  • Rear Fox 2.0 Performance Shocks
  • Allows use of up to 35 inch tires
  • Average Install Time: 5 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • Front Wheel 35" x 12.50" w/20 x 8.25 and 8.76" back spacing
  • Rear Outer 35" x 12.50" w/20 x 8.25 and -3.33" back spacing
  • Rear Inner 35" x 12.50" w/20 x 8.25 and 9.11" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
2. Larger tires on stock wheels are not recommended due to brakeline clearance required. Use recommended specifications listed in tire and wheel fitment section.
3. Track bar mounting hardware requires torque spec of 405 ft-lbs .
Vehicle Fitment
MakeFord
ModelF450
Year Fitment2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1915FPE
Item Numberbds_bds1915fpe
Product LineLift Kits
Lift Height2 inch
