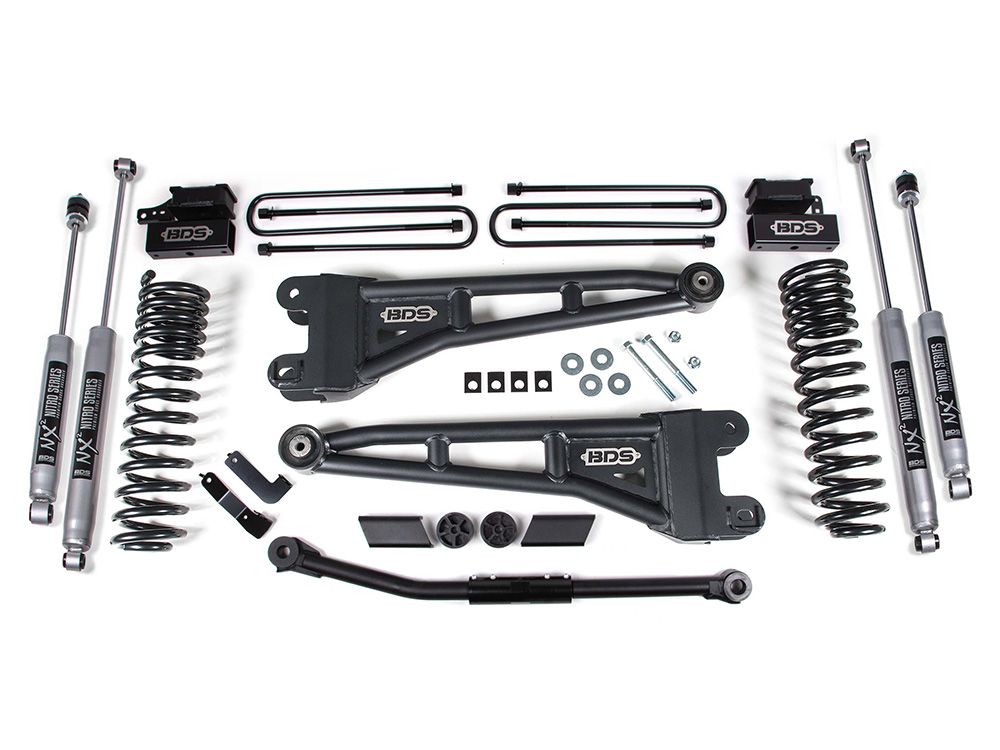

2.5" 2020-2022 Ford F450 4WD Radius Arm Lift Kit by BDS Suspension

The BDS Suspension BDS1915FS / BDS1915H / BDS2219FPE 2.5 lift kit is a great method to lift your Ford F450 to allow for the use of up to 35-inch diameter tires. Built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance, and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 2.5 inches while maintaining performance and ride quality. The front axle remains centered with the use a heavy duty adjustable track bar. Also included for the front suspension are a pair of sway bar relocation brackets.

In the rear, a pair of 1-inch lift blocks, along with e-coated extended u-bolts, raise the back end.

Features and Benefits:

• 2.5 inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• Adjustable front track bar to center axle
• High clearance radius arms for maximum clearance
• Choose between BDS NX2 Nitro Gas, Fox 2.0 Performance Shocks or Fox 2.5 Performance Elite Shocks
• Allows use of up to 35 inch tires
• Average Install Time: 5 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire and Wheel Combinations

• Front Wheel 35" x 12.50" w/20 x 8.25 and 8.76" back spacing
• Rear Outer 35" x 12.50" w/20 x 8.25 and -3.33" back spacing
• Rear Inner 35" x 12.50" w/20 x 8.25 and 9.11" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
