5.5" 2013-2018 Dodge Ram 3500 (w/Gas Engine & w/o Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS2105H / BDS2105FS
$1880.61
- +
1880.61

5.5" 2013-2018 Dodge Ram 3500 (w/Gas Engine & w/o Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2105H / BDS2105FS
From $1,880.61 Regular Price $1,979.59

5.5" 2013-2018 Dodge Ram 3500 (w/Gas Engine & w/o Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2105H / BDS2105FS
From $1,880.61 Regular Price $1,979.59


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

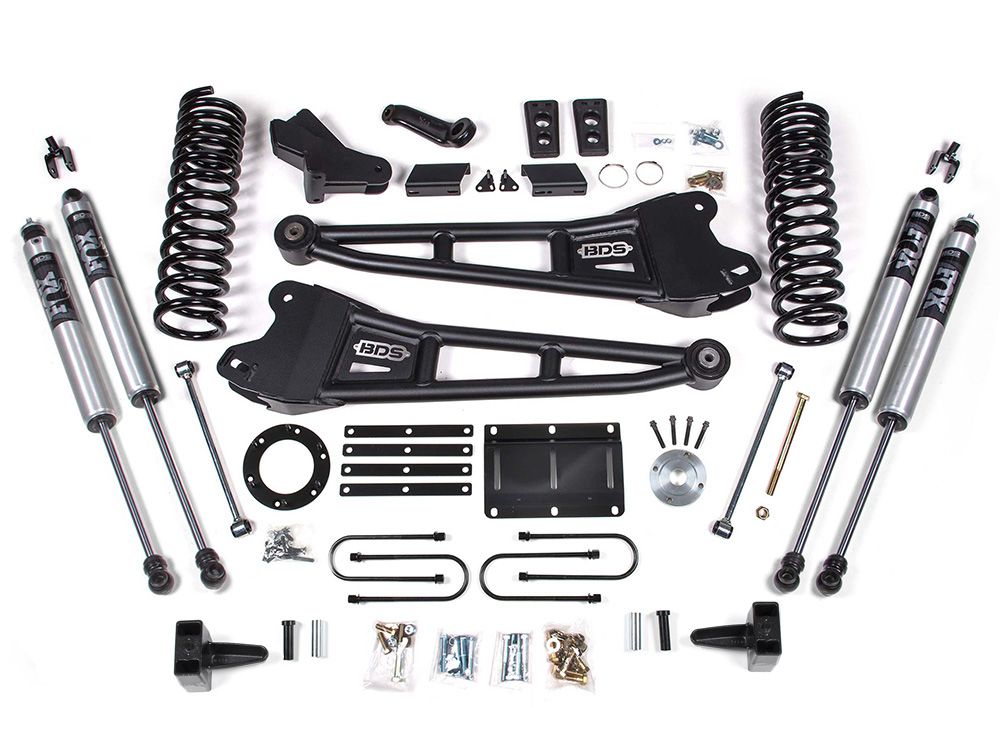

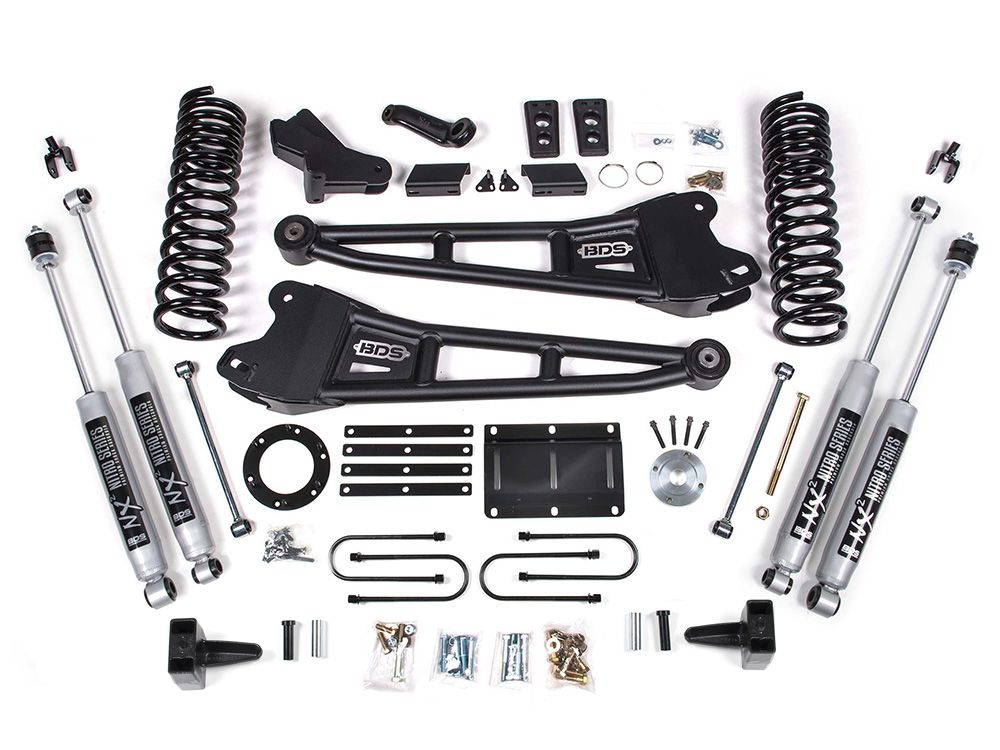

The BDS Suspension BDS2105H 5.5 inch Radius Arm lift kit for the Dodge Ram 3500 is an awesome way to upgrade your suspension and fit up to 37 inch tires. Up front this system utilizes a pair of progressive rate 5.5" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

Your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

In the rear, 5" blocks and u-bolts are supplied to lift and level the stance.

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • Radius Arm upgrade improves handling
  • Premium quality components
  • Progressive Rate Front Pro-Ride Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Average install time: 6-7 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.50 inch tires w/17 inch x 9 and 5.625 inch backspacing (trimming may be required)
  • Fits a 37 inch x 12.50 inch tires w/18 inch x 9 and 4.5 inch backspacing (trimming may be required)
  • Fits a 37 inch x 12.50 inch tires w/17 inch x 9 and 4.5 inch backspacing (trimming may be required)

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Kits come standard with 6-Bolt indexing ring kit. If equipped with heavy-duty 8-bolt t-case order 122813 in place of 122623
2. For rear leaf spring equipped models only.
3. The carrier bearing drop (122405) is necessary for models equipped with two piece rear drive shaft.
4. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
5. Will not fit Cab and Chassis models
6. Not for use with factory rear airbag suspensions
Vehicle Fitment
MakeDodge
ModelRam 3500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS2105H / BDS2105FS
Item Numberbds_bds2105h
Product LineLift Kits
Lift Height5.5 inch
EngineGas
