3" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS2200H / BDS2200FS
$1621.31
- +
1621.31

3" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2200H / BDS2200FS
From $1,621.31 Regular Price $1,706.64

3" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2200H / BDS2200FS
From $1,621.31 Regular Price $1,706.64


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

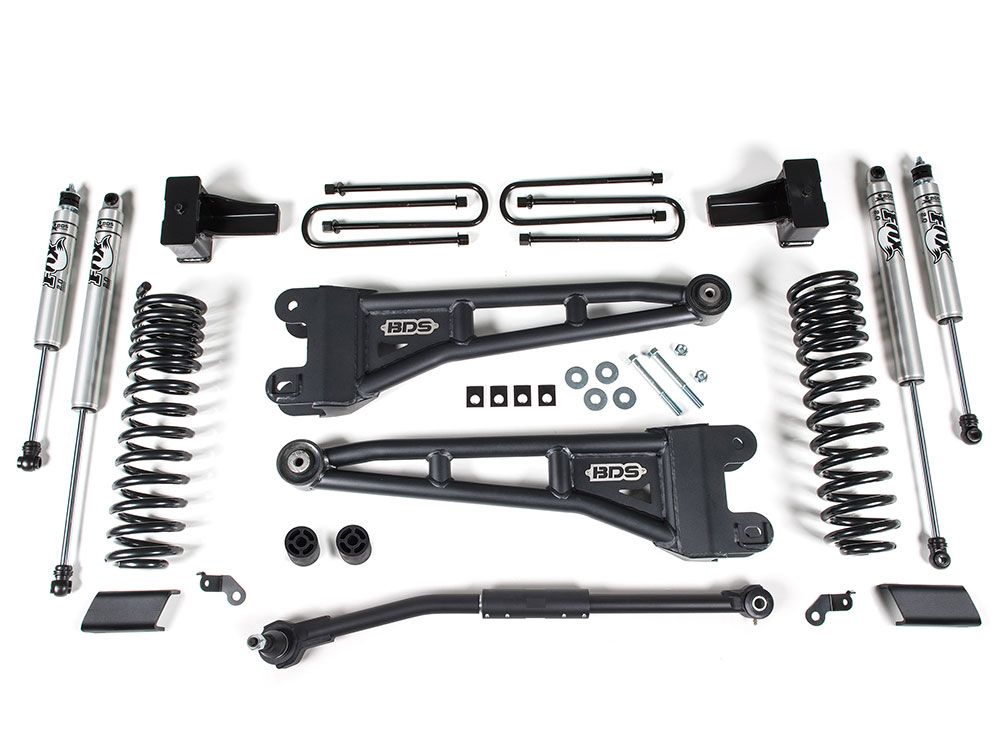

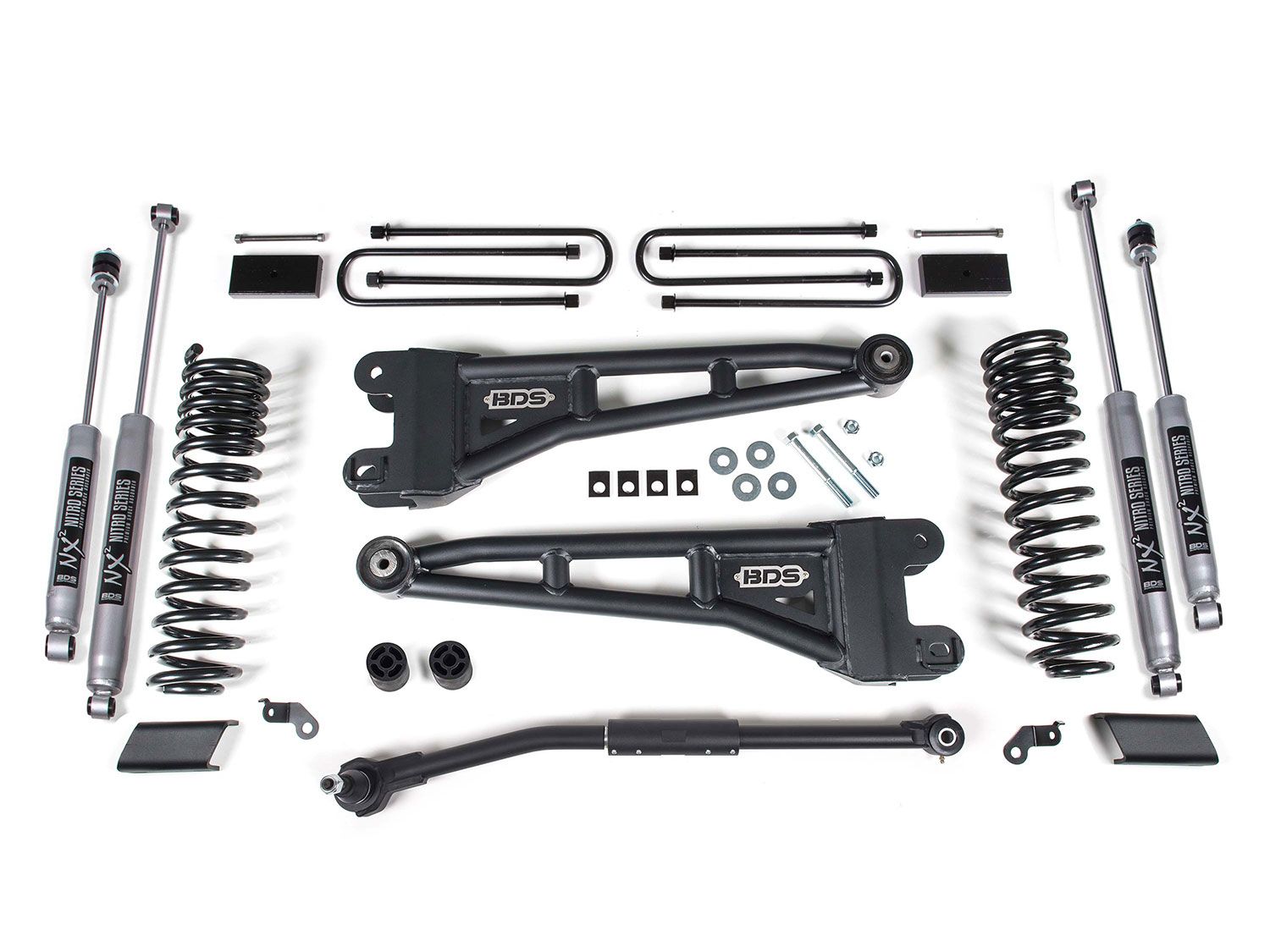

The BDS Suspension BDS2200H / BDS2200FS 3 inch lift kit is an great method to lift your Ford F250 / F350 to allow for use of up to 35 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 3 inches while maintaining performance and ride quality. The front axle remains centered with the use a heavy duty adjustable track bar. Also included for the front suspension are a pair of sway bar relocation brackets.

In the rear a pair of 1 inch lift blocks along with e-coated extended u-bolts raise the back end.

Features and Benefits:

  • 3 inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • Adjustable front track bar to center axle
  • High clearance radius arms for maximum clearance
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 35 inch tires
  • Average Install Time: 5 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 35" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
  • Fits 35" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 35" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

ProRide Dual Rate Coil Springs
This kit includes the BDS ProRide Dual Rate Coil Springs. Designed to not only lift your vehicle, but also improve ride and overall performance. Featuring a softer intial spring rate over factory springs for a smooth on-road ride. The firm secondary rate gives more stability in harsh terrain.
Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

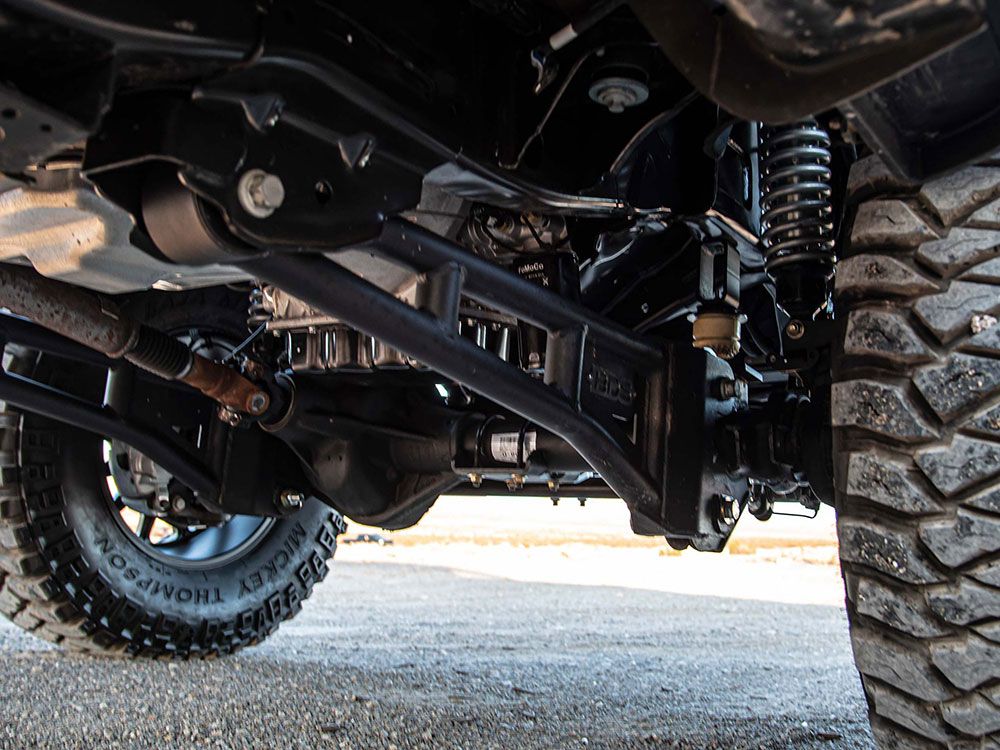

Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!
Important Notes1. Designed for use on diesel models but can be installed on gas trucks. Will achieve an additional 3/4" front ride height.
2. Installation requires a torque wrench capable of 406 ft-lbs.
3. Due to taller factory ride height, Tremor models will not net full advertised lift height. The final ride height will be the same as standard models.
4.. Larger tires on stock wheels are not recommended due to interference with the brake line, radius arm, and sway bar. Use the recommended specs listed in the wheel and tire fitment section.
5. Trucks without top-mounted overload springs will require (x4) UBT4031 bolts available to purchase separately.
6. Trucks equipped with radius arm mounted ride height sensors (onboard scales) require SKU 123303.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2024, 2023
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS2200H / BDS2200FS
Item Numberbds_bds2200h
Product LineLift Kits
Lift Height3 inch
