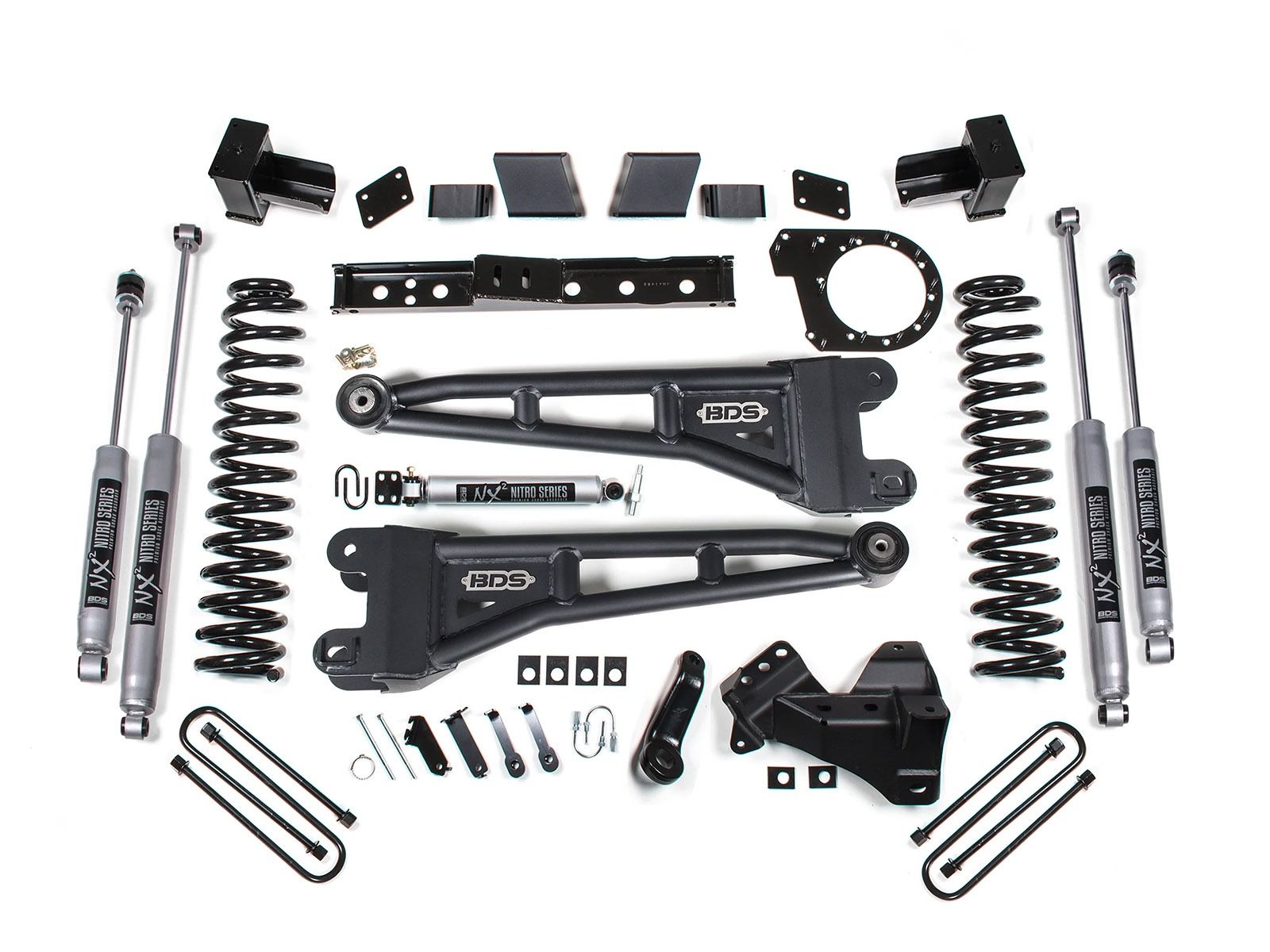

7" 2023-2026 Ford F250/F350 (w/diesel engine) 4WD Radius Arm Lift Kit by BDS Suspension

The BDS Suspension BDS2258H / BDS2258FS 7-inch lift kit is an excellent method to lift your Ford F250 / F350 4WD truck to allow for up to 38-inch diameter tires. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. It features a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm and a supplied integrated drag link flip correct steering angles. The front axle remains centered using a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by lift blocks that feature integrated bump stop wings and e-coated extended u-bolts. Or choose to upgrade to BDS Glide-Ride rear leaf springs for better traction control.

You can choose BDS NX2 Niro Gas (2-inch steel body), Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body) to improve ride quality and performance. Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

All possible SKUs depending on options selected: BDS2258H BDS2258FS BDS2258PS BDS2258FPE BDS2259H BDS2259FS BDS2259PS BDS2259FPE

Features and Benefits:

• 7-inch Pro-Ride Coil Springs feature a smooth ride and top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose from BDS NX2 Nitro Gas Shocks (2-inch steel body), Fox 2.0 Performance Shocks (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 38-inch tires
• Average Install Time: 6 to 8 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 38" x 13.50" tires w/17 x 10 and 5" backspacing (trimming may be required)
• Fits 38" x 13.50" tires w/18 x 10 and 5" backspacing (trimming may be required)
• Fits 38" x 13.50" tires w/20 x 10 and 5" backspacing (trimming may be required)

Shock Options

• BDS NX2 Nitro Gas: Twin-tube nitro charged gas design, 2" steel body with silver powder coating
• FOX 2.0 Performance Series: 2" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Race-developed high-flow piston design with application-specific valving
• FOX 2.5 Performance Series HTO: 2.5" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
• FOX 2.5 Performance Elite: 2.5" impact extruded aluminum body, External Reservoir, 7/8-inch diameter piston rod, DSC - Dual Speed Compression Adjuster to fine-tune ride quality

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info
